Oblong Implants

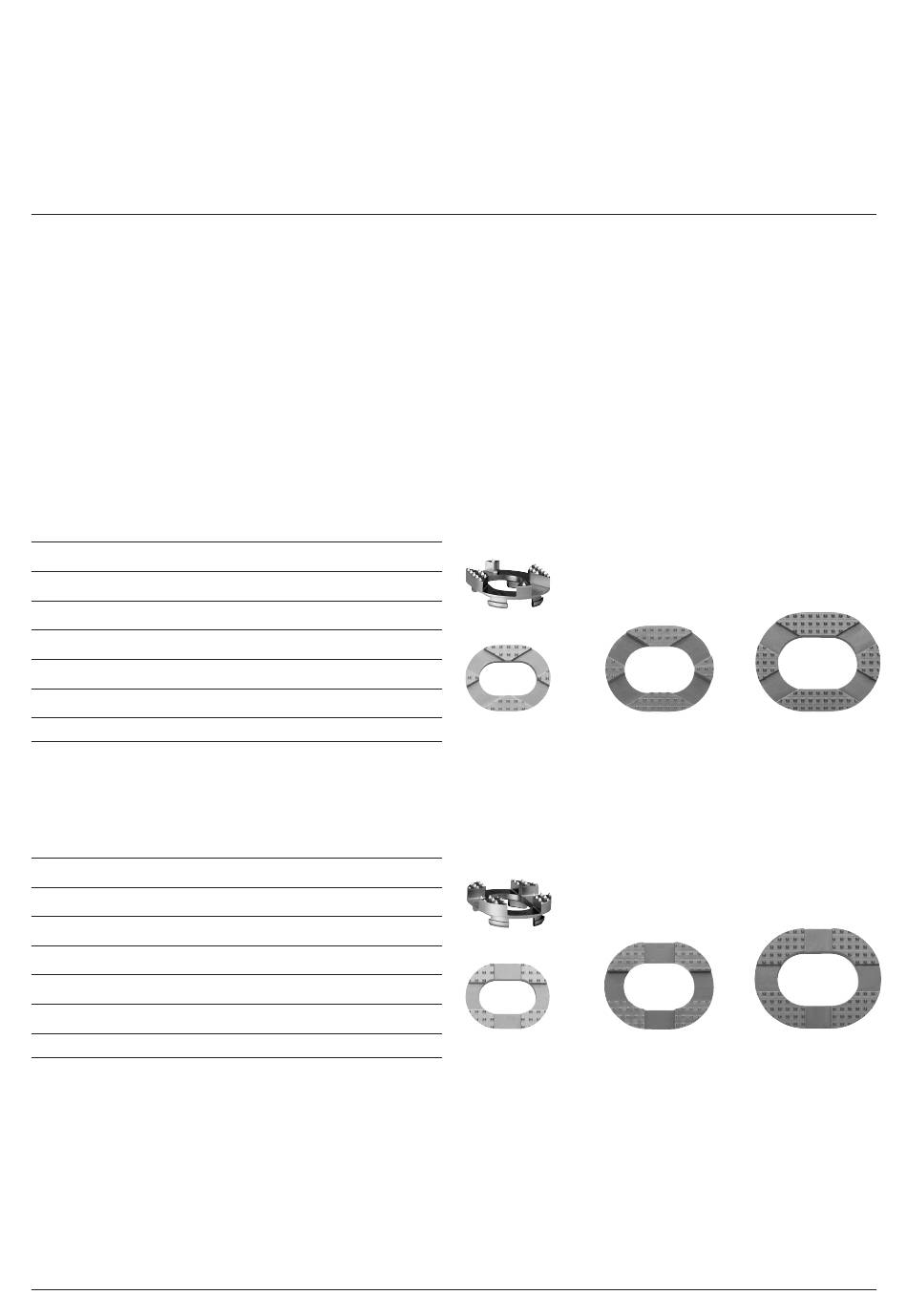

End Rings, oblong
• Two fastening mechanisms available: press fit or with
locking screw
• Angles of 0° or 5°
• Different configurations feature slots for anterolateral,
lateral or anterior insertion under distraction
• Each end ring increases the overall height of the
implant by 3.5 mm (see step 3 of the Surgical technique)
End Rings, oblong, press fit*
Anterolateral end rings
Art. No. Dimensions
495.391 17 × 22 mm
495.393 17 × 22 mm
495.395 22 × 28 mm
495.397 22 × 28 mm
495.399 26 × 33 mm
495.402 26 × 33 mm
Lateral or anterior end rings
Art. No. Dimensions
495.392 17 × 22 mm
495.394 17 × 22 mm
495.396 22 × 28 mm
495.398 22 × 28 mm
495.401 26 × 33 mm
495.403 26 × 33 mm
*No locking screw needed
