- Page 1 ComPact Air Drive II USER’S MANUAL Original Instruments and Implants of the Association for the Study of Internal Fixation— AO ASIF...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page ComPact Air Drive II Specifications ....2 Attachments ............3 Operating Instructions........4 Quick Coupling for K-Wires......6 Quick Coupling for drill bits ...... 7 Large Quick Coupling........7 Reduction Drive Unit ........8 Jacobs Chuck with Key......9 Care and Maintenance ........ -
Page 3: Compact Air Drive Ii Specifications

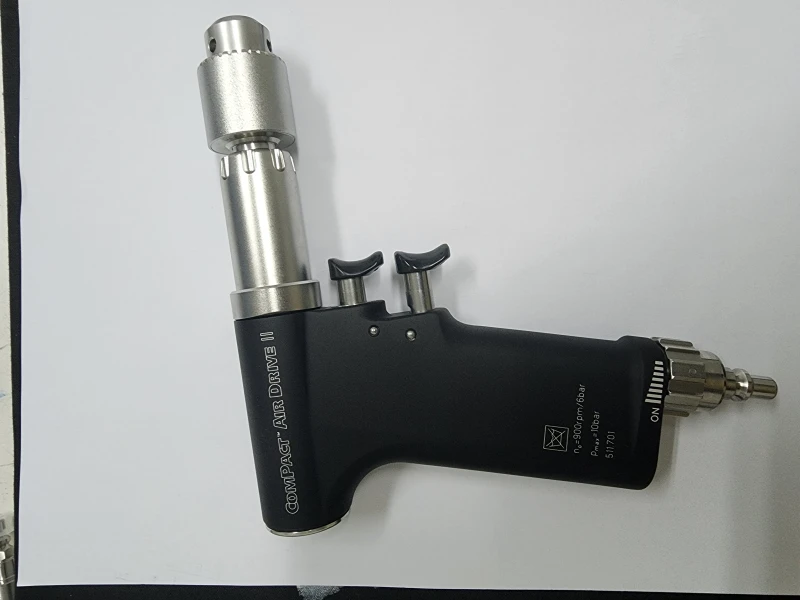

ComPact Air Drive II Specifications • Variable speed: 0–900 rpm • Maximum torque: 4.0 Nm (35 in-lb) • Operating pressure (with machine running): 6 bar (90 psi) • Air consumption: 250 lpm (liters per minute) • Weight: 780 gm (27.5 oz) •... -
Page 4: Attachments
Attachments Quick Coupling for K-wires [511.79] • For insertion of K-wires from 0.6 mm to 3.2 mm in diameter • Allows use of any length K-wire 511.79 Quick Coupling for drill bits [511.75] • Accepts quick coupling drill bits • Allows use of Oscillating Drill Attachment [511.20] and Radiolucent Drive [511.30] 511.75 Large Quick Coupling [511.761]... -
Page 5: Operating Instructions
Operating Instructions ASSEMBLY/DISASSEMBLY To connect the air hose to the ComPact Air Drive II: Retract the hose coupling collar. Insert the air drive coupling stem completely into the hose coupling. Release the hose coupling collar to secure the connection. To disconnect the air hose from the... -
Page 6: Speed Control
• Use only dry, filtered compressed air or nitrogen • Be sure that all attachments and instruments are inserted securely before operating the to power the ComPact Air Drive II. Never operate air drive. air powered machines with oxygen; it creates a danger of fire and explosion. -
Page 7: Quick Coupling For K-Wires
Operating Instructions (continued) Quick Coupling for K-wires [511.79] For insertion of K-wires from 0.6 mm to 3.2 mm diameter. See page 4 for installation and removal Sleeve Dial of attachments. Lever IMPORTANT 511.79 To prevent injuries, the air control valve should always be turned to the “off”... -
Page 8: Quick Coupling For Drill Bits
Quick Coupling for Drill Bits [511.75] • Accepts quick coupling drill bits and screw- driver shafts 511.75 • Allows use of Oscillating Drill Attachment [511.20] and Radiolucent Drive [511.30] To insert an instrument into the Quick Coupling for Drill Bits: Push the collar of the Quick Coupling forward and insert the instrument shaft completely with a slight rotation. -
Page 9: Reduction Drive Unit
Operating Instructions (continued) Reduction Drive Unit [511.785] • For intramedullary and acetabular reaming • Allows intramedullary reaming with flexible 511.785 shafts and reaming rods • Automatic locking of reverse trigger prevents damage to flexible shafts See page 4 for installation and removal of attachments. -
Page 10: Jacobs Chuck With Key
Jacobs Chuck with Key [511.73] Accommodates instruments, K-wires and Steinmann pins with round shafts from 1.0 mm to 6.0 mm, or triangular shafts up to 6.5 mm. 511.73 See page 4 for installation and removal of attachments. To insert an instrument: Open the chuck jaws by turning the key counterclockwise, or by manually turning the parts as shown. -
Page 11: Care And Maintenance
Care and Maintenance IMPORTANT • Clean the drive unit, attachments and air • Before cleaning and sterilization, remove hose by hand; never immerse or clean in an attachments, instruments and hose from automatic washer or ultrasonic cleaner. the air drive unit. •... - Page 12 Retract and clean quick coupling hose end with a soft brush and mild cleaning solution. Do not allow water to enter the air inlet. Clean hose with a mild cleaning solution and a soft brush or cloth. Keep hose ends out of water. Dry all instrumentation with a soft cloth.
- Page 13 Care and Maintenance (continued) Lubricate the ComPact Air Drive II and attachments after every cleaning and before sterilization. Use SYNTHES Autoclavable Oil [519.97]. LUBRICATING Open air control valve before lubrication. Apply approximately five drops of Autoclavable Oil into the air intake of the drive unit.
- Page 14 Lubricate all moving parts of the attachments with one to two drops of oil. Operate the parts to distribute the oil.Wipe off excess oil. Lubricate the quick coupling hose end with one to two drops of oil.
-
Page 15: Sterilization
Sterilization To sterilize air powered equipment and air hoses: • If the handpiece is new, remove the plastic stopper in the nitrogen inlet. • Disassemble all parts including hoses, attachments, adaptors and instruments. • All air powered equipment should be steam sterilized in accordance with the following guidelines: Minimum... -
Page 16: Troubleshooting
K-wire Important: Turn air control valve to the “off ” position If suggested solutions are unsuccessful, call the Synthes Service Department at 1-800-288-6698 for servicing information. Annual servicing by qualified SYNTHES personnel is recommended. -
Page 17: Product Information
ComPact Air Drive II Set [150.16] Set Contents 304.010 Graphic Case for ComPact Air Drive II 511.701 ComPact Air Drive II Also Available 519.97 Autoclavable Oil 519.98 Spare Container with Autoclavable Oil 519. 40 Cleaning Brush Double Air Hoses, with SYNTHES stem: Attachments 519.50... - Page 18 Also Available 511.20 Oscillating Drill Attachment Keyless 511.30 Radiolucent Drive Oscillating Jacobs Chuck Drill Attachment 511.731 Keyless Jacobs Chuck 511.731 511.20 511.782 Hudson Adaptor 511.783 Modified Trinkle Adaptor 511.784 Trinkle Adaptor 511.80 Oscillating Saw Attachment 511.801 Oscillating Saw Attachment II Radiolucent Drive 511.902 Reciprocating Saw Attachment...
- Page 19 To order: 1-800-668-1119 Original Instruments and Implants of the Association for the Study of Internal Fixation— AO ASIF © SYNTHES (USA) 1997 DHS, DCS, SYNTHES and ASIF are registered trademarks of SYNTHES (USA) and SYNTHES AG Chur. Printed in U.S.A. GP0741-C 4/03...
