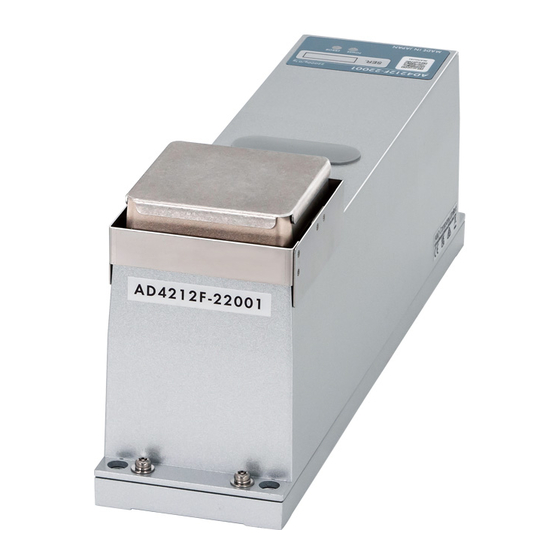

AND AD-4212F Series Instruction Manual
  1. Manuals
  2. Brands
  3. AND Manuals
  4. Scales
  5. AD-4212F Series
  6. Instruction manual

AND AD-4212F Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

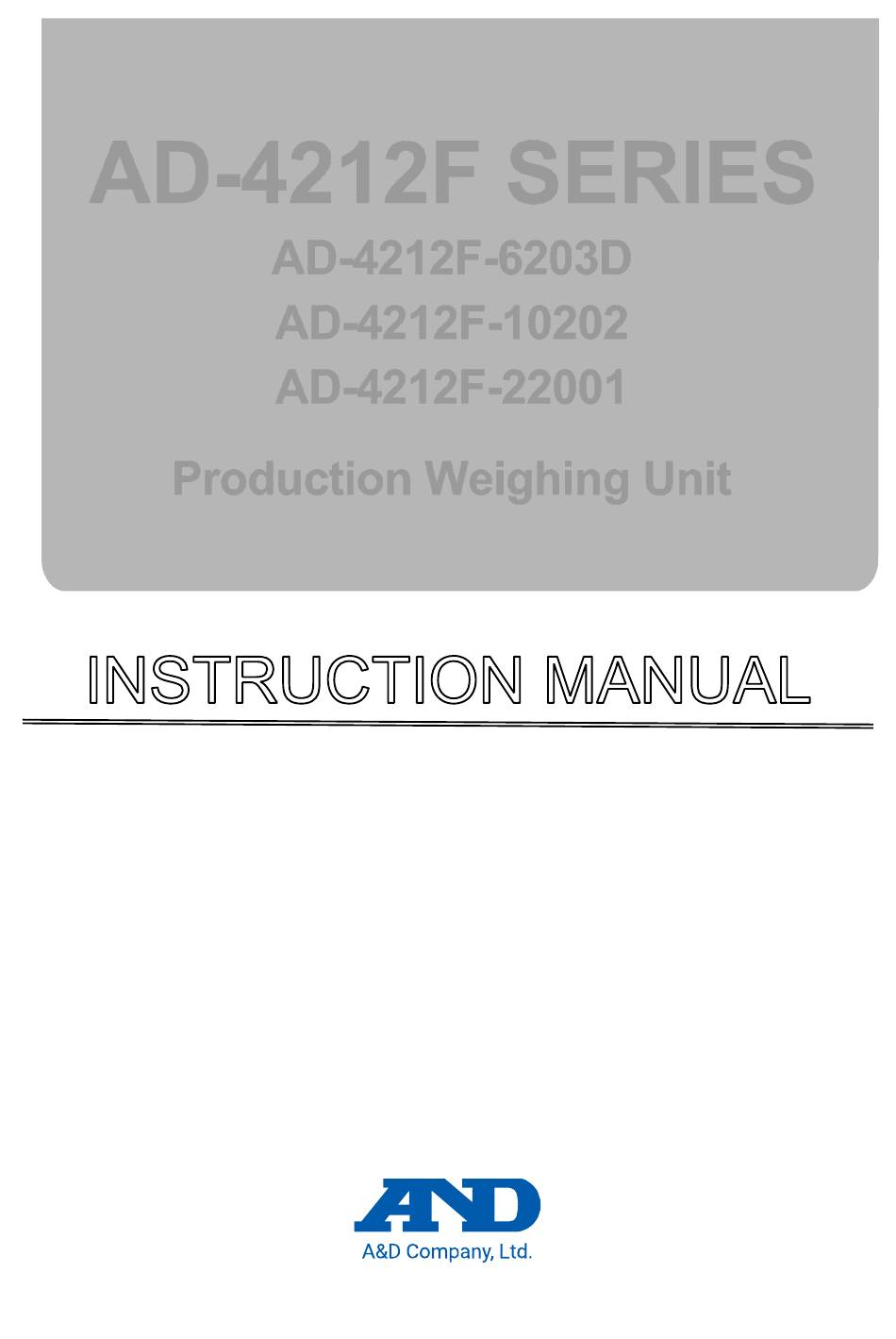

AD-4212F SERIES
AD-4212F-6203D
AD-4212F-10202
AD-4212F-22001
Production Weighing Unit
1WMPD4004727A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-4212F Series and is the answer not in the manual?

Questions and answers

Related Manuals for AND AD-4212F Series

Summary of Contents for AND AD-4212F Series

  • Page 1 AD-4212F SERIES AD-4212F-6203D AD-4212F-10202 AD-4212F-22001 Production Weighing Unit 1WMPD4004727A...
  • Page 2 (3) Please contact A&D if you notice any uncertainty, errors, omissions, etc. in this manual. (4) A&D bears no liability for any loss or lost profits due to the operation of this product, and for direct, indirect, special, or consequential damages resulting from any defect in this product or this manual, even if advised of the possibility of such damage.

  • Page 3: Table Of Contents

    Mass of exclusive weighing pans created by customers ..........12 2-1-2. Attaching the weighing unit directly on the mounting base ..........14 2-2. Precautions before use (Installation considerations and preparation) ....... 15 2-3. Precautions when incorporating into a system ..............16 2-4.
  • Page 4 7-1. Care ............................71 Troubleshooting .......................... 72 8-1. Checking the weighing unit performance and environment ..........72 8-2. Asking for repair ........................73 Specifications ..........................74 9-1. External dimensions ......................... 75 Peripherals (sold separately) ..................... 76 10-1. Accessories ..........................76 10-2.

  • Page 5: Introduction

    AD-4212F-22001 22000 g 0.1 g 1.0 second (300 to 22000 g) When the stability band width is set to ±3 digits and FAST is selected in a good environment. Smart range (Refer to "4. Smart Range Function".) The weighing unit outputs digital data directly via an RS-232C or RS-485 interface. That enables it to be connected directly to a personal computer (PC) or programmable logic controller (PLC).
  • Page 6 Example 1 (Connecting to a PC or remote controller AD-8922A) Data communication software “WinCT-AD4212F” The weighing unit USB port USB converter RS-232C cable (accessory: AX-USB-9P-EX) (accessory: AX-KO3590-1000) -------------------------------------------------------------------------------------------------------------------------------------------- Data communication software “WinCT” AD-8922A Communication cable AX-KO1786-200 The weighing unit USB port RS-232C cable USB converter (accessory: AX-KO3590-1000)
  • Page 7 To connect more than one weighing unit in a daisy chain, an RS-485 interface for daisy chain (accessory AD4212F-29, sold separately) is required for each unit. Refer to “6-2. RS-485” for installation of the RS-485 interface for daisy chain, daisy-chaining connection, and AC adapter connection. -------------------------------------------------------------------------------------------------------------------------------------------- AD-8922A-01 connection cable* The weighing unit...
  • Page 8 RS-232C cable AD-8923-CC (accessory: AX-KO3590-1000) The weighing unit CC-Link network Other remote station, etc. -------------------------------------------------------------------------------------------------------------------------------------------- RS-485 cable (Please prepare this cable yourself.) AD-8551R The weighing unit Other device, etc. RS-232C cable (accessory: AX-KO3590-1000) -------------------------------------------------------------------------------------------------------------------------------------------- RS-232C cable (accessory: AX-KO3590-1000) AD-8552EIP The weighing unit Other device, etc.

  • Page 9: Compliance

    Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of Class A digital devices pursuant to Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when equipment is operated in a commercial environment.

  • Page 10: Part Names, Installation And Precautions

    Use the specified dedicated AC adapter for the weighing unit. Use the included AC adapter, and do not connect an AC adapter that is not compatible. If you use the wrong AC adapter, the weighing unit and other devices may not work properly.

  • Page 11: Assembly And Installation

    Confirm that the AC adapter type is correct for the local voltage and power receptacle type. Plug the AC adapter plug into the AC adapter jack located on the rear of the weighing unit and plug the AC adapter into the electrical outlet. Warm up the weighing unit for at least 30 minutes with nothing on the weighing pan.

  • Page 12: Mass Of Exclusive Weighing Pans Created By Customers

    2-1-1. Mass of exclusive weighing pans created by customers The weighing pan of the AD-4212F is removable, and customers can create their own exclusive weighing pans as a jig. When designing your own exclusive jig weighing pan, note that the mass must fall within the ranges shown in the table below.
  • Page 13 To use your exclusive jig weighing pan instead of weighing at the center of the provided weighing pan, attach the jig so that the total moment of the jig and the object to be weighed is less than the value specified in the table below.

  • Page 14: Attaching The Weighing Unit Directly On The Mounting Base

    In such cases, try adjusting the levelness by inserting a shim between the bottom surface of the weighing unit and the securing surface or by using two nuts. Even if the levelness cannot be adjusted, performing...

  • Page 15: Precautions Before Use (Installation Considerations And Preparation)

    Use in an environment with as little dust and vibration as possible. In a building, places near the walls rather than the central part of a room, and places on the first floor (i.e. the ground floor) rather than the upper floors, are more suitable for weighing operations as they are less prone to vibration.

  • Page 16: Precautions When Incorporating Into A System

    Do not apply shock to the weighing pan. Be sure to ground the weighing unit. Keep the power supply line and signal line away from lines that carry large currents, such as the power supply for drive equipment. Errors due to static charge and countermeasures against those...
  • Page 17 Use a static eliminator such as the AD-1683 and perform weighing while removing static electricity. ● When the sample container is made of material that is prone to static electricity (such as plastic) (1) Cover the outside of the container with a metal such as aluminum foil.
  • Page 18 (4) earthquake-resistant structures, and (5) near tall buildings. Especially in cases (4) and (5), continuous low-frequency vibration caused by strong winds or an earthquake may persist and cause the weighing data to become unstable for a long period of time. Errors due to moving the weighing unit The performance of the weighing unit is guaranteed when it is used in a stationary condition.
  • Page 19 Avoid sudden changes in temperature or humidity as much as possible. It is advisable to use air conditioners, humidifiers, and the like to control the temperature and humidity. ● Influence of magnetic materials Influence of magnetism may cause weighing errors.

  • Page 20: Cautions During Use (For More Accurate Weighing)

    Although the weighing unit is dustproof and waterproof complying with IP65, be sure to clean and control the weighing pan and the area around the pan when weighing powders, fluids, or metal pieces.

  • Page 21: Indicator Lights

    Warning that impact has been applied to the weighing unit* Refer to "5. Impact Shock Detection Function". See below for the number of blinks and the corresponding baud rate setting, and how to count the number of blinks. Number of blinks Baud rate 600 bps...

  • Page 22: Operation Of Winct-Ad4212F

    Operation of WinCT-AD4212F Using WinCT-AD4212F enables ・ Setting and simulation of weighing speed (response characteristics) of the weighing unit ・ Setting of the readability digit ・ Sensitivity adjustment ・ Setting of the baud rate ・ Performance of self-inspection ・ Confirmation of impact history In addition, since the weighing data is logged, it is possible to check the weighing data later.
  • Page 23 When the connection between the product and WinCT-AD4212F is established, the Start button will change to the End button and the weighing data will be displayed on the display screen. Click the End button to disconnect the weighing unit from WinCT-AD4212F.
  • Page 24 Screen parts and buttons Importing weighing data By operating WinCT-AD4212F while a connection between the weighing unit and WinCT-AD4212F is established, the data output from the weighing unit can be recorded and output as text data. Weighing speed indicators Unit of measure (g)
  • Page 25 If checked, the weighing data will be recorded in the logging window. Weighing data will not be recorded if the check box is not checked. (ECL result and impact history are recorded.) Add time When checked, the time of reception will be added to the record.

  • Page 26: Sensitivity Adjustment

    Sensitivity adjustment can be performed without removing the exclusive weighing pan or jig attached to the weighing pan. (Note that the total of the exclusive weighing pan or jig and the weight used must not exceed the capacity of the weighing unit.)

  • Page 27: Sensitivity Adjustment Method

    Click the PRINT button. The zero point is measured. (The < mark is displayed on the upper left of the screen.) Do not apply vibration and the like to the weighing unit. The weight value is displayed. Place the weight on the weighing pan.
  • Page 28 When clicked with CAL 0 displayed, the weight value used for sensitivity adjustment is changed. For details, refer to "3-1-2. Changing weight value". Cancels the sensitivity adjustment and returns to weighing mode. Confirms the action and proceeds to the next step.

  • Page 29: Changing Weight Value

    Click the RE-ZERO button several times to select the weight value. Click several times Click the PRINT button. The weight value is registered and the display returns to CAL 0 . Adjust the sensitivity by following the operations from step 4 in "3-1-1. Sensitivity adjustment...
  • Page 30 Button Description Switches to standby mode. Selects a weight value. For usable weights, refer to "Table 1. Weights usable for sensitivity adjustment". Cancels the sensitivity adjustment and returns to weighing mode. Confirms the action and proceeds to the next step.

  • Page 31: Self-Check Function

    (Electronically controlled load: ECL) By controlling the internal mechanism, it is possible to create a state in which a minute load is applied to and removed from the sensor, and the repeatability of the weighing unit can be expressed numerically. Operation is possible even if a tare such as a jig is placed on the weighing pan.
  • Page 32 Refer to Repeatability (Standard deviation) in "9. Specifications". At the same time as results are displayed, the measurement results are collectively output from the weighing unit and displayed as a Log in WinCT-AD4212F. After END is displayed, the display returns to weighing mode.
  • Page 33 ˽˽˽˽˽˽˽˽˽˽˽A˽&˽D<TERM> <TERM> : Terminator, C MODEL˽˽˽˽˽˽˽˽˽˽˽<TERM> : Carriage return, ASCII 0Dh ˽˽˽AD4212F-10202<TERM> : Line feed, ASCII 0Ah S/N˽˽˽˽˽00000000<TERM> ID˽0000000000000<TERM> In the WinCT-AD4212F log recording window, ˽ (space) and <TERM> DATE˽˽2023/06/26<TERM> (terminator) are displayed blank. TIME˽˽˽˽06:33:38<TERM> RESULT˽˽˽˽˽˽˽˽˽˽<TERM> ˽1˽˽˽˽˽+40.63˽˽g<TERM> ˽2˽˽˽˽˽+40.60˽˽g<TERM> ˽3˽˽˽˽˽+40.65˽˽g<TERM> ˽4˽˽˽˽˽+40.61˽˽g<TERM>...

  • Page 34: Filter Settings

    3-3. Filter settings The weighing speed (response characteristics) of the weighing unit can be changed by setting the filter. There are two types of filters available for filter settings: "Standard settings" and "Customize". 3-3-1. Standard settings The weighing speed (response characteristics) can be set in three stages according to the disturbance such as drafts and vibration at the place where the weighing unit is installed.

  • Page 35: Customize

    [Simulation] tab". When connecting via RS-485, use "Change using the [Balance Settings] tab". (1) Change using the [Balance Settings] tab You can select parameters in WinCT-AD4212F and write them to the weighing unit to change the filter settings of the weighing unit.
  • Page 36 You can graph the simulation results of all three methods (Current settings, Simulation 1, and Simulation 2) for weighing data captured in actual weighing work. In the simulation tab, it is possible to visually examine setting values to be changed and compare weighing data changes due to parameter changes.
  • Page 37 Ends loading of weighing data. Saves the weighing unit information, parameter settings, weighing data import results, and weighing data for each method in CSV format. Loads the CSV file saved with the save button. By using the loaded weighing data, you can use previously acquired weighing data and parameter settings.
  • Page 38 Step 10. Set buttons Step 8. Parameter selection Step 2. Start button Step 8. Method check Step 1. Select port Step 3. RE-ZERO button Step 9. Change the display range of the graph Step 4. Start logging button Step 7. End logging button...
  • Page 39 Select the port to connect to. Click the Start button. The parameters of the weighing unit are read out and the weighing data is displayed on the display screen. Click the RE-ZERO button if necessary to zero the display screen.
  • Page 40 (2) Stability band width and stability detect time When the weighing data is less than a certain range (stability band width) and a certain amount of time (stability detection time) has passed, it is judged to be stable. When it is judged to be stable, the WinCT- AD4212F displays a circle stabilization indicator and adds "ST"...
  • Page 41 If it is set to "Re-zero when stable for 0.2 seconds", re-zero will be executed after confirming that the weighing data has stabilized for 0.2 seconds after receiving an external instruction to re-zero. By changing the re-zero execution conditions, it is possible to change the time until re-zero is performed, and to execute re-zero even in an unstable state.
  • Page 42 (4) Averaging range Averaging starts when the change in the weighing data is within the "variation range". When the averaging width is large, such as when filling a very small amount, the response may be slow because the averaging range is not exceeded. In that case, reducing the averaging range can speed up the response at very small amounts.
  • Page 43 (5) Averaging time Averaging starts when the change in weighing data falls within the "variation range", and when the and when averaging is performed until the "averaging time", the data subsequently becomes a moving average. This setting allows you to set the maximum time for averaging.
  • Page 44 600.00 500.00 400.00 300.00 Since the change in the weighing value is 200.00 large, averaging is not performed and there is no difference due to the averaging time. 100.00 0.00 Time (sec) Expansion Change Averaging Time (Expansion around 500 g) 0.5 second...
  • Page 45 If you want to increase the weighing speed (response characteristics), set a smaller setting value. If stability is more important than weighing speed (response characteristics), set a larger value.  Setting value Digital filter Weighing speed Stability Susceptible to vibration and Delay approx. 0.20 seconds* Fast drafts Delay approx. 0.30 seconds Delay approx.
  • Page 46  Change in weighing data due to digital filter (example for AD-4212F-6203D) Change Digital Filter About 1.50 second About 0.90 second 600.00 500.00 400.00 300.00 200.00 100.00 0.00 -100.00 Time (sec) Expansion...
  • Page 47 If the readability of the AD4212F-6203D is 0.001 g, 0.001 g = 1 digit. E.g. If one display digit is blanked out and the readability is 0.01 g, 0.01 g = 1 digit. If two display digits are blanked out and the readability is 0.1 g, 0.1 g = 1 digit.
  • Page 48 (8) Setting values in standard settings Stability Averaging Averaging Response Model Readability Digital filter characteristics detect time range time 0.30 Approx. Delay approx. FAST seconds 0.010 g seconds 0.90 seconds 0.40 Approx. Delay approx. 0.001 g seconds 0.110 g seconds 1.50 seconds 0.60 Approx.

  • Page 49: Changing The Baud Rate Using Winct-Ad4212F

    Click the [Balance Settings] tab. Select a COM port. Select a connection method. Specify the device address when connecting via RS-485. Select the baud rate to be used and click the Set button. (Factory setting: 2400) [Balance Settings] Connection method selection...

  • Page 50: Multiple Connections (Rs-485)

    KO7622-200) to daisy chain the weighing unit via RS-485. (Refer to "6-2. RS-485" for details on how to attach the RS-485 interface for daisy chain and how to make daisy chain connections.) Use the accessory cable (AX-KO7522-500) to connect to a PLC.
  • Page 51 Method of operation Step Description Select the number of weighing units to be connected. (Do not exceed the number of units actually connected.) Select the device address for each unit. (Do not set anything other than the address of the actually connected device. Do not set the same device address more than once.

  • Page 52: Smart Range Function

    Smart Range Function For AD-4212F-6203D, there are two types of range: the standard range and the precision range (higher resolution). The range can switch automatically depending on the display value. In addition, even when a heavy container is placed on the weighing pan, weighing with the precision range can be performed by returning the display value to zero with the R command.

  • Page 53: Impact Shock Detection Function

    The shock indicator display lasts for about 4 seconds after detecting an impact. 5-1. Recording impact history Impacts of impact level 3 or higher are automatically stored in the weighing unit with date and time (up to 50 instances). NOTICE If the number of recorded instances exceeds 50, the recorded data with the lowest impact level will be overwritten.

  • Page 54: Outputting Impact History

    (Refer to "3. Operation of WinCT-AD4212F".) When you click the Impact History button in WinCT-AD4212F, the impact history is output from the weighing unit and displayed as a log in WinCT- AD4212F. Impact history output example ˽ : Space, ASCII 20h 2023/03/27,05:15:41,SHOCK˽LV,4<TERM>...

  • Page 55: Communication Specifications

    To change the settings, use commands by RS-232C or RS-485. (Refer to "6-4. Command" for details.)  Relation between baud rate and transmission rate of weighing data (in continuous output mode) Baud rate Transmission rate of weighing data 600 bps Approx.

  • Page 56: Ax-Ko3590-1000 Pin Position

    If only one unit is connected by RS-485, no RS-485 interface for daisy chain is required. To connect the weighing unit and a PC or PLC, use an accessory cable AX-KO7522-500. To connect one weighing unit to another, use an accessory cable AX-KO7622-200.

  • Page 57: Rs-485 Specifications

    AC adapter. CAUTION DC+ (yellow) and GND (yellow / white) are connected to the power supply +12 V and 0 V of the weighing unit. When supplying power to the weighing unit, be careful not to make a mistake in the voltage, as this may lead to malfunction of the weighing unit or fire.

  • Page 58: Changing Device Address And Terminating Resistor Settings

    6-2-3. Changing device address and terminating resistor settings The device address of the weighing unit can be changed by two methods: change by rotary switch and change by command. (If the device address is set by both the rotary switch and command, the rotary switch setting takes precedence.)

  • Page 59: How To Install The Rs-485 Interface For Daisy Chain

    Description Use a screwdriver to remove the screws (4 places) Back of the weighing unit on the back of the weighing unit and open the panel. Screws on the back (4 places) CAUTION The rubber packing has a front and back, so be careful to attach it correctly.

  • Page 60: Daisy Chain Connection (Communication Cable Connection)

    The weighing unit with an RS-485 interface for daisy chain (accessory: AD4212F-29) has two connectors, DATA1 and DATA2. Use these two connectors to connect the weighing unit to a PC or PLC, or to connect the weighing unit to another unit.

  • Page 61: Daisy Chain Connection (Ac Adapter Connection)

    If the terminating weighing unit also has an RS-485 interface for daisy chain installed, close the unused connector DATA1 or DATA 2 by attaching the rubber cap that is affixed to the packing. The RS-232C cable (AX-KO3590-1000) cannot be connected to the DATA1 and DATA2 connectors at the same time.

  • Page 62: Data Output Format

    6-3. Data output format ･ The output format consists of 15 characters (excluding the terminator<CR><LF>). ･ The condition of the data is indicated with a 2-character header. ･ The data is added with polarity. ･ If the data is zero, the polarity is positive. ･...

  • Page 63: Command

    If a device address "01" to "99" is set and a command is sent by RS-485, prefix the command with "@**". (In the place of “**”, enter the device address set between "01" to "99".)
  • Page 64 Factory setting Send the command with the set value substituted for the ** part in the command field. After sending the "BPS" command, be sure to send the "P" or "ON" command or unplug and plug in the power supply.

  • Page 65: Ak Code And Error Code

    AK code is ASCII 06h code. The following commands are processed by the weighing unit, and it sends the AK code not only when the command is received, but also when processing ends. If processing does not end normally, the weighing unit will send an error code (EC, Exx).
  • Page 66 Contents and countermeasures Stability error EC,E11 Weighing value is unstable and therefore the “zero display”, “sensitivity adjustment”, etc. cannot be executed. Check around the pan. Improve the environment of the installation location to prevent factors such as vibration, draft, temperature change, static electricity and magnetic field from influencing the weighing unit.
  • Page 67 Commands for controlling weighing data Below is an output example when sending a command to control the weighing data. This example is for RS-232C connection. When connecting via RS-485, the control characters starting with "@" described in the example are not output. Device address information is added to other data according to the device address setting value.
  • Page 68 Example of "CAL" command External device side Time The weighing unit side (PC, PLC, etc.) ˽ ˽ "CAL" command AK C Command received ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽...
  • Page 69 ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ After the weight is removed, performs re-zeroing and Waiting for re-zero stability returns to weighing mode. ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ AK C Process completed ˽...
  • Page 70 Example of "SMP" command External device side Time The weighing unit side (PC, PLC, etc.) ˽ ˽ "SMP" command AK C Command received ˽ ˽ Example of the "R" command when the precision range is used External device side Time The weighing unit side (PC, PLC, etc.) ˽...

  • Page 71: Maintenance

    Maintenance 7-1. Care When cleaning the weighing unit, wipe it with a lint free cloth that is moistened with warm water and a mild detergent. Do not use organic solvents or chemical wipes. Do not disassemble the weighing unit. Use the original packing material for transport.

  • Page 72: Troubleshooting

    Since the weighing unit is a precision instrument, in some cases it may not be able to measure correct values due to adverse effects of the measurement environment or measurement method. If repeatability is poor when the sample is loaded and unloaded several times, or if the weighing unit seems to be operating abnormally, check the following items.

  • Page 73: Asking For Repair

    8-2. Asking for repair If the weighing unit needs service or repair, please contact your local A&D dealer. The weighing unit is a precision instrument. Use much care when handling the weighing unit and observe the following when transporting the weighing unit.

  • Page 74: Specifications

    Factory setting Smart range (Refer to "4. Smart Range Function".) When the stability band width is set to ±3 digits and FAST is selected for the weighing speed (response characteristics) in a good environment. Specifications when using the precision range...

  • Page 75: External Dimensions

    9-1. External dimensions AD-4212F-6203D / AD-4212F-10202 / AD-4212F-22001 Pan support dimensions (Intervals:90°)* Hole When securing, use M6. Air hole Unit: mm The screw holes to secure the exclusive weighing pan created by customers.

  • Page 76: Peripherals (Sold Separately)

    RS-485 interface (for daisy chain) 10-2. Options AD-8922A remote controller Displays the weighing data of the weighing unit and remotely operates re-zero and sensitivity adjustment. Options for BCD output (AD-8922A-01), comparator output (AD-8922A-04), and analog output (AD-8922A-06) are available for AD-8922.
  • Page 77 AD-8923-BCD/CC remote controller Displays the weighing data of the weighing unit and remotely performs re-zero and sensitivity adjustment. The AD-8923-BCD can output data using BCD. The AD-8923-CC can output data using CC-Link. AD-8551R Modbus RTU converter RS-232C output from the weighing unit can be converted to Modbus RTU.

  • Page 78: Terms

    0.0002 %/°C x 10 °C x 300 g = 6 mg IP65 IP65 is a rating that indicates no ingress of dust and no harmful influence by dustproof and receiving direct jets of water from any direction. Note that the weighing unit will waterproof rating not withstand strong direct water jets or being completely immersed in water.
  • Page 79 THIS PAGE INTENTIONALLY LEFT BLANK.
  • Page 80 Back cover: A&D Global A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 47747 Warm Springs Blvd, Fremont, California 94539, U.S.A. Tel: [1] (800) 726-3364 Weighing Support:[1] (888) 726-5931 Inspection Support:[1] (855) 332-8815 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom...
