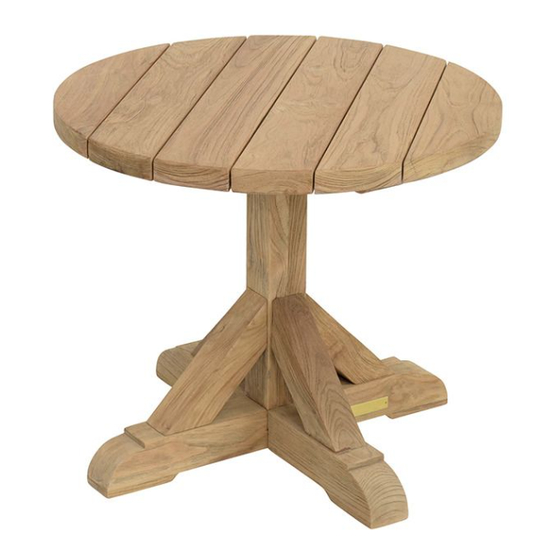

kingsley-bate PV-24 Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR THE PV-24/42

ANGLE SUPPORTS

assembly pictures (use of a rubber mallet may be necessary to drive all joints together).

NOTE: ANGLE SUPPORTS, TABLE BASE and BOTTOM BASE SUPPORT are all

marked with letter and/or numbers for accurate assembly. Once all joints fit snugly

together secure the BOTTOM BASE SUPPORT with the knock down bolts and washers

provided. NOTE: Slide the split washer on first followed by the flat washer onto the

bolt).

TABLE TOP

HARDWARE

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to

avoid marring the wood.

NOTE: During assembly of the furniture please match all joints

with the corresponding letters or numbers stamped on the furniture.

TABLE BASE

* NOTE

A TENON

B MORTISE HOLE

Flip the TABLE BASE upside

down and with the help of

another person carefully install

the ANGLE SUPPORTS and

the

BOTTOM

SUPPORT as shown in the

BASE

Table of Contents

Do you have a question about the PV-24 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS FOR THE PV-24/42 ANGLE SUPPORTS TABLE TOP TABLE BASE * NOTE A TENON B MORTISE HOLE HARDWARE STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood. NOTE: During assembly of the furniture please match all joints with the corresponding letters or numbers stamped on the furniture.
Page 2 KINGSLEY BATE FURNITURE, PLEASE CONTACT THE KINGSLEY BATE DEALER NEAREST TO YOU OR KINGSLEY BATE DIRECTLY. WE THANK YOU FOR CHOOSING OUR FURNITURE. *KINGSLEY-BATE WILL NOT TAKE RESPONSIBILITY FOR DAMAGE IF THESE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY. 7200 Gateway Court, Manassas, Virginia 20109...

Pv-42
