Seagate Lyve Mobile Link Quick Start Manual page 11

2

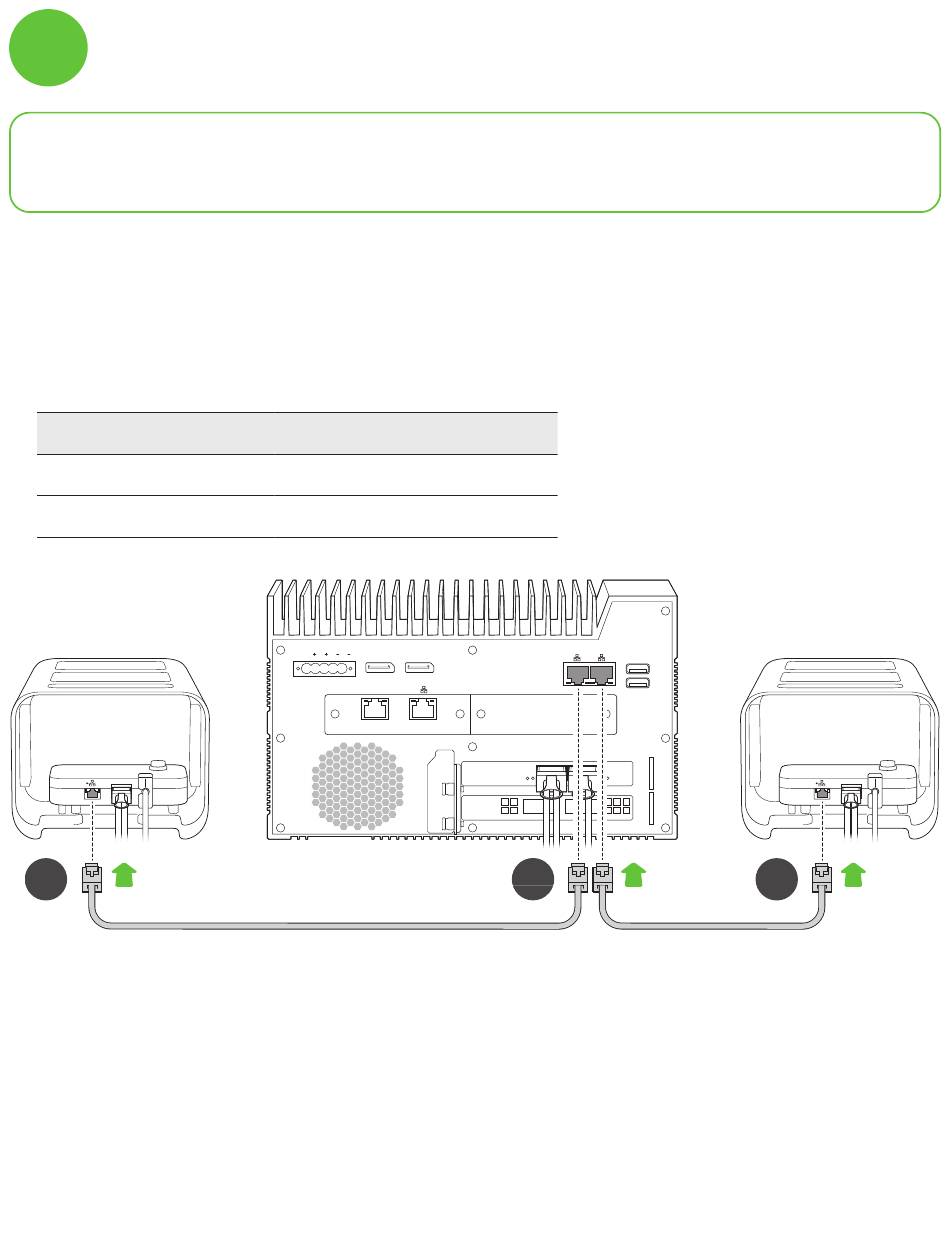

Connect Link and Lyve Mobile Array management path
Important — Only use a direct Ethernet connection for Storage Management. Do not place
an Ethernet switch between Link's Storage Management ports and the Ethernet ports on PCIe
Adapter/Rackmount Receiver.
PCIe Adapter
A Connect an Ethernet cable to the management port on PCIe Adapter.
B Connect the other end of the cable to STORAGE MGMT A or B on Link. Make sure to select the
STORAGE MGMT port controlling data to the STORAGE CONNECTION port selected in step 1.
Management Port
STORAGE MGMT A
STORAGE MGMT B
A
Data Ports
STORAGE CONNECTION A-B
STORAGE CONNECTION C-D
IGN DP DP
APPLIANCCE
SW
MGMT
LAN 1
10GbE
STORAGE STORAGE
MGMT A MGMT B
USB 3.2
STORAGE CONNECTIONS
A B C D
LAN 2 LAN 3
100GbE 100GbE
B A
11
