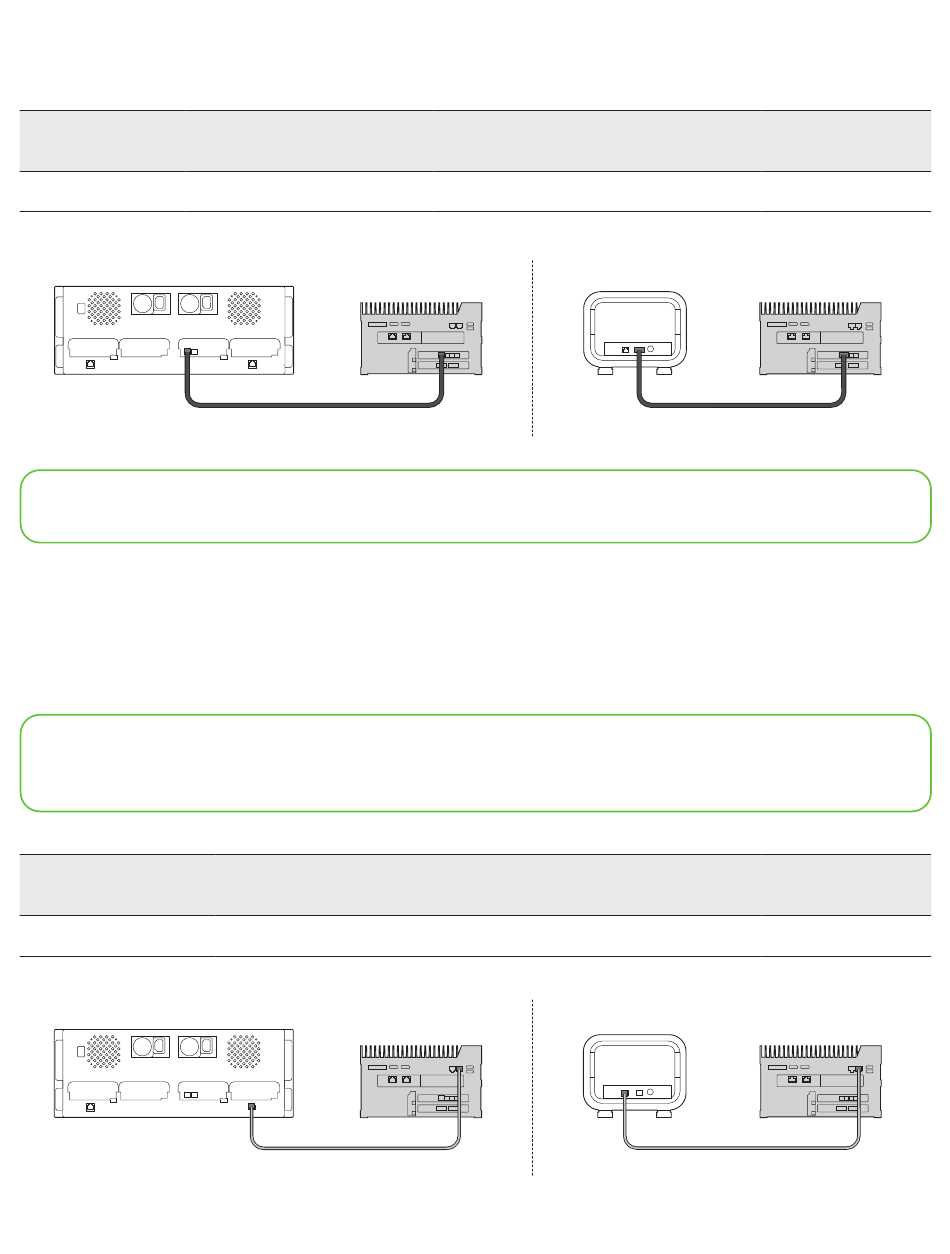

Data connection to Link
Data to/from Lyve Mobile Array passes through PCIe or SAS connections.
Path PCIe Adapter/
Rackmount Receiver
Data PCIe/SAS
Rackmount Receiver
Note — Confirm with your product administrator if your Lyve Mobile Arrays and Lyve Mobile Link
use PCIe or SAS data paths before following the instructions included in this quick start guide.
Management connection to Link
Link controls Lyve Mobile Array via a direct Ethernet connection. Ethernet cables not included with Link.
Note — Only direct management connections are supported. Do not use an Ethernet switch
when connecting the Ethernet management cables between Lyve Mobile Link and PCIe Adapter/
Rackmount Receiver.
Path
Management
Rackmount Receiver
Data
PCIe Adapter/
Rackmount Receiver
Ethernet management
Management
Link
STORAGE CONNECTIONS A-D
PCIe Adapter
Link
STORAGE MGMT A or B
PCIe Adapter
Connector Type
SFF-8644
Data
Connector Type
RJ45
Management
