Connect devices
Note — Confirm with your product administrator if your Lyve Mobile Arrays and Lyve Mobile Link
use PCIe or SAS data paths before following the instructions included in this quick start guide.
1

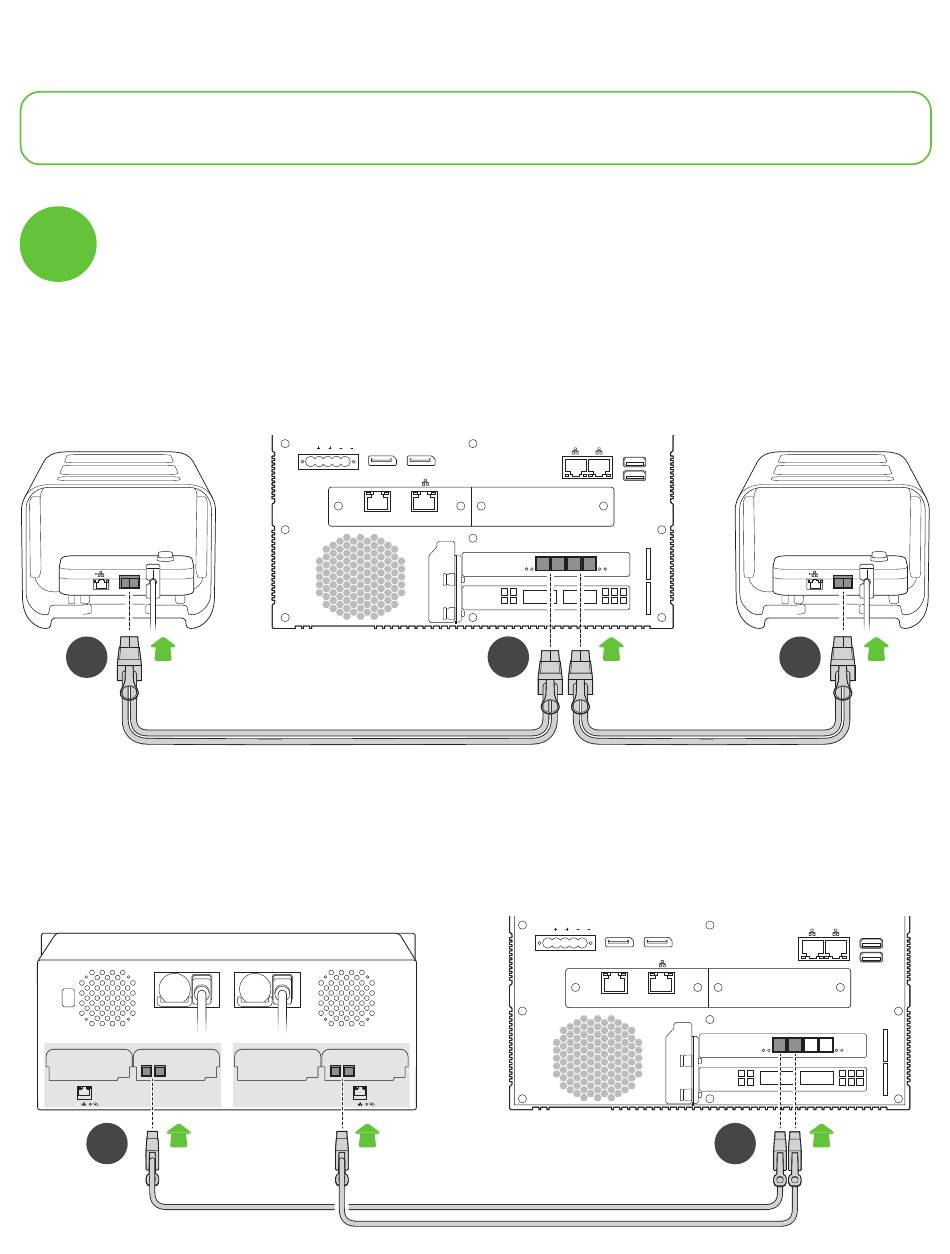

Connect Link and Lyve Mobile Array data path
PCIe Adapter
A Connect a dual SFF-8644 cable to the data port on PCIe Adapter.
B Connect the other end of the cable to STORAGE CONNECTION A-B or C-D on Link.
A
Rackmount Receiver
A Connect a single SFF-8644 cable to a SAS port on Rackmount Receiver.
B Connect the other end of the cable to STORAGE CONNECTION A or B on Link.
