Connect Link to network
Note — Network cables are not included with Link.

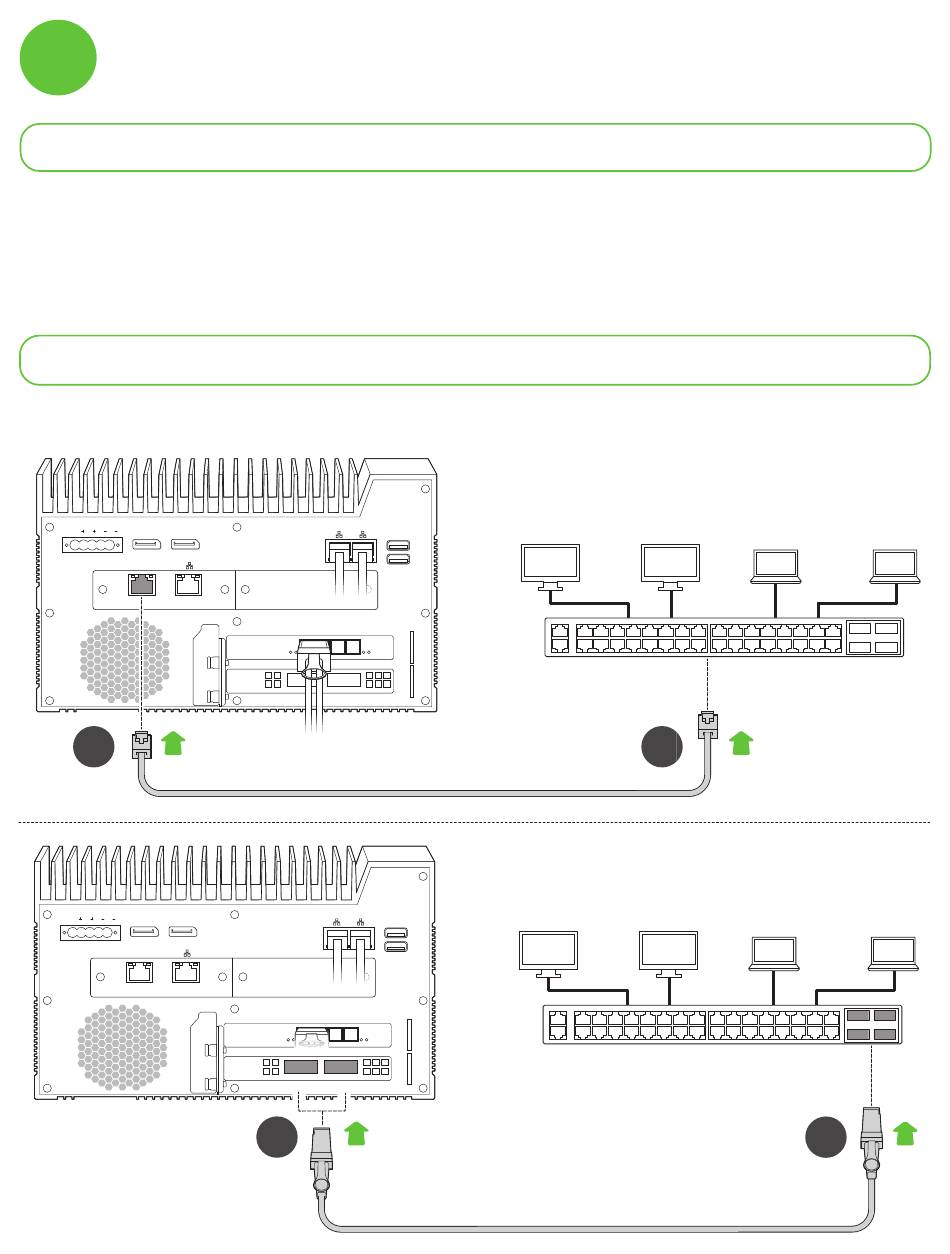

A Connect the appropriate cable to one or more of the following LAN ports on Link:
• LAN 1 10GbE (RJ45 supporting 10GbE performance)
• LAN 2 100GbE (QSFP56)
• LAN 3 100GbE (QSFP56)
All LAN ports can be connected at the same time. However, Link does not support port aggregation.
B Connect the other end of the cable to the network switch.
