Seagate Lyve Mobile Shuttle
User Manual
Model:
Hier klicken, um eine aktuelle Online-Version
dieses Dokuments aufzurufen. Auch finden Sie hier die aktuellsten Inhalte sowie erweiterbare
Illustrationen, eine übersichtlichere Navigation sowie Suchfunktionen.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lyve Mobile Shuttle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seagate Lyve Mobile Shuttle

Summary of Contents for Seagate Lyve Mobile Shuttle

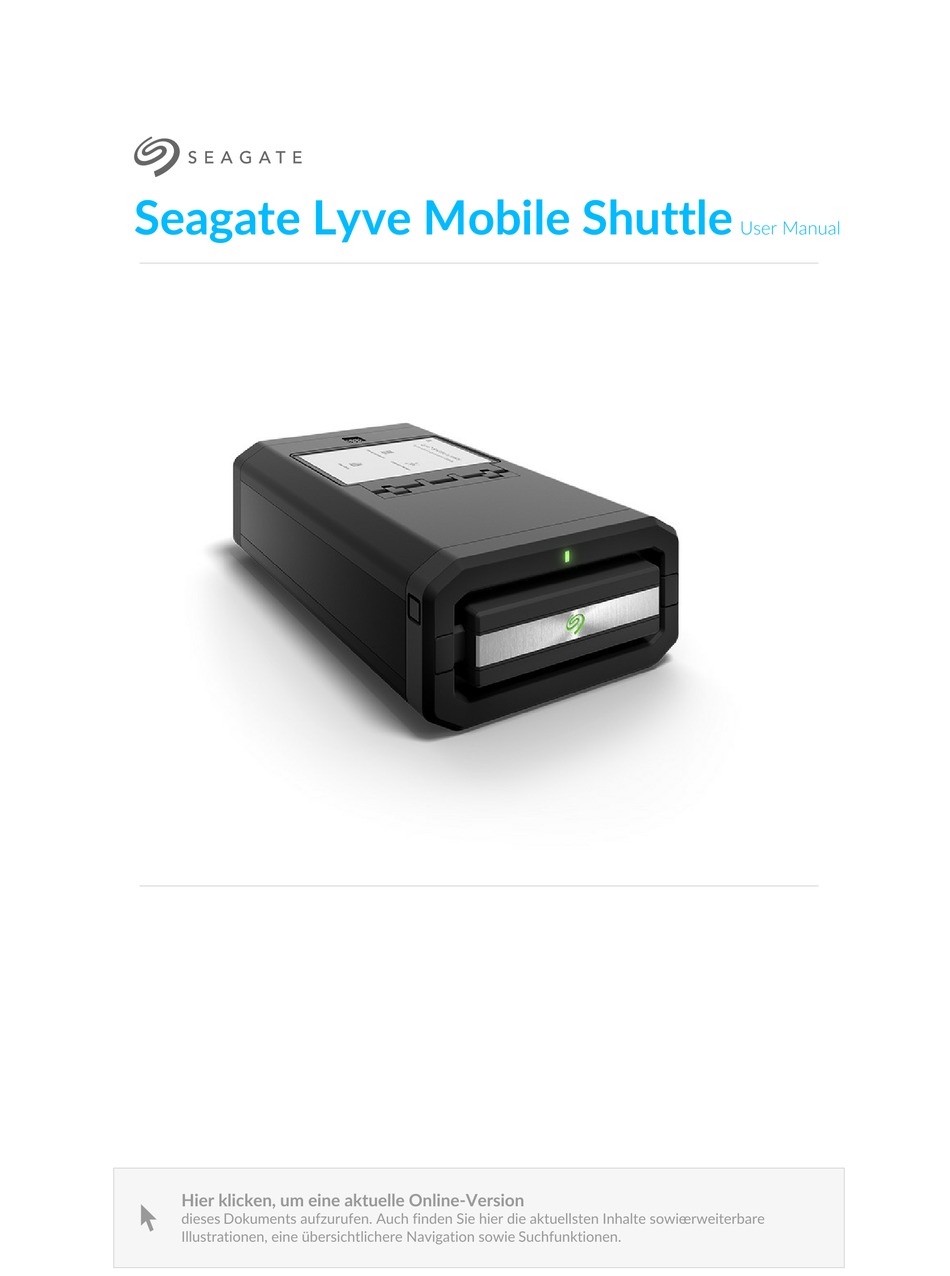

  • Page 1 Seagate Lyve Mobile Shuttle User Manual Model: Hier klicken, um eine aktuelle Online-Version  dieses Dokuments aufzurufen. Auch finden Sie hier die aktuellsten Inhalte sowie erweiterbare Illustrationen, eine übersichtlichere Navigation sowie Suchfunktionen.

  • Page 2: Table Of Contents

    ..........................Lyve Mobile Shuttle is ready .
  • Page 3 6 Network Operations ....................

  • Page 4: Introduction

    Take control of your data transfer and transport costs when moving data around your enterprise. This shuttle supports most industry-standard file systems and network protocols for easy ingestion from direct-attached, network-attached, and other external storage devices. For common questions and answers about your Lyve Mobile Shuttle, visit lyve.seagate.com. Box content Lyve Mobile Shuttle USB 3.1- USB C cable...

  • Page 5: Weight

    Weight Model Weight (lb/kg) 2 x 4TB SATA 8.774 lb/3.98 kg 16TB SATA 9.921 lb/4.5 kg Electrical Type C PD 3.0 power adapter (15V@3A) Temperature ranges Ambient environment Temperature range Standard (operating) 0-35 °C Ports Host port (USB 3.1 Gen 2 Type C) — Connect to Windows and macOS computers. Introduction 4/4/23...

  • Page 6: E-Ink Screen

    The status LED is located above the handle. It is steady green when inactive and blinks during activity. Shipping case A shipping case is included with Lyve Mobile Shuttle. Always use the case when transporting and shipping the device. Lyve Mobile Shuttle is well protected in its hard enclosure but is not manufactured to withstand the potentially damaging impacts that can occur with transport.

  • Page 7: Getting Started

    B. Connect the power cord to the power supply. C. Connect the power cord to a live power outlet. Use only the power supply provided with your device. Power supplies from other Seagate and  third-party devices can damage your Lyve Mobile Shuttle.

  • Page 8: View The E-Ink Display

    View the E-Ink display Follow the onscreen instructions to complete the setup. Lyve Mobile Shu le is ready After setup is complete, tap an action to get started. Getting Started 4/4/23...

  • Page 9: Site Credentials

    For advanced network features such as NFS, site configurations, and volume password-  protection, tap on the Menu icon ( ) and select Settings > Network. Ini al configura on Storage Format exFAT for compatibility with Windows and macOS. Internet Protocol DHCP for easy network connectivity.
  • Page 10 1. On the Home screen, tap the Menu icon ( ). 2. Tap Shut Down. Lyve Mobile Shuttle does not have a power button. To power on the device, disconnect and reconnect the power cable. In the event Lyve Mobile Shuttle is abruptly disconnected from power, it will restart ...

  • Page 11: Security

    AES-based hardware encryption. Lyve Mobile Shuttle's enhanced encryption keeps your data safe should someone attempt to remove the storage device. The storage device can only be unlocked when it is safely housed within Lyve Mobile Shuttle and will not work if it is removed. Create a password Lyve Mobile Shuttle can only be unlocked by the device password.

  • Page 12: Lock Device

    To unlock the device: 1. Connect the power cable to power on the device. 2. Enter your password. 3. Tap OK. Lock device To lock the device: 1. On the Home screen, tap the Menu icon ( ). 2. Tap Lock. Security 4/4/23...

  • Page 13: Desktop Operations

    Desktop Opera ons You can connect a computer to Lyve Mobile Shuttle's USB host port. Once connected, you can copy files to Lyve Mobile Shuttle. Connect a computer To connect a computer: 1. On the Home screen, tap Connect to Computer.

  • Page 14: Copy Files

    Copy files To copy files to Lyve Mobile Shuttle: 1. With your computer connected to Lyve Mobile Shuttle, open a computer file browser window and navigate to the location on Lyve Mobile Shuttle where you want to locate your copied files.
  • Page 15 3. At the prompt, confirm by tapping Disconnect. Desktop Operations 4/4/23...

  • Page 16: Network Configuration

    1. On the Network screen, tap Choose Service. 2. Tap SMB or NFS. If you choose NFS, Lyve Mobile Shuttle will be crypto erased and the storage formatted  as EXT4. All items stored on the device will be deleted.

  • Page 17: Configure Sites

    Set creden als (Volume password) Add an extra layer of security by creating a username and password to access the Lyve Mobile Shuttle volume on the network. This is only available with SMB as the service and cannot be used with NFS. The default name of the volume is Lyve Mobile Shuttle.
  • Page 18  connected to a domain If you're using a Windows machine connected to a domain, your Lyve Mobile Shuttle username/password credentials must match your domain credentials in order to access the Lyve Mobile Shuttle's volume over the network. See this...

  • Page 19: Network Operations

    1. On the Home screen, tap Connect to Network. 2. Connect Lyve Mobile Shuttle's Ethernet port to a network. 3. Once Lyve Mobile Shuttle is connected, you can copy data from computers on the network to Lyve Mobile Shuttle’s volume.

  • Page 20: Copy Storage Devices

    1. On the Home screen, tap Copy a Drive. 2. Connect a device to Lyve Mobile Shuttle's USB port. 3. Lyve Mobile Shuttle searches for connected devices. At the prompt, select the source to copy to Lyve Mobile Shuttle and tap Copy.

  • Page 21: Folder Naming Conventions

    Performing incremental copies When a new storage device is detected, Lyve Mobile Shuttle will copy all files from the source. If the same drive is connected again at a later date, Lyve Mobile Shuttle will perform either a full or incremental copy, depending on your copy settings.

  • Page 22: Enabling Incremental Copies

    Incremental Only new files on a previously ingested storage devices are copied to Lyve Mobile Shuttle. Incremental copies can save storage space and copying time. Enabling incremental copies To enable incremental copies: 1. On the Home screen, tap the Menu icon ( ).

  • Page 23: Crypto Erase

    Crypto Erase A crypto erase securely deletes all data on Lyve Mobile Shuttle. Data cannot be recovered after a crypto erase. Your security settings and password remain unchanged. To crypto erase the device: 1. On the Home screen, tap the Menu icon ( ).

  • Page 24: Recovery

    Recovery If an internal issue is detected when starting, Lyve Mobile Shuttle may automatically initiate a recovery. To complete the recovery: 1. Tap to choose one of the recovery options: Revert all Revert only settings to factory defaults. Data and settings password remain untouched.
  • Page 25 To initiate a manual recovery: 1. On the Home screen, tap the Menu icon ( ) and select Support > Recovery. 2. Follow the instructions above. Recovery 4/4/23...

  • Page 26: Settings

    Enabling this option doubles the time to copy. 3. Tap Back. Clock You can set the date, time, time zone, and clock (12-hour/24-hour) for Lyve Mobile Shuttle. To edit clock settings: 1. In the Settings menu, tap Clock. Settings...
  • Page 27 1. In the Settings menu, tap Clock. 2. Tap 12H or 24h to set the clock (12-hour/24-hour). 3. Tap Edit. 4. On the Choose time zone screen, tap on the Search icon. 5. Enter a time zone, city, or country and tap Search. 6.

  • Page 28: Support

    2. Tap Support. 3. Select an activity from the menu. Update Lyve Mobile Shuttle's firmware may need to be updated as part of routine maintenance or in order to resolve a specific issue. To initiate a firmware update: 1. In the Support menu, tap Update.

  • Page 29: Generate Diagnostic

    Lyve Mobile Shuttle will automatically update when powering on. Generate diagnos c If you've contacted Seagate support about a technical problem with Lyve Mobile Shuttle, a representative may ask you to download a diagnostic report to aid in troubleshooting the issue.
  • Page 30 Firmware version Serial number 3. Tap Back. Lyve Mobile Shuttle uses open source libraries. You can download acknowledgements and licenses: 1. On the About screen, tap Acknowledgements & Licenses. 2. Connect a storage device and tap Download. 3. Review the download results and tap OK.

  • Page 31: Regulatory Compliance

    Regulatory Compliance Product Name Regulatory Model Number Seagate Lyve Mobile Shuttle SUP001S FCC DECLARATION OF CONFORMANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 32: Taiwan Rohs

    CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant.
  • Page 33 Regulatory 4/4/23...
