IMPORTANT
Split Phase 120/240 VAC Supply or 3 phase 120/208 VAC C (must be protected by a 40 A
fuse or circuit breaker) Both lines must have 120V between ground.
Voltage supply must be grounded.
Require 2 lines and 1 ground connection. Neutral is not used. (Refer to Figure 1 and
Figure 2).
Maximum output power: 7.2 kW @ 240 VAC or 6.3 KW @ 208 VAC
Built-in protection against overvoltage conditions and leakage current to ground
Connect the power supply of the EVSE with caliber 2 to 8 copper or aluminium
conductors
Any EVSE part alteration will automatically void the warranty.
Install the Communication Gateway prior to the Commissioning of the Station
The Communication Gateway is the property of AddÉnergie. Fees will be charged if
the Gateway is damaged or lost
IMPORTANT ELEMENTS TO CONSIDER WHEN INSTALLING THE COMMUNICATION
GATEWAY:
An Outdoor installation is recommended. The Customer must provide a waterproof
PVC box and install it less than 50 meters (164 ft.) from the stations.
Never use a GFCI outlet to power the Communication Gateway.
Contact us when the Communication Gateway is installed to validate the signal levels
and activate Commissioning or for any other questions: 1 855 543 8356

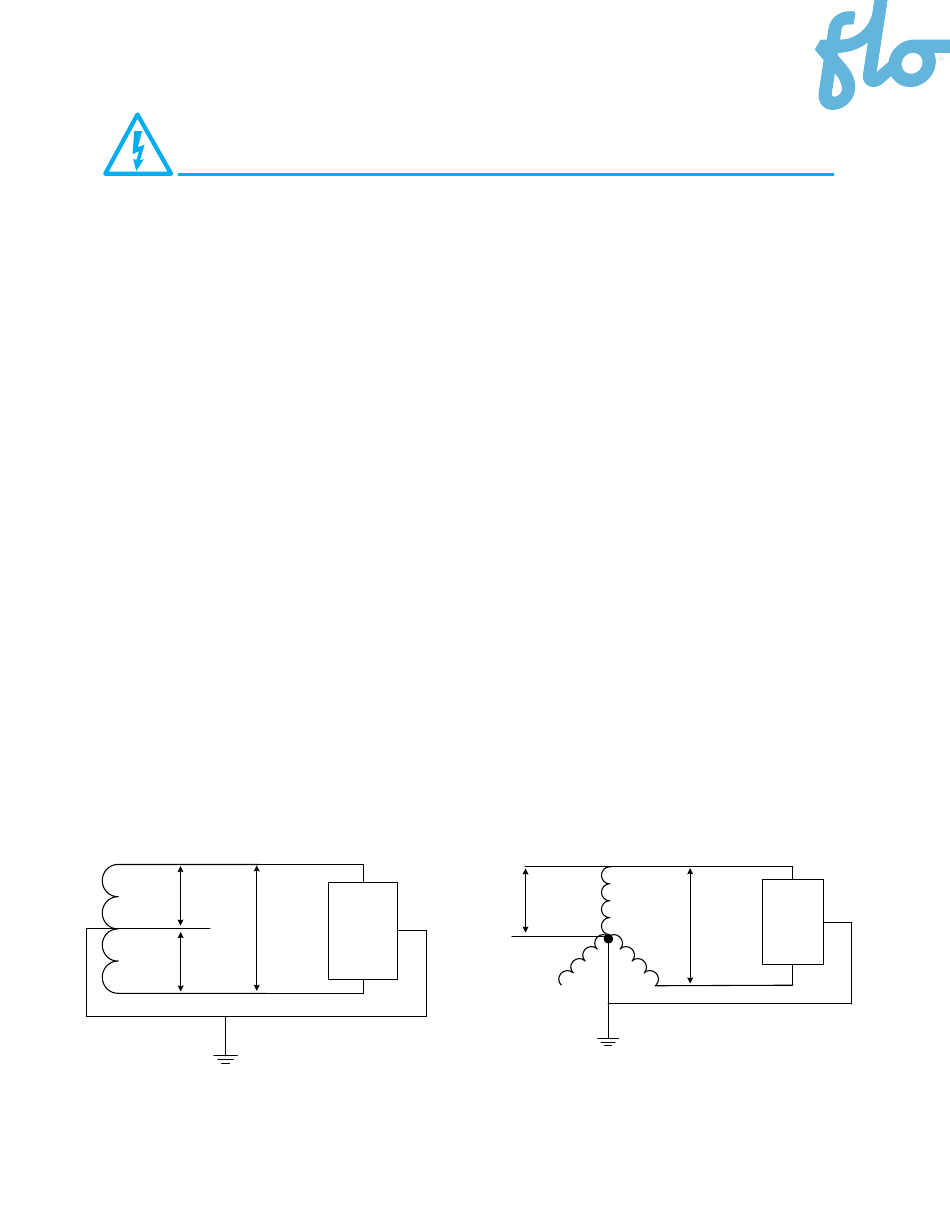

Fig. 1
Split Phase 120/240 VAC Supply
120VAC
Neutral
240VAC
(N.C)
120VAC
GND
.
L1
120VAC
GND
Charging
(N.C)
Station
L2
Fig. 2
3 phase 120/208 VAC Supply
A
208 VAC
Neutral
C
B
GND
L1
GND
Charging
Station
L2
