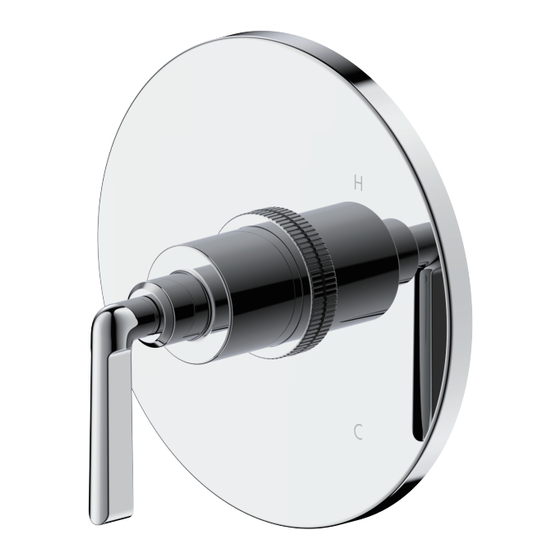

Pressure Balance Trim

28-15P-T

Installation Instructions

Adjustable Wrench

For easy installation of your faucet you will need:

● To read all the installation completely before beginning.

● To read all warnings, care, and maintenance information.

● To complete the valve rough-in prior to installing this trim kit.

Tools You Will Need

Adjustable Pliers

Hacksaw

Teflon Tape

Before beginning installation, check for any damage

that may have occurred during transport.

Note: Damage claims cannot be made during or

after installation.

Screwdriver

15125630

Need help?

Do you have a question about the Fenmore 28-15P-T and is the answer not in the manual?

Page 1 Fenmore Pressure Balance Trim 28-15P-T Installation Instructions Tools You Will Need Adjustable Wrench Screwdriver Hacksaw Adjustable Pliers Teflon Tape For easy installation of your faucet you will need: Before beginning installation, check for any damage ● To read all the installation completely before beginning. that may have occurred during transport.
Page 2 28-15P-T Installation Instructions Set the handle in the desired off position and place handle assembly on the valve. Rotate clockwise securing the handle assembly and escutcheon to the wall and engaging the stem. - If all functions smoothly go to step #15.
Page 3 If handle assembly will not bottom out the escutcheon to the wall, measure and note the distance Cut stem and nipple the amount ‘XX’(the distance between the noted in step # 10. (Never cut the Remove the handle and escutcheon bottom of the handle assembly and stem and nipple while still on the assembly, the plate, stem and nipple.
Page 4 2 3/16 ＂ -3 3/16 ＂ (5 ‐ 3/16 ＂ with extensions) Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. www.crosswaterlondon.com For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757...
