Fenmore

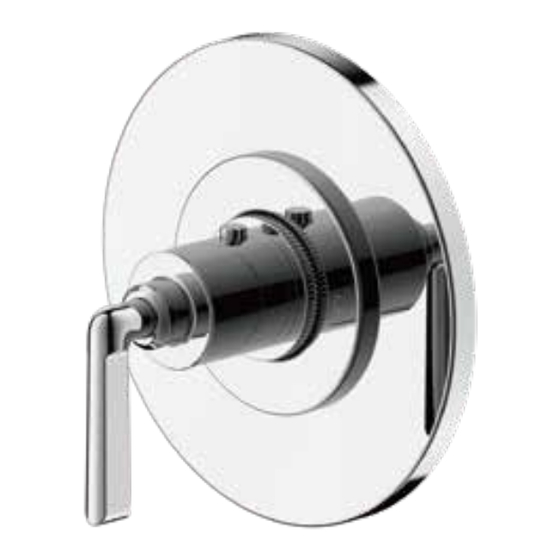

Thermostatic Shower Trim
28-16-T
Adjustable Wrench
For ease of installation you will need:
● To read the installation instructions completely before beginning.
● To read all warnings, care, and maintenance information.
● To complete the valve rough-in prior to installing this trim kit.
Tools You Will Need
Adjustable Pliers
Before beginning installation, check for any damage
that may have occurred during transport.
Note: Damage claims cannot be made during or
after installation.
Screwdriver
15125626
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crosswater 28-16-T
Summary of Contents for Crosswater 28-16-T
- Page 1 Fenmore Thermostatic Shower Trim 28-16-T Installation Instructions Tools You Will Need Adjustable Wrench Adjustable Pliers Screwdriver For ease of installation you will need: Before beginning installation, check for any damage ● To read the installation instructions completely before beginning. that may have occurred during transport.
- Page 2 28-16-T Installation Instructions NOTE: Make sure the hole in the Turn off the water supply and remove stem is facing straight up. (This sets Thread on finished sleeve. the mud guard. the valve at 100ºF). Slide on top plate on the finished sleeve.
- Page 3 Safety Temperature 100ºF Rotate the cartridge stem to adjust safety temperature. Rotate clockwise Reinstall the temperature control to reduce temperature, rotate Turn off the water supply. Remove handle and escutcheon making sure counterclockwise to increase the handle and escutcheon. the temperature override button is on temperature.
- Page 4 Installation completed. Cleaning Instructions Rinse away any traces of soap and gently dry with a clean, soft cloth after each use. Rinse completely with water and dry any overspray. This will maintain the finish and avoid water spotting. To remove mineral deposits, use a 50/50 solution of white vinegar and water. Do not allow the solution to soak on the product.
- Page 5 28-16-T Replacement Parts NO. Description Part NO. Screw M4X80 5T0F0266NT Hole Cover 5L0C0887 Trim Cover 5L0C0865 Spring＆Button＆Pin 9Q1112 Handle Assembly 5Y0342200 Hex Set Screw & Allen Key 9Q1356NT Washer 5R4004600PL0 Escutcheon Assembly 5L0C087700 Extension kit(Polished Chrome) 9Q1172CP Extension kit(Satin Nickel)
- Page 6 7/16 ＂ 4 5/16 ＂ Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757 www.crosswaterlondon.com...
