Symmons Carrington SRT-4472 Installation Brief

Roman Tub Faucet, SRT-4472
Installation Brief
Model Number
SRT-4472 Faucet with Handspray
Finish Options
-STN Satin Nickel
- Chrome (standard finish)

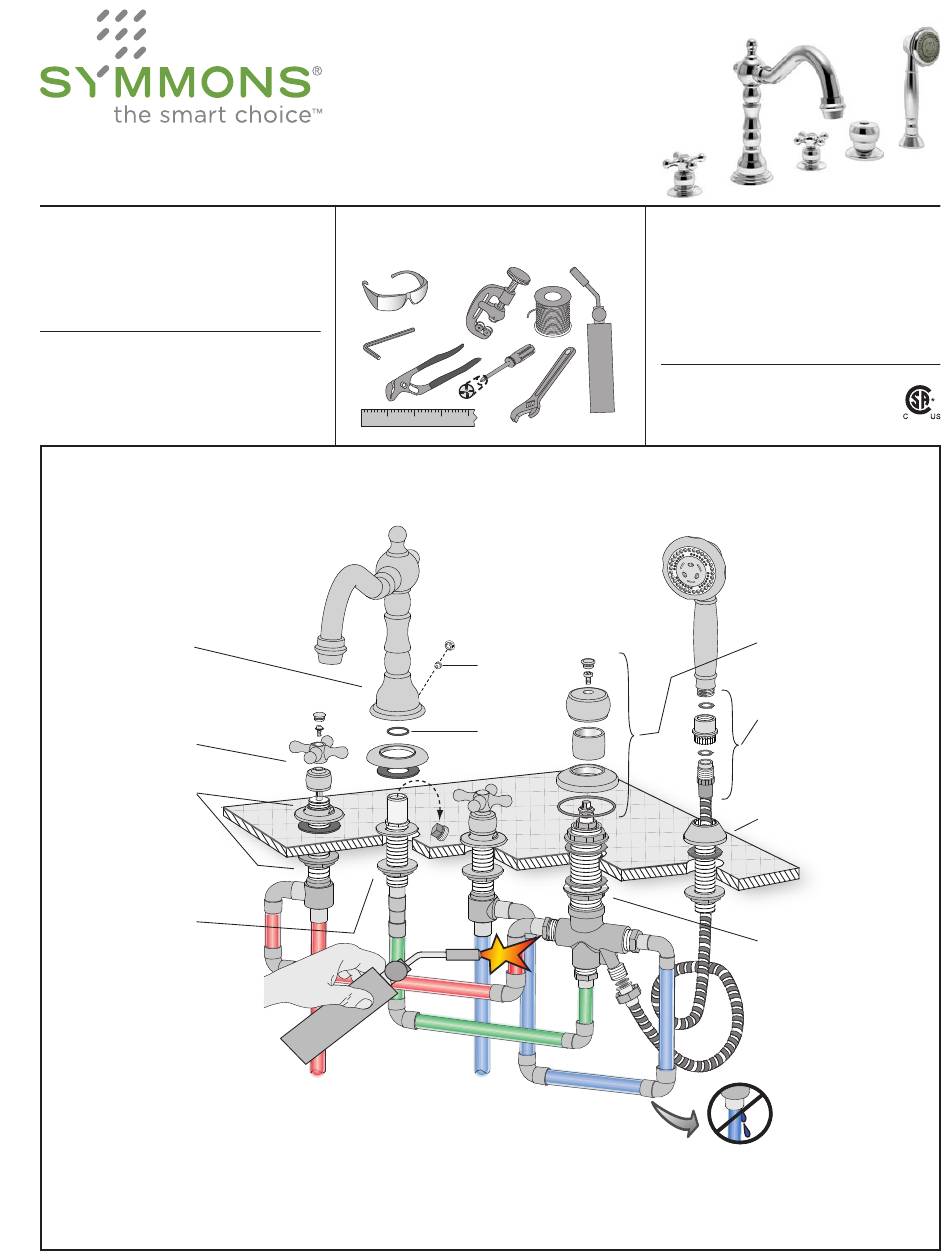

Quick Install Guide
Step 6
Attach spout
Step 8
Attach handles
Step 1
Attach supply valves
Step 2
Attach spout
centerbody
Step 6
Install piping and
check for leaks
Notes: 1) DO NOT use plumber putty or plumber tape on
fittings with face seal washers or o-ring seals.
2) Fittings and copper piping are not included.
Actual piping and fittings used should be
determined and installed by a licensed plumber.
Carrington
Tools & Materials
1/8"
1 2 3
Carrington Roman Tub Faucet, SRT-4472
Important:
O-ring (T-2) can be damaged if set
screw (SC-15A) is overtightened
during installation. If faucet begins
to leak from under spout, replace
o-ring (T-2).
Hot
water supply water supply
®
4
Set Screw
(SC-15A)
O-ring
(T-2)
Cold

Need Help?
Symmons customer service:
Phone: (800) 796-6667
Email: gethelp@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST
www.symmons.com/service
