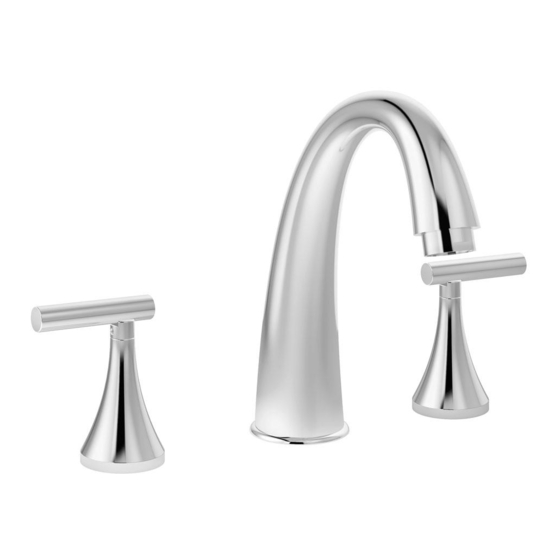

Roman Tub Faucet
Installation and Service Instructions
Model Numbers
SRT-4670 ............. Chrome finish
SRT-4670-STN .... Satin Nickel finish

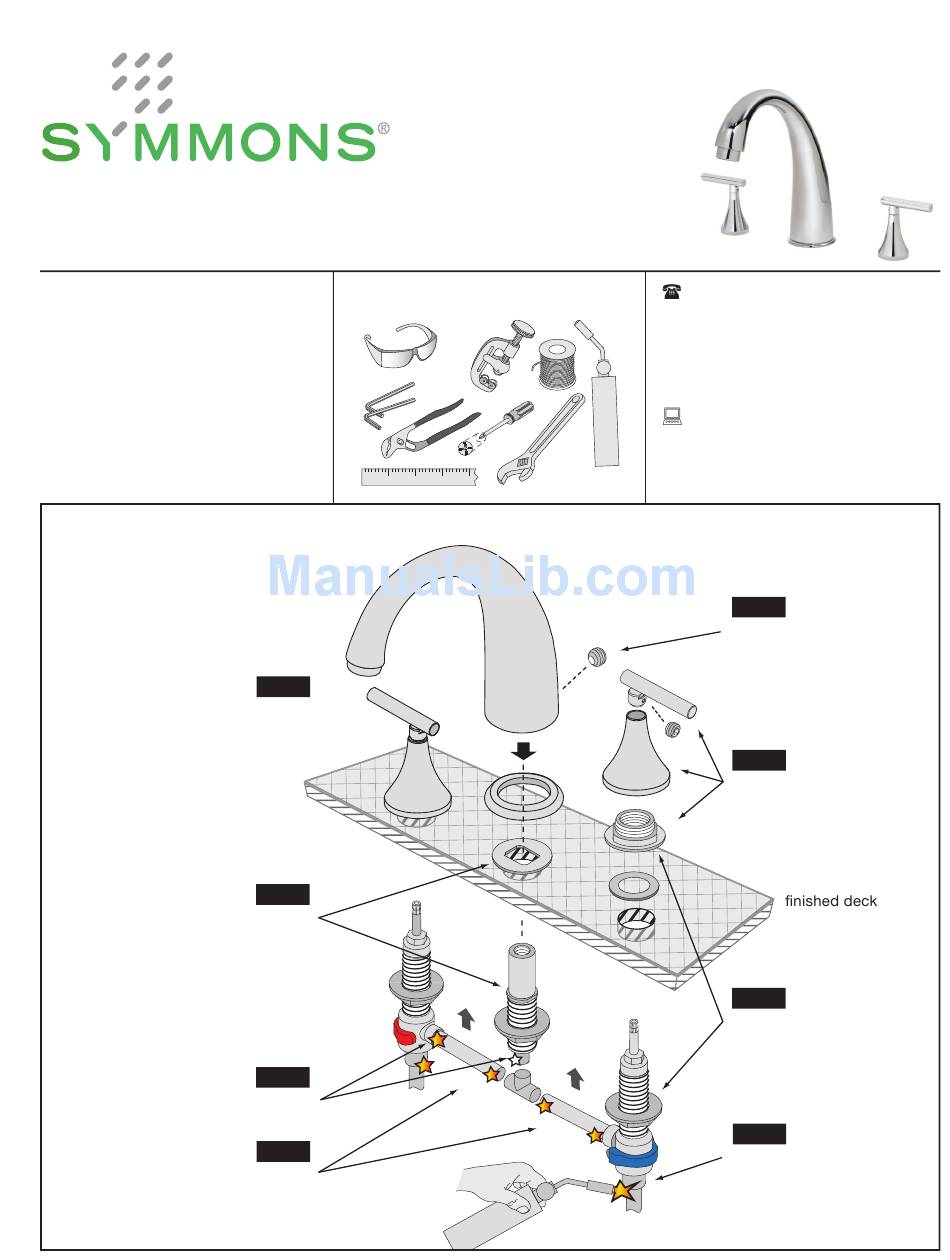

Quick Install Guide
Flush water supply lines
Mount valve assembly
Solder valve assembly together
Cut copper tubing to length
Lucetta
SRT-4670
Tools & Materials
5/64"
1/8"
1
2
3
Lucetta Roman Tub Faucet, SRT-4670
Step 8
Step 3
Step 2
Step 1
®
4
Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 8:00 am - 7:30 pm EST
Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 7
Attach water spout
Step 5
Attach handles
Step 4
Attach valve assembly
Step 6
Connect water supply lines
and check for leaks
