Symmons Elm SRT-5570 Installation Brief

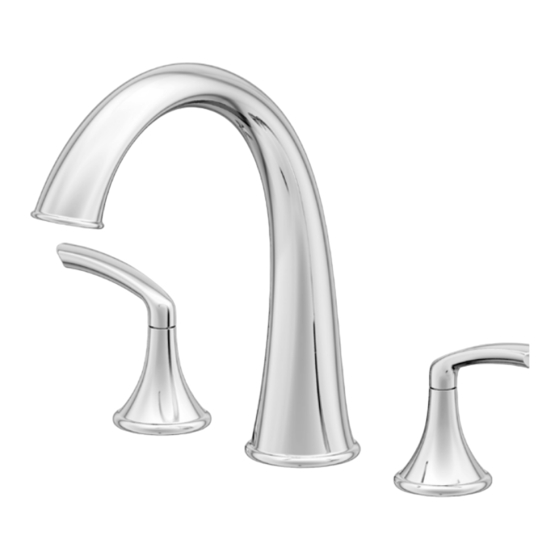

Roman Tub Faucet SRT-5570
Installation Brief

Model Numbers

SRT-5570 Roman Tub Faucet

Finish Options

-STN Satin Nickel
-SBZ Season Bronze
- Chrome (standard finish)

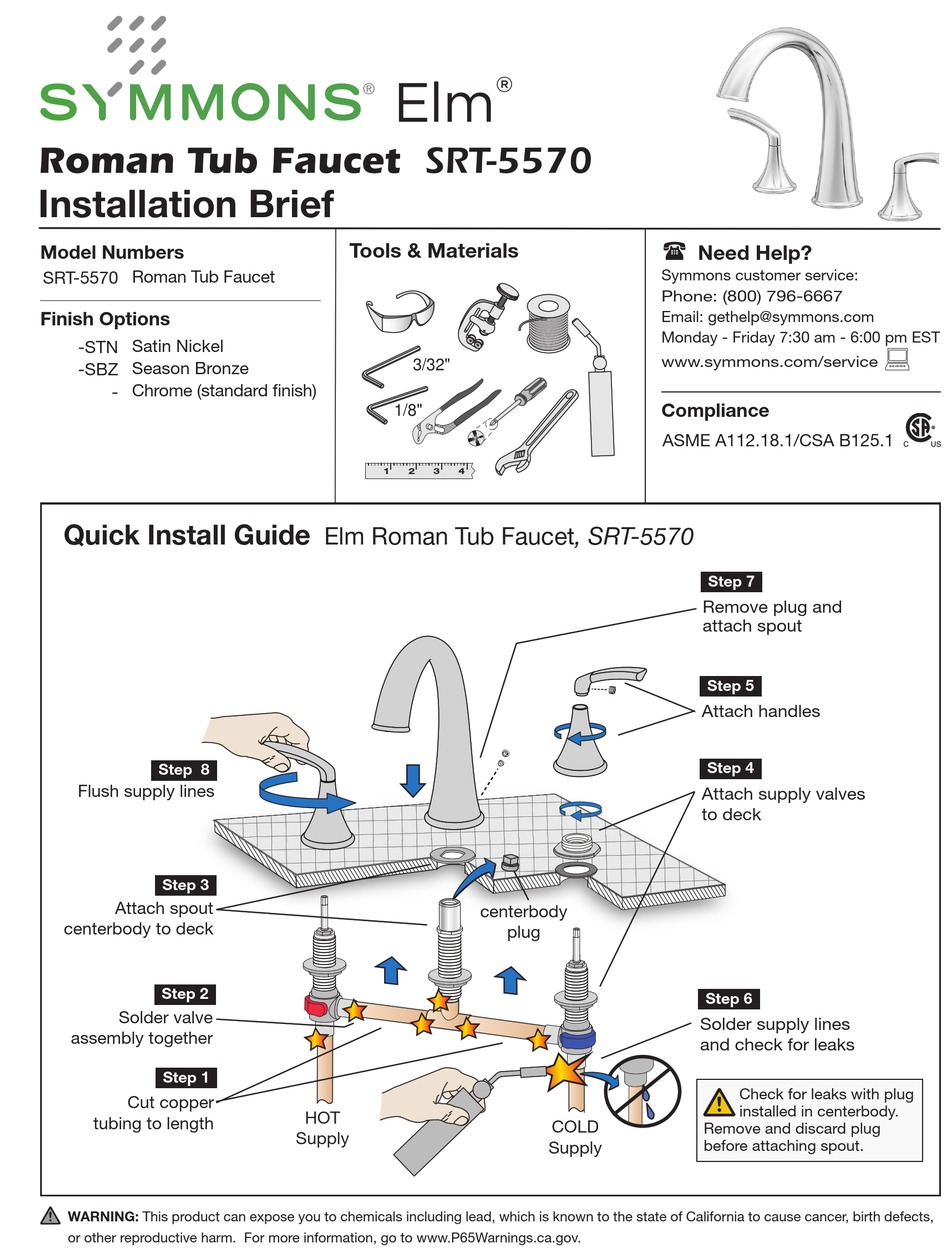

Quick Install Guide

Step 8
Flush supply lines
Step 3
Attach spout
centerbody to deck
Step 2
Solder valve
assembly together
Step 1
Cut copper
tubing to length
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects,
or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Elm
Tools & Materials
3/32"
1/8"
1 2 3 4
Elm Roman Tub Faucet, SRT-5570
HOT
Supply
®
centerbody
plug
COLD
Supply

Need Help?
Symmons customer service:
Phone: (800) 796-6667
Email: gethelp@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST
www.symmons.com/service

Compliance

ASME A112.18.1/CSA B125.1
Step 7
Remove plug and
attach spout
Step 5
Attach handles
Step 4
Attach supply valves
to deck
Step 6
Solder supply lines
and check for leaks
Check for leaks with plug
installed in centerbody.
Remove and discard plug
before attaching spout.

