Symmons Allura SRT-4770 Installation And Service Instructions

Roman Tub Faucet
Installation and Service Instructions
Model Numbers
SRT-4770 .............. Chrome finish
SRT-4770-STN ..... Satin Nickel finish
Compliance
ASME A112.18.1/CSA B125.1

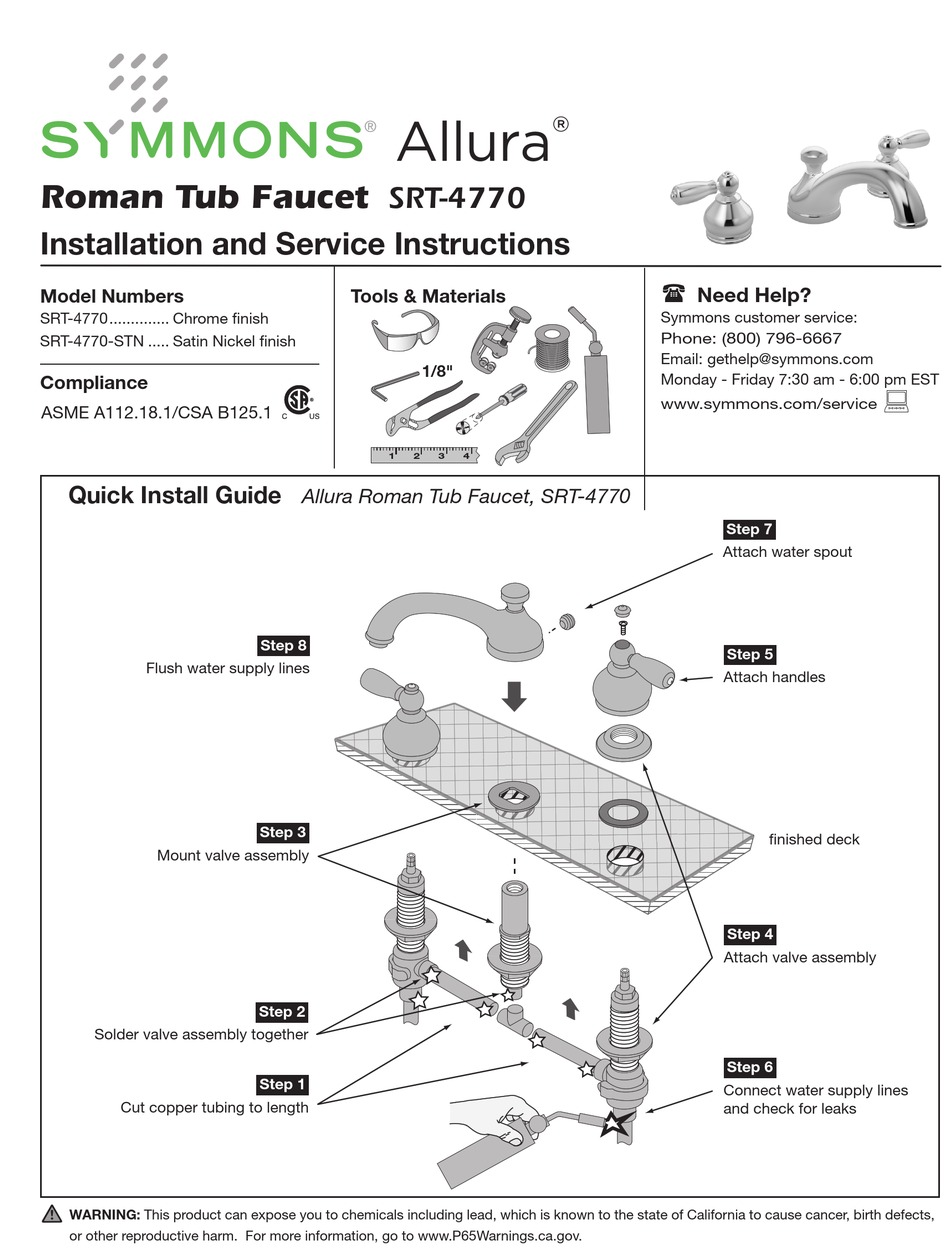

Quick Install Guide
Flush water supply lines
Mount valve assembly
Solder valve assembly together
Cut copper tubing to length
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects,
or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Allura
SRT-4770
Tools & Materials
1/8"
1 2 3
Allura Roman Tub Faucet, SRT-4770
Step 8
Step 3
Step 2
Step 1
®
4

Need Help?
Symmons customer service:
Phone: (800) 796-6667
Email: gethelp@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST
www.symmons.com/service
Step 7
Attach water spout
Step 5
Attach handles
Step 4
Attach valve assembly
Step 6
Connect water supply lines
and check for leaks

