NIMBO-26
LOUDSPEAKERS
Top Performance Cabinet Loudspeaker
USER MANUAL
50-0442-0100
NIMBO-26
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NIMBO-26 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecler NIMBO-26

  • Page 1 NIMBO-26 LOUDSPEAKERS Top Performance Cabinet Loudspeaker USER MANUAL 50-0442-0100 NIMBO-26...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PRECAUTIONS ..........................3 1.1 Important Notice ......................... 3 1.2 Key Safety Directions....................... 4 1.3 Cleaning Directions ........................4 2. PACKAGE CONTENTS ....................... 5 3. DESCRIPTION & FEATURES ....................6 3.1 Main Features ..........................6 4. CONNECTIONS ..........................7 4.1 Connections Diagram .......................
  • Page 3: Precautions

    WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre.
  • Page 4: Key Safety Directions

    Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. Do not use this device in proximity Refer all servicing to qualified personnel.
  • Page 5: Package Contents

    Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them.
  • Page 6: Description & Features

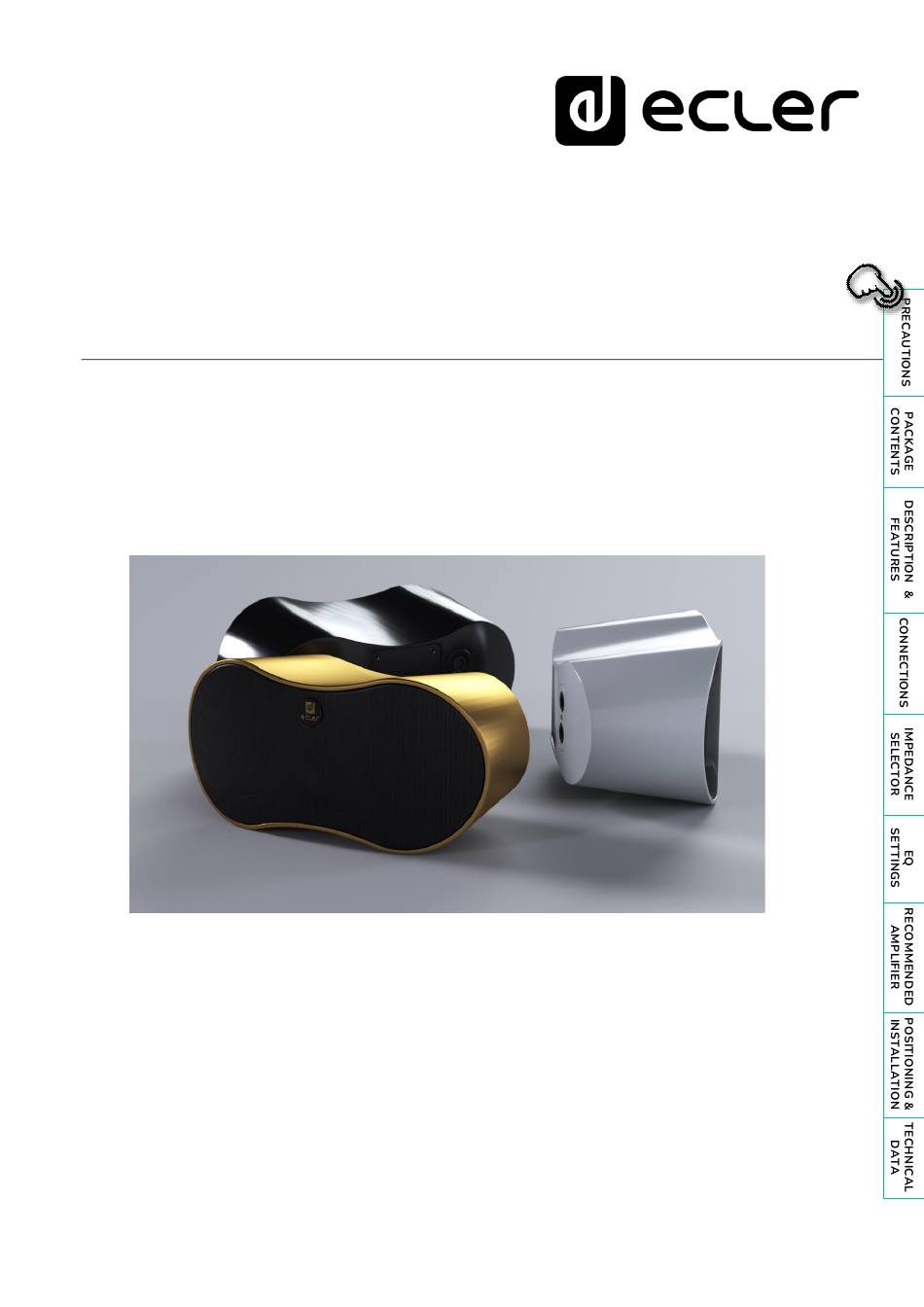

    3. DESCRIPTION & FEATURES NIMBO-26 is a premium performance 2-way passive loudspeaker with 140W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers.
  • Page 7: Connections

    4. CONNECTIONS The connection cables which connect the amplifiers output and the speaker should be of good quality, have sufficient conductor area and be as short as possible. The latter fact is especially important when the distance is long and the load impedance low (4-16 Ω). A cross-section of at least 2.5mm2 is recommended for distances up to 10m;...
  • Page 8: Connections Diagram

    4.1 Connections Diagram...
  • Page 9: Impedance Selector

    5. IMPEDANCE SELECTOR NIMBO-26 works in low impedance operation. In this matter, it has a 2-position switch on its front panel (behind the logo) that allows to select its working mode without removing the grill. 6. EQ SETTINGS Download the Ecler Loudspeakers EQ Settings file ready to import in EclerNet Manager software.
  • Page 10: Positioning & Installation

    Download all EASE files by clicking on the image: 8.2 Installation NIMBO-26 loudspeaker includes the VEASY wall bracket, VESA 100 compatible and easy to install. The robust VEASY wall bracket, allow tilt and pan adjustment using a single screw. Quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Page 11: Installation Diagram

    8.3 Installation Diagram Mounting the VEASY wall bracket. * Not included...
  • Page 12 REFERENCE TILT ORIENTATION REFERENCE PAN ORIENTATION...
  • Page 13: Technical Data

    9. TECHNICAL DATA 9.1 Technical Specifications NIMBO-26 SYSTEM Effective Freq. Range 60Hz-20kHz (-10dB) Coverage angle 210° x 228° (HxV) Power handling 140W RMS / 560 W Peak Sensitivity 92 db (1W/1m) Maximum SPL 113 dB continuous / 119 dB peak...
  • Page 14: Mechanical Diagram

    9.2 Mechanical Diagram All measurements are in mm.
  • Page 15 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain (+34) 932238403 information@ecler.com www.ecler.com...
