- Page 1 NIMBO-14 LOUDSPEAKERS Top Performance Cabinet Loudspeaker USER MANUAL 50-0443-0100 NIMBO-14...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTIONS..........................3 1.1 Important Notice ......................... 3 1.2 Key Safety Directions ....................... 4 1.3 Cleaning Directions ........................4 2. WARRANTY & ENVIRONMENT ....................5 3. PACKAGE CONTENTS ....................... 5 4. DESCRIPTION & FEATURES ....................6 4.1 Main Features ..........................6 5. -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. Do not use this device in proximity to Refer all servicing to qualified personnel. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features

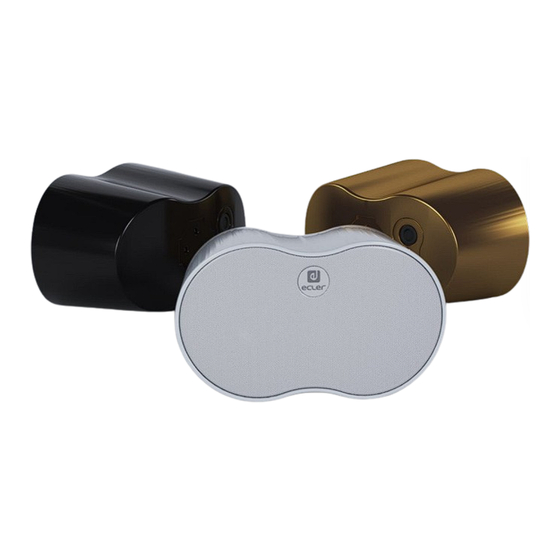

4. DESCRIPTION & FEATURES NIMBO-14 is a premium performance 2-way passive loudspeaker with 40W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers. -
Page 7: Connections
5. CONNECTIONS The connection cables which connect the amplifiers output and the speaker should be of good quality, have sufficient conductor area and be as short as possible. The latter fact is especially important when the distance is long and the load impedance low (8 Ω). A cross-section of at least 2.5mm2 is recommended for distances up to 10m;... -
Page 8: Connections Diagram
5.1 Connections Diagram... -
Page 9: Outdoor Installation
5.1 Outdoor installation... -
Page 10: Eq Settings
Download all EASE files by clicking on the image: 8.2 Installation NIMBO-14 loudspeaker includes a HANDY stainless steel wall bracket, easy to install that allows tilt and pan adjustment using a single screw. Quick and easy to install, including jumps and markings for repeating speaker orientation. -
Page 11: Installation Diagram
8.3 Installation Diagram Mounting the bracket * Not included... - Page 12 REFERENCE REFERENCE 0º TILT ORIENTATION REFERENCE 0º PAN ORIENTATION...
-
Page 13: Technical Data
9. TECHNICAL DATA 9.1 Technical Specifications NIMBO-14 SYSTEM Effective Freq. Range 75Hz-20kHz (-10dB) Coverage angle 128° x 196° (HxV) Power handling 40W RMS / 160 W Peak Sensitivity 81db (1W/1m) Maximum SPL 97dB continuous / 103 dB peak Recommended amplifier power... -
Page 14: Mechanical Diagram
9.2 Mechanical Diagram All measurements are in mm. Ecler NIMBO-14 Mechanical Diagram www.ecler.com 61-1121-0100... - Page 15 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain Tel. (+34) 932238403 information@ecler.com www.ecler.com...
