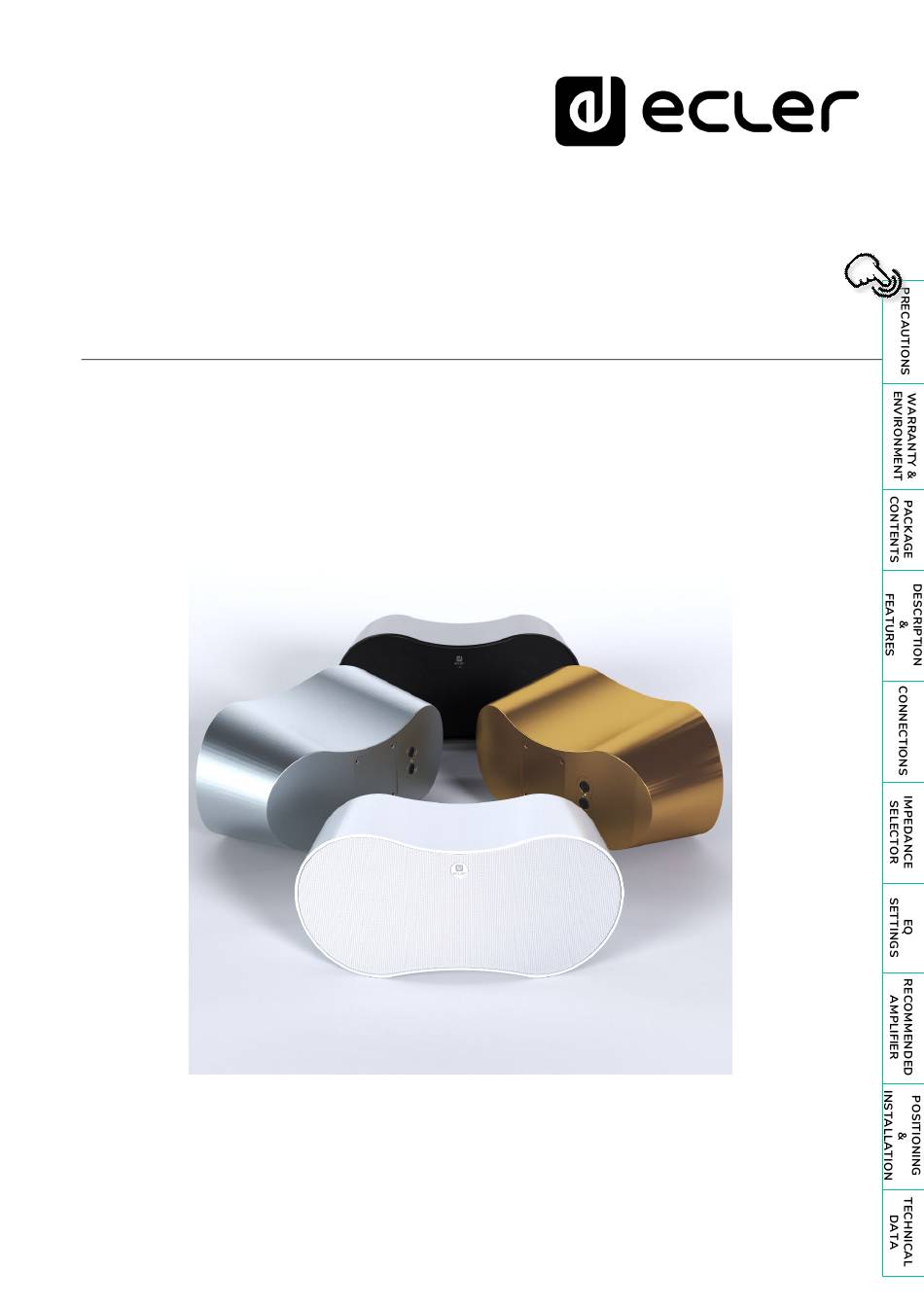

- Page 1 NIMBO-26 LOUDSPEAKERS Top Performance Cabinet Loudspeaker USER MANUAL 50-0442-0103 NIMBO-26...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS .......................... 3 1.1 Important Notice ......................... 3 1.2 Key Safety Directions ....................... 4 1.3 Cleaning Directions ........................4 WARRANTY & ENVIRONMENT .................... 5 PACKAGE CONTENTS ......................5 DESCRIPTION & FEATURES ....................6 4.1 Main Features ..........................6 CONNECTIONS ......................... -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. Do not use this device in proximity to Refer all servicing to qualified personnel. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features
NIMBO-26 is a premium performance 2-way passive loudspeaker with 140W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers. -
Page 7: Connections
5. CONNECTIONS The connection cables which connect the amplifiers output and the speaker should be of good quality, have sufficient conductor area and be as short as possible. The latter fact is especially important when the distance is long and the load impedance low (4-16 Ω). A cross-section of at least 2.5mm2 is recommended for distances up to 10m;... -
Page 8: Connections Diagram
5.1 Connections Diagram... -
Page 9: Outdoor Installation
5.1 Outdoor installation... -
Page 10: Impedance Selector
NIMBO-26 works in low impedance operation. In this matter, it has a 2-position switch on its front panel (behind the logo) that allows to select its working mode without removing the grill. 7. EQ SETTINGS Download the Ecler Loudspeakers EQ Settings file ready to import in EclerNet Manager software. 8. RECOMMENDED AMPLIFIER... -
Page 11: Positioning & Installation
9. POSITIONING & INSTALLATION 9.1 Positioning Consider following general rules. Place the speaker on a solid and firm surface. No obstacles should stand between the enclosures and the audience. The high frequencies are very directive compared to the low frequencies, so that any obstacle will impair their response. In case large audiences must be addressed, a better long distance sound propagation will be achieved if the enclosures are flown high enough. -
Page 12: Installation Diagram
9.3 Installation Diagram Mounting the VEASY wall bracket. Not Included * Not included... - Page 13 0º REFERENCE REFERENCE TILT ORIENTATION 30º 37.5º 22.5º 45º 15º 7.5º 0º REFERENCE REFERENCE PAN ORIENTATION...
-
Page 14: Technical Data
10. TECHNICAL DATA 10.1 Technical Specifications NIMBO-26 SYSTEM Effective Freq. Range 60Hz-20kHz (-10dB) Coverage angle 210° x 228° (HxV) Power handling 140W RMS / 560 W Peak Sensitivity 92 db (1W/1m) Maximum SPL 113 dB continuous / 119 dB peak Recommended amplifier power 280W RMS TRANSDUCERS... -
Page 15: Mechanical Diagram
10.2 Mechanical Diagram All measurements are in mm. Ecler NIMBO-26 Mechanical Diagram 542,5 www.ecler.com 61-1008-0100... - Page 16 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain (+34) 932238403 information@ecler.com www.ecler.com...
