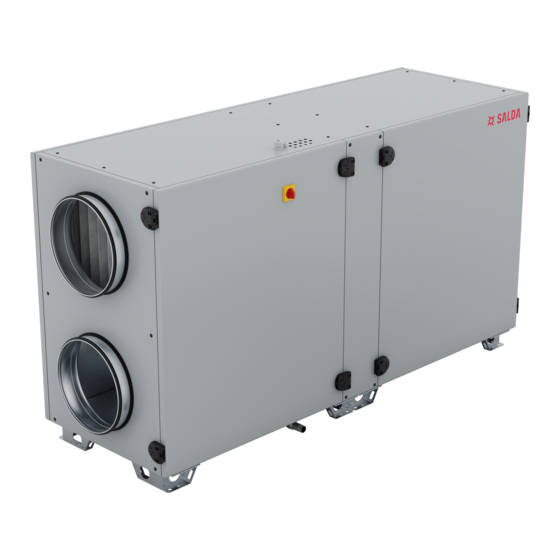

AMBERAIR COMPACT CX H
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMBERAIR COMPACT CX H and is the answer not in the manual?

Questions and answers

Related Manuals for Salda AMBERAIR COMPACT CX H

Summary of Contents for Salda AMBERAIR COMPACT CX H

  • Page 1 AMBERAIR COMPACT CX H MOUNTING AND INSTALLATION INSTRUCTION...

  • Page 2: Table Of Contents

    8. ACCESSORIES 8.1. CONNECTION OF ACCESSORIES 8.1.1. ELECTRICAL DIANGRAMS AND ABBREVIATION IN ELECTRICAL CIRCUIT DIAGRAMS 9. SPARE PARTS 10. POSSIBLE FAULTS AND TROUBLESHOOTING 11. DECLARATION OF CONFOMITY 12. WARRANTY 12.1. LIMITED WARRANTY COUPON | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 3: Symbols And Marking

    AmberAir Compact SD50+ units designed of the VDI 6022 Part 1 guideline (Hygiene require- ments for ventilation and air-conditioning systems and units) SALDA world like to inform you that based on the Commission Regulation (EU) No 1253/2014 for enforcing directive 2009/125/EC (hereinafter referred to as ErP diretive), the operational area of certain AHU within the European Union is regulated by certain conditions.

  • Page 4: Safety Instructions And Precautions

    In exceptional cases harmful gases could be drawn out of the chimney or extraction ducting back into the room. In this case we strictly recommend to turn off Salda Antifrost and use an external preheater for heat exchanger anti-frost protection (see Salda Antifrost function on the Remote controller manual).

  • Page 5: Information About The Product

    4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION AmberAir Compact CX H include the following model options: Model: CX H Model box: SD50+ (T2TB1), SD50 (T3 TB4), MD50+(T3 TB1), MD50(T3 TB4). Heating electric coil: EL1 (low power), EL2 ( medium power), EL3 ( high power).

  • Page 6: Technical Data

    3~ / 230 10,26 / 31,47 4 CXH F1,F3 W 2,56 11,2 1~ / 230 3,06 / 13,37 4 CXH F2 E1 5,86 3~ / 400 8,67 3~ / 400 10,3 / 16,7 | EN AMBERAIR COMPACT CX H v2019.08...
  • Page 7 3~ / 230 22,39 / 58,17 7 CXH F4 W 6,89 18,3 3~ / 230 7,39 / 20,47 FILTER DATA Filter code Type Width, [mm] Height, [mm] Depht, [mm] Bag nr. Class* Efficiency* AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 8: Operating Conditions

    14 - control box; 15 - mountaining base; 16 - supply air temperature sensor; 17 - outdoor air temperature sensor; 18 - after rotor temperatre sensor; 19 - exhaust air tempetarure sensor; 20 - extract air temperature and humidity sensor DTJ. | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 9: Instalation

    The inner legs of the product of AmberAir Compact 1-5 CX H versions are covered with protection to prevent damage of the condensate drainage pipes. Therefore, when lifting with a forklift, the width of the fork must be greater than the condensate protection width. AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 10: Unpacking

    Fig. 5.2.3 AmberAir Compact 1-5 CX H lifting with slings Fig. 5.2.4 AmberAir Compact 6-7 CX H lifting with slings 5.3. UNPACKING • Remove the film from the unit. • Remove the tightening packaging tapes which keep the protective profiles. | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 11: Mounting Diagram

    W1 > W2 > W1>W2 Fig. 5.3.2 AmberAir Compact 6-7 CX H 5.4. MOUNTING DIAGRAM W1>W2 W1>W2 PS3+ PE1* KV2* Stouch PS3- > PC MB-Gateway > NET > SALDA AIR Fig. 5.4.1 Electrical version AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 12: Mounting

    • Enough space must be left for opening of the maintenance door and filter covers. • If the installed ventilation unit is adherent to the wall, it may transmit noise vibrations to the premises. Though the level of noise caused by the | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 13: Place Requirements For The Equipment And Mounting Positions

    4. They must be adjusted without a gradient (because a gradient of 3° is aligned in the condensate drip trays). 5. Leave space in the front (1,5xL) that it would be sufficient to open the doors and to remove or install a required component. AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 14: Drainage

    (1) of the heat recovery unit. • Two siphons are used at each AmberAir Compact CX H product because two condensate drip trays are installed at each of those units). • The siphon (2) is connected with the sewage system via a pipe (3), which can be made either of metal, plastic or rubber. It should have a gradient of at least 3°...

  • Page 15: Roof Mounting

    • Necessarily check out the AHU version, because the mounting sequence depends on it. • Pay attention to the internal holders’ mounting to the units’ casing. Fig. 5.5.7.1 AmberAir Compact 1-5 CX H AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 16: Connection Of The Unit To Electric Network

    • operation systems and unit elements as well as automation and automation devices were not damaged during installation, • all electrical devices are connected to power supply and fit for service, • all necessary automation elements are installed and connected to power supply and MCB, EX1, EX2 terminal blocks, | EN AMBERAIR COMPACT CX H v2019.08...
  • Page 17 • all electrical equipment protection elements are properly connected (if they are additionally used), • cables and wires correspond to all applicable safety and functional requirements, diameters, etc., • earthing and protection systems are properly installed, • condition of all seals and sealing surfaces is correct. AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 18: Maintenance

    (C) Opening of the heat exchangers’ doors. If the AHU is equipped by electrical heater, then, in order to open the doors just unscrew all 4 holding handles (II, III) and take off the doors (IV). In case of water heater – unscrew pipe sealing half-rings (I) firstly. | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 19: Filters Maintenance

    It is recommended to change the filters every 3 - 4 months, or according to filter timer, or filter pressure relay or pressure transmitter indication in remote control panel or BMS. 6.5. FILTER BOX MAINTENANCE • The cover is unscrewed and removed using a key. • The filters are removed. AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 20: Fans Maintenence

    (when pressure switches are connected). When there is a fault in fan’s motor, any separate notice is shown on the control panel. • Before starting the unit, make sure that no tools or other foreign items are left. Fig. 6.6.1 AmbertAir Compact 1-5 CX H | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 21: Air Damper Maintenance

    • Carefully remove the heat exchanger cartridge and immerse it in a container with soapy water (do not use soda). Then wash the cartridge with a weak hot water flow (excessively strong water flow may bend its plates). The heat exchanger may be installed into the unit only when it is completely dry. AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 22: Control Board Maintenance

    • Before installing heater back, please pay attention at the airflow direction markings. • Turn off the main circuit breaker of the product. • Open the doors of the product. • Disconnect the supply and return water pipelines. • Remove the heater. | EN AMBERAIR COMPACT CX H v2019.08...
  • Page 23 AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 24: Control

    Full access to the information and settings are available on SA-Control, MB-GATEWAY WEB application and SALDA AIR mobile application. 2. Unit configuration (internal/external components, sensors and control board settings) | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 25: Accessories

    ACC004460 Actuator for damper (4 Nm, spring, on-off) LF230 ACC000309 Actuator for damper (2 Nm, spring, on-off) TF230 ACC000316 Actuator for damper (10 Nm, spring, on-off) NF230A ACC001657 Actuator NM230A-TP ACC004384 MECHANICAL ACCESSORIES AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 26: Connection Of Accessories

    DX cooler reserve mode (NO – cooling / NC – Exhaust air damper X40 [1:2] heating) Fire alarm X41 [1:2] DX cooler power supply Fireplace protection Transmitter1 Exhaust air RH sensor START Operation indicator Transmitter2 Exhaust air CO sensor STOP Alarm indicator | EN AMBERAIR COMPACT CX H v2019.08...
  • Page 27 - N3 - N2 - N2 - N2 EX1 V1.0 EX1 V1.0 EX1 V1.0 EX2 V1.0 EX1 V1.0 EX1 V1.0 EX1 V1.0 0-10 VDC 0-10 VDC 24VDC 24VDC -M16 Fig. 8.1.1.2 External water pre-heater AMBERAIR COMPACT CX H v2019.08 EN |...
  • Page 28 EX2 V1.0 0-10 VDC 24VDC -M16 -M14 Fig. 8.1.1.3 External water cooler - N2 - N2 EX1 V1.0 EX1 V1.0 EX2 V1.0 EX2 V1.0 Jumper* 0-10 VDC 24VDC Fig. 8.1.1.4 External DX cooler | EN AMBERAIR COMPACT CX H v2019.08...
  • Page 29 Fig. 8.1.1.5 Fire protection connection Fig. 8.1.1.6 Motorised air dampers AMBERAIR COMPACT CX H v2019.08 EN |...
  • Page 30 *The jumpers are installed by the manufacturer (see on the automatics switchboard). *All the external electrical connections must be made in accordance with effective legal acts and safety requirements. *The configuration and control of accessories is presented in the section “Functions” of this Certificate. | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 31: Spare Parts

    Sectional Recir- Control Electric Water Heat Damper damper damper culation board heater heater Exchanger actuator damper Wire har- Water Panel filter Pocket temper- Thermo- ness temper- filter FMK ature stat ature sensor sensor AMBERAIR COMPACT CX H v2019.08 EN |...

  • Page 32: Possible Faults And Troubleshooting

    Wrong time in filter timers or their switch is clogged filters or replace the pressure switch shown on the remote control broken, or its pressure is set improperly. of the filters, or set their proper pressure. | EN AMBERAIR COMPACT CX H v2019.08...

  • Page 33: Declaration Of Confomity

    LST EN 61000-6-3:2007 - Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial environments. Should any alterations be made in the products, this declaration will no longer apply. Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015. Date 2019-02-01...

  • Page 34: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a control system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 35 AMBERAIR COMPACT CX H v2019.08...
  • Page 36 Every 3-4 Filter replacement months** * - Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000201 MAN000201 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
