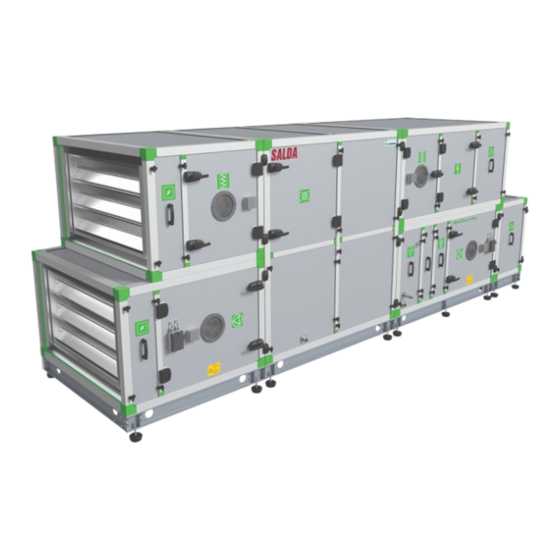

AMBERAIR
EN
ROOF ASSEMBLY MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMBERAIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Salda AMBERAIR

Summary of Contents for Salda AMBERAIR

  • Page 1 AMBERAIR ROOF ASSEMBLY MANUAL...

  • Page 2: Table Of Contents

    1. CONTENTS 2. GENERAL DESCRIPTION 3. SAFETY INFORMATION 4. ROOF PARTS LIST FOR STANDARD AHU CONFIGURATION 5. ROOF ASSEMBLY FOR STANDARD AHU CONFIGURATION 6. ROOF PARTS LIST FOR SIDE BY SIDE AHU CONFIGURATION 7. ROOF ASSEMBLY FOR SIDE BY SIDE AHU CONFIGURATION 8.

  • Page 3: General Description

    2. GENERAL DESCRIPTION Roof used to protect unit from precipitation. All outdoor design unit sizes have double slope roof. 3. SAFETY INFORMATION Refer to main AHU manual for safety information. 4. ROOF PARTS LIST FOR STANDARD AHU CONFIGURATION Table 4.1 shows general drawings of the roof parts that can be supplied with the unit. Exact number of supplied parts depends on the configuration of the AHU.

  • Page 4: Roof Assembly For Standard Ahu Configuration

    Self-tapping screw Depends on the unit’s GTX3 4,8x25 size 5. ROOF ASSEMBLY FOR STANDARD AHU CONFIGURATION 1. There are roof support strips (installed at factory) on the top of the outdoor unit, as shown in Figure 5.1. Figure 5.1 2. Connect longitudinal edge supports 2-1, 2-2 to the rear supports 7-1, 7-2 and 6-1-transverse supports using self-taping screws supplied with the unit as shown in Figure 5.2 (I and II).
  • Page 5 2-1 - longitudinal front edge support; 2-2 - longitudinal middle edge support; 3-1, 4-1, 5-1-longitudinal front supports; 3-2, 4-2, 5-2 -longitudinal middle supports; 6-1-transverse support; 7-1, 7-2 – rear support. 5. Center and attach frame to the unit using self-taping screws supplied with the unit. 6.

  • Page 6: Roof Parts List For Side By Side Ahu Configuration

    Figure 5.5 9. Fit the profile cover L1200 on segments in the middle and attach to the segments by self-taping screws supplied with the unit as shown in Figure 5.6. If it is too long, cut it. Figure 5.6 6. ROOF PARTS LIST FOR SIDE BY SIDE AHU CONFIGURATION Table 6.1 shows general drawings of the roof parts that can be supplied with the unit.
  • Page 7 Longitudinal middle Depends on the unit’s Used on unit’s edges edge support configuration Side by side longi- Depends on the unit’s tudinal middle edge Used on unit’s edges configuration support Longitudinal front Depends on the unit’s Used in the center of support configuration the unit...

  • Page 8: Roof Assembly For Side By Side Ahu Configuration

    Segment width de- Depends on the unit’s Roof segment pends on the width of configuration the unit Depends on the unit’s Profile cover L1200 1200 configuration Depends on the unit’s Sealing strip 18x8 configuration Self-tapping screw Depends on the unit’s GTX3 4,8x25 size 7.
  • Page 9 supports using self-tapping screws supplied with the unit and connect end-to-end edge supports 2-1, 2-2 as shown in Figure 7.2. (III). 4. The combined entire frame of the details must be centered according to the length of the unit, the distance A must be the same on both sides as shown in Figure 7.2.

  • Page 10: Roof Parts List For Corner Section

    Figure 7.5 1-3, 1-4, 2-3, 2-4, 5-3, 5-4 - roof segments 11. Assemble the opposite side of the roof segments in the same way as the first one. Complete frame assembly is shown in Figure 7.6. 12. Apply supplied sealing strip 18x8 on segments in the middle, as shown in Figure 7.6. Figure 7.6 13.
  • Page 11 Longitudinal front Depends on the unit’s Length depends on support configuration the width of the unit. Longitudinal middle Depends on the unit’s Length depends on outer corner sup- configuration the width of the unit. port Depends on the unit’s Length depends on Transverse support configuration the width of the unit.

  • Page 12: Roof Assembly For Corner Section

    9. ROOF ASSEMBLY FOR CORNER SECTION 1. There are roof support strips (installed at factory) on the top of the outdoor unit, as shown in Figure 9.1. Figure 9.1 2. Start the assembly from the corner section. Connect longitudinal front and middle supports 8-1, 8-2, 8-3, 8-4 to the 6-1-transverse supports using self-taping screws supplied with the unit as shown in Figure 9.2.
  • Page 13 Figure 9.3 5. Start fit the roof segments from the corner section. Fit the roof segments and attach to the frame by self-taping screws supplied with the unit as shown in Figure 9.4. Figure 9.4 8-10, 8-11 – quadrangular roof segments; 8-12, 8-13, 8-14, 8-15 - triangle roof segments. 6.
  • Page 14 7. Apply supplied sealing strip 18x8 on segments in the middle, as shown in Figure 9.6. Figure 9.6 8. Fit the profile cover L1200 on segments in the middle and attach to the segments by self-taping screws supplied with the unit as shown in Figure 9.7.

  • Page 15: Roof Parts List For Widened Section

    Figure 9.8 10. ROOF PARTS LIST FOR WIDENED SECTION Table 10.1 shows general drawings of the roof parts that can be additionally supplied with the unit for widened section. Exact number of supplied parts depends on the configuration of the AHU. Part numbers are carved on the parts. Table 10.1 Roof parts list PART QUANTITY, PCS...

  • Page 16: Roof Assembly For Widened Section

    Widened rear sup- Depends on the unit’s W7-1 Length depends on port configuration W7-2 the width of the unit. W1-3 W1-4 W2-3 W2-4 Segment width de- Widened roof seg- Depends on the unit’s W3-3 pends on the width of ment configuration W3-4 the unit...
  • Page 17 Figure 11.2 W2-1 - longitudinal front edge support; W2-2 - longitudinal middle edge support; W1-1-longitudinal front supports; W1-2-longitudinal middle supports; W6-1-transverse support; W7-, W7-2 – rear support. 4. The combined entire frame of the details must be centered according to the length of the unit, the distance A must be the same on both sides as shown in Figure 11.2.
  • Page 18 Figure 11.4 8. Fit the roof segments of a certain width with the same spacing of the frame and attach to the frame by self-taping screws supplied with the unit as shown in Figure 11.5. Figure 11.5 9. Apply supplied sealing strip 18x8 on segments in the middle, in accordance with clauses 8 of Chapter 4. Fit the profile cover L1200 on segments in the middle attach to the segments by self-taping screws supplied with the unit, in accordance with clauses 9 of Chapter 5.
  • Page 19 ROOF ASSEMBLY MANUAL v2019.2...
  • Page 20 MAN000009 MAN000009 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
