INSTALLATION AND MAINTENANCE INSTRUCTIONS
L-Series Color Lenses (Xenon)
For use with the following models:
LENS-A2, LENS-B2, LENS-G2, LENS-R2, LENS-AC2, LENS-BC2, LENS-GC2, LENS-RC2
GENERAL DESCRIPTION
L-Series color lenses come in four colors options including amber, blue, green
and red. The lenses are compatible with L-Series strobes including wall or
ceiling mount. Note that color lenses must only be used with devices that are
not fire printed.
Color lens strobes are UL Listed under 1638 (Visual Signaling Appliances)
for Private Mode General Utility Signaling. UL 1638 measures light output of
strobe devices on-axis (straight on). See table below for candela color de-
ratings. Each candela rating shall be reduced by the listed percentages below
for Xenon wall units only.
NOTE: No de-rating required for ceiling units.
TABLE 1. CANDELA DE-RATING BY LENS COLOR
Lens Effective Light Loss
Color for Xenon Wall Units
Amber 0%
Blue -40%
Green -65%
Red -85%
Not to be used as a Visual Public Mode Alarm Notification Appliance.

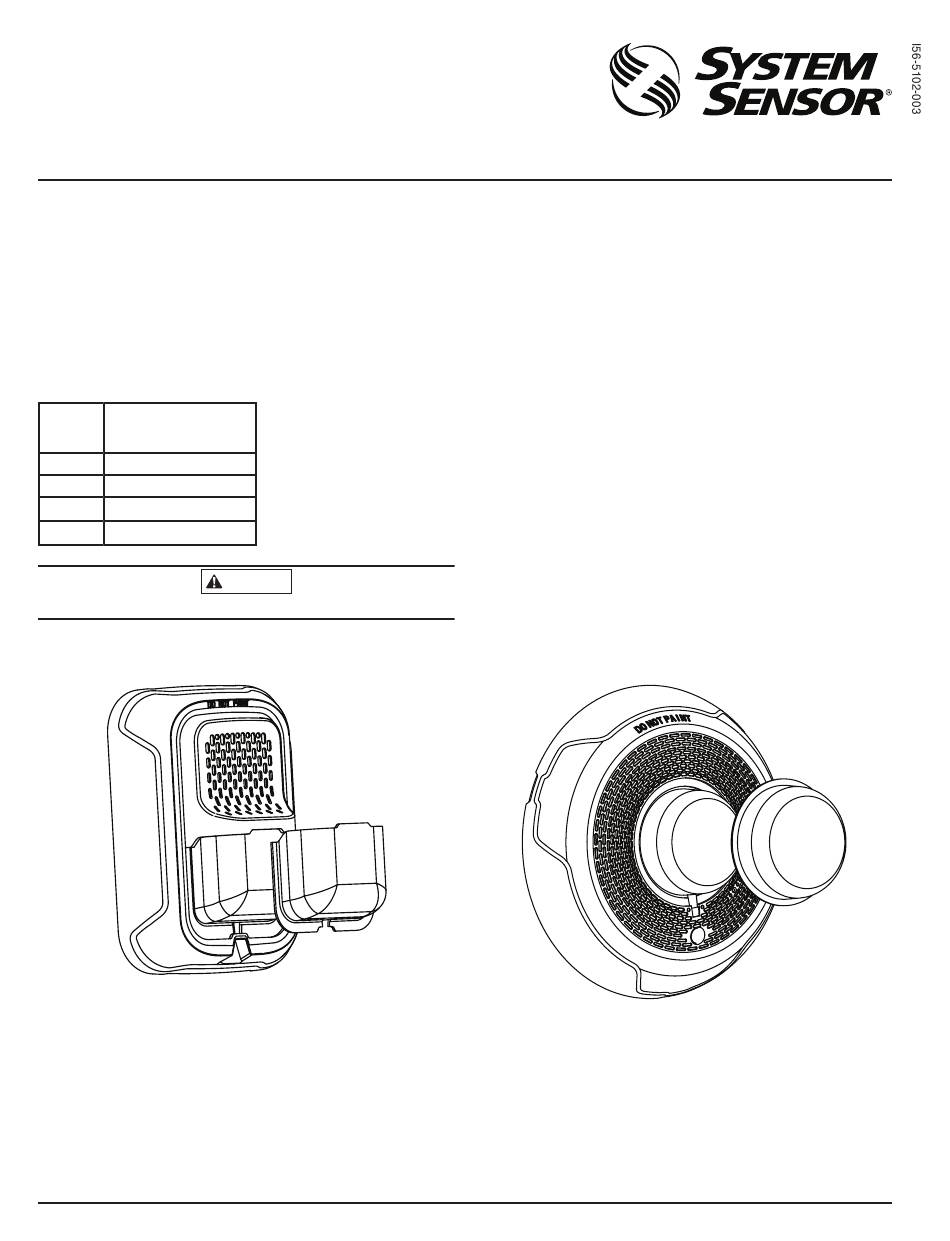

FIGURE 1. COLOR LENS INSTALLATION TO LEGACY WALL MOUNT
DEVICE (XENON)
System Sensor ® is a registered trademark of Honeywell International, Inc.
WARNING
INSTALLATION
For L-Series models, please follow the instructions below for installing colored
lenses.
1. Before applying the color lens to the strobe, clean the area around the
strobe lens.
2. Remove the red liner from the back of the color lens gently. Make sure that
the clear adhesive is still attached to the bottom flat surface of the lens.
3. Align the slot on the color lens with the candela indicator window on the unit.
This is a mistake-proof step only on the wall units.
4. Apply and press the lens against the unit.
FIGURE 2. COLOR LENS INSTALLATION TO LEGACY CEILING MOUNT
DEVICE (XENON)
A0512-00
