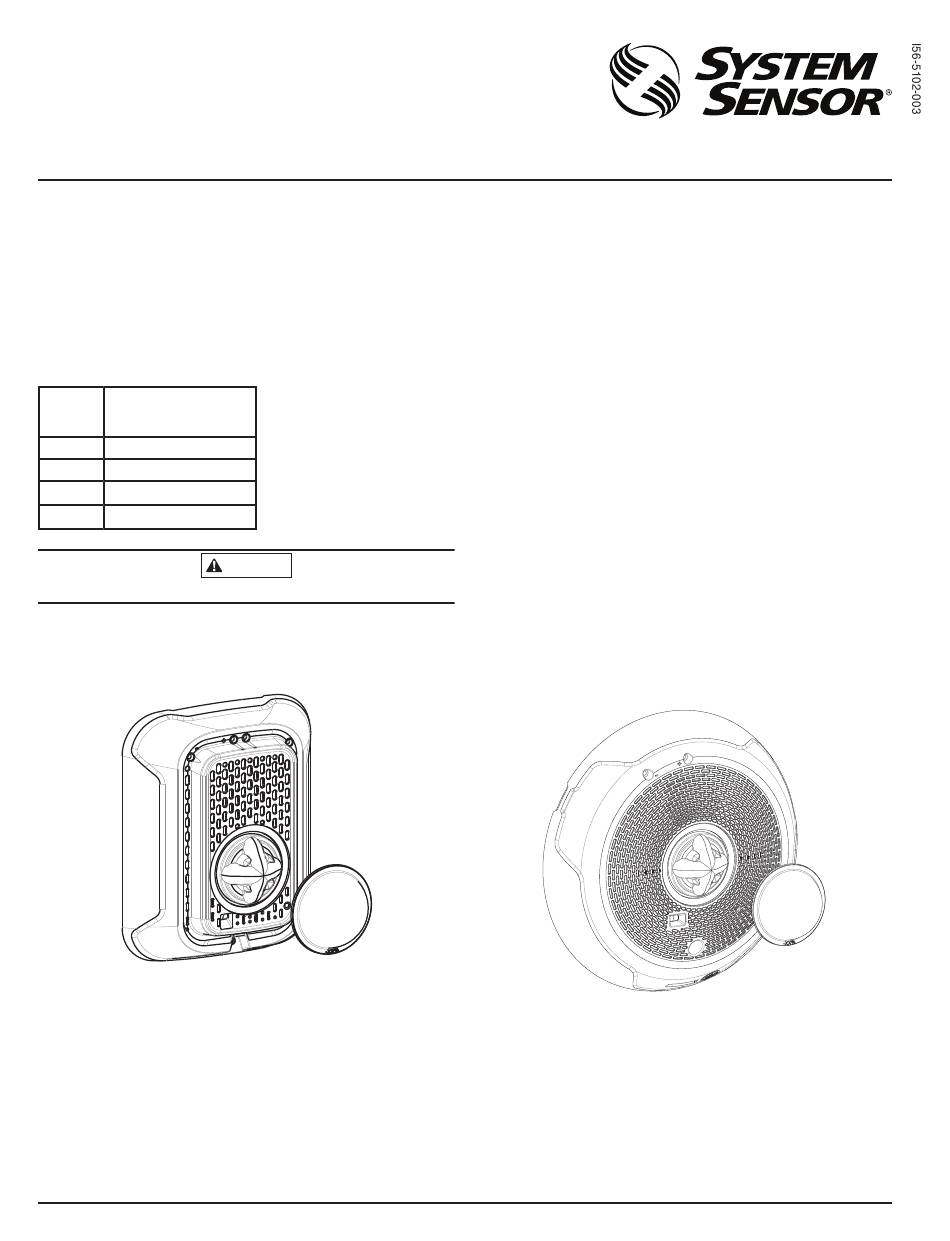

System Sensor L Series Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
L-Series with LED
Color Lenses
For use with the following models:
LENS-A3, LENS-B3, LENS-G3, LENS-R3
GENERAL DESCRIPTION
L-Series color lenses come in four colors options including amber, blue, green
and red. The lenses are compatible with L-Series strobes including wall or
ceiling mount. Note that color lenses must only be used with devices that are
not fire printed.
Color lens strobes are UL Listed under 1638 (Visual Signaling Appliances)
for Private Mode General Utility Signaling. UL 1638 measures light output of
strobe devices on-axis (straight on). See table below for candela color de-
ratings. Each candela rating shall be reduced by the listed percentages below.
TABLE 1. CANDELA DE-RATING BY LENS COLOR
Lens Effective Light Loss
Color for LED Units
Amber 0%
Blue 0%
Green -55%
Red -65%
Not to be used as a Visual Public Mode Alarm Notification Appliance.

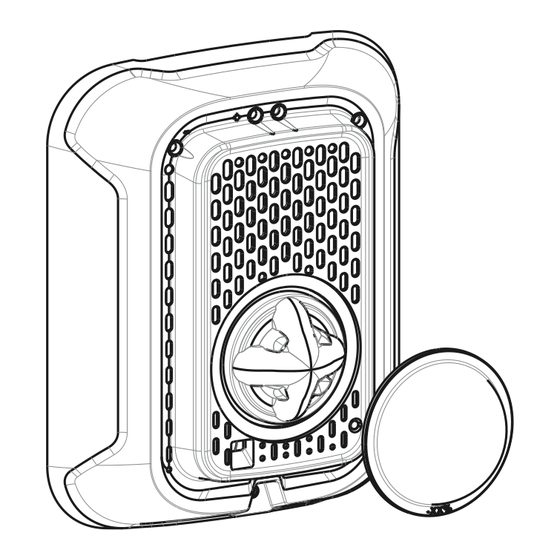

FIGURE 1. COLOR LENS INSTALLATION TO LED WALL MOUNT DEVICE
System Sensor ® is a registered trademark of Honeywell International, Inc.
WARNING
INSTALLATION
For L-Series models, please follow the instructions below for installing colored
lenses.
1. Before applying the color lens to the strobe, clean the area around the
strobe lens.
2. Remove the red liner from the back of the color lens gently. Make sure that
the clear adhesive is still attached to the bottom flat surface of the lens.
3. Center the lens with respect to the countersink around the lens on the
device.
4. Apply and press the lens against the unit.
NOTE: Installing the lens adds about 0.125" (3.12mm) to appliance height.
FIGURE 2. COLOR LENS INSTALLATION TO LED CEILING MOUNT
DEVICE
A0629-00
1
3825 Ohio Avenue, St. Charles, Illinois 60174
800/736-7672, FAX: 630/377-6495
www.systemsensor.com
I56-5102-003
©2023 System Sensor. 9/5/2023
