INSTALLATION AND MAINTENANCE INSTRUCTIONS
ENGLISH

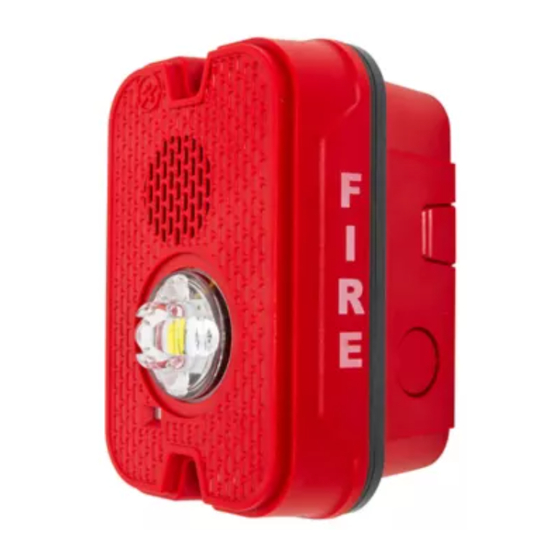

L-Series with LED
Outdoor Selectable-Output
Horn Strobes and Strobes
Manual is for use with the following models:
Horn Strobes
Compact Wall Mount Horn Strobes: P2GRKLED, P2GRKLED-P, P2GRKLED-B, P2GWKLED, P2GWKLED-P, P2GWKLED-B
Standard Ceiling Mount Horn Strobes: PC2RKLED, PC2RKLED-P, PC2RKLED-B, PC2WKLED, PC2WKLED-P, PC2WKLED-B
Two-Wire Strobes
Compact Wall Mount Strobes: SGRKLED, SGRKLED-P, SGRKLED-B, SGWKLED, SGWKLED-P, SGWKLED-B, SGBKLED*
Standard Ceiling Mount Strobes: SCRKLED, SCRKLED-P, SCRKLED-B, SCWKLED, SCWKLED-P, SCWKLED-B
Language designators: "-B" are bilingual (English/French). "-P" are plain versions (no wording).
NOTE: When replacing outdoor units; device and back box must be replaced.
*NOTE: Model SGBKLED is UL listed for General Signaling
Section 1: Introduction .................................................................................................................................................. 2
1.1 Product Specifications .......................................................................................................................................................2
1.2 Dimensions and Mounting Options ...................................................................................................................................2
1.3 Before Installing ................................................................................................................................................................2
1.4 General Description ..........................................................................................................................................................2
1.5 Fire Alarm System Considerations ....................................................................................................................................2
1.6 System Design ..................................................................................................................................................................3
Section 2: Configurations for Notification Appliances ............................................................................................... 4
2.1 Available Tones .................................................................................................................................................................4
2.2 Available Candela Settings ...............................................................................................................................................4
2.3 Current Draw and Audibility ratings ...................................................................................................................................5
Section 3: Installation .................................................................................................................................................... 7
3.1 Wiring and Mounting .........................................................................................................................................................7
3.2 Wiring Diagrams ................................................................................................................................................................7
3.3 Install Back Box .................................................................................................................................................................7
3.4 Install Weatherproof Back Plate and Appliance ................................................................................................................8
LED L-series Outdoor Horn Strobes and Strobes - P/N I56-0040-000 5/6/2024
Table of Contents
3825 Ohio Avenue, St. Charles, Illinois 60174
800/736-7672, FAX: 630/377-6495
www.systemsensor.com
1
Advertisement
Table of Contents
Related Manuals for System Sensor L Series
Summary of Contents for System Sensor L Series
-
Page 1: Table Of Contents
INSTALLATION AND MAINTENANCE INSTRUCTIONS ENGLISH L-Series with LED Outdoor Selectable-Output 3825 Ohio Avenue, St. Charles, Illinois 60174 800/736-7672, FAX: 630/377-6495 Horn Strobes and Strobes www.systemsensor.com Manual is for use with the following models: Horn Strobes Compact Wall Mount Horn Strobes: P2GRKLED, P2GRKLED-P, P2GRKLED-B, P2GWKLED, P2GWKLED-P, P2GWKLED-B Standard Ceiling Mount Horn Strobes: PC2RKLED, PC2RKLED-P, PC2RKLED-B, PC2WKLED, PC2WKLED-P, PC2WKLED-B Two-Wire Strobes Compact Wall Mount Strobes: SGRKLED, SGRKLED-P, SGRKLED-B, SGWKLED, SGWKLED-P, SGWKLED-B, SGBKLED*... -
Page 2: Section 1: Introduction
ANSI/UL 464/ULC 525 requirements (public mode) and the strobe is listed to ANSI/UL 1638/ULC 526 (public mode). System Sensor notification appliances are designed to be used in 24VDC systems. System Sensor AV devices can be activated by a compat- ible fire alarm control panel or power supply. -
Page 3: System Design
The current draw information for making these calculations can be found in the tables within the manual. For convenience and accuracy, use the voltage drop calculator on the System Sensor website (www.systemsensor.com). -
Page 4: Section 2: Configurations For Notification Appliances
2.1 Available Tones System Sensor offers a wide variety of tones for your life safety needs. Temporal 3 pattern is specified by ANSI and NFPA 72 for standard emergency evacuation signaling: ½ second on, ½ second off, ½ second on, ½ second off, ½ second on, 1½ off, and repeat. -
Page 5: Current Draw And Audibility Ratings
Current Draw and Audibility ratings Configurations for Notification Appliances Figure 4 Light Output – Vertical Dispersion, Wall to Floor Figure 5 Light Output – Vertical Dispersion, Ceiling to Walls to Floor Degrees* Percent of Rating Degrees* Percent of Rating 5-30 5-25 30-45 *Tolerance of ±1 degree is permitted. - Page 6 Configurations for Notification Appliances Current Draw and Audibility ratings Table 3 UL/ULC Maximum Horn Strobe Current Draw (mA) and Sound Output (dBa) Sound Current Draw (mA RMS), Horn Strobe, Output Candela Range (15-185 cd), FCP* (dBA) 16-33 Volts 16-33 V Volume Tone 110cd...
-
Page 7: Section 3: Installation
Section 3: Installation 3.1 Wiring and Mounting All wiring must be installed in compliance with the National Electric Code (UL applications), (Canadian Electric Code (ULC applications), and local codes as well as the authority having jurisdiction. Wiring must not be of such length or wire size which would cause the notifica- tion appliance to operate outside of its published specifications. -
Page 8: Install Weatherproof Back Plate And Appliance
Installation Install Weatherproof Back Plate and Appliance – Threaded knockout holes are provided for the sides of the box for ¾ inch and ½ inch conduit adapter. Knockout holes in the back of the box can be used for ¾ inch and ½ inch rear entry. –... - Page 9 Install Weatherproof Back Plate and Appliance Installation Figure 12 Knockout and V500/V700 Removal for Surface Mount Back Box Figure 12A Knockout size Figure 12B Wire Mold Removal ½ inch or ¾ inch A0465-01 NOTE: Use caution not to strike the knockout near the top edge of the A0466-01 wall version of the surface mount back box.
- Page 10 The horn may not be heard by persons who are hearing impaired. supplies produce interrupted power. The strobe must have an uninterrupted source of power in order to operate correctly. System Sensor recommends that the horn and NOTE: Strobes must be powered continuously for horn operation.
