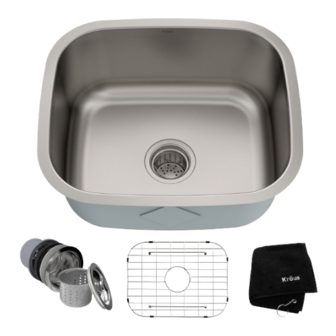

Kraus KBU11 Installation Manual
Stainless steel undermount kitchen sink
Hide thumbs
Also See for KBU11:
- Installation manual (33 pages) ,
- Installation manual (13 pages) ,
- Installation manual (16 pages)
Advertisement
Quick Links
R
INSTALLATION MANUAL
Kraus Stainless Steel
Undermount Kitchen Sink
KBU11 / KBU12 / KBU14 / KBU15 /
KBU16 / KBU17 / KBU21 / KBU22 / KBU24 /
KBU25 / KBU27 / KBU29 / KBU32
www.kraususa.com
I
Toll Free: 1.800.775.0703
I
© 2024 Kraus USA Plumbing LLC
I
REV. January 22, 2024
Advertisement
Related Manuals for Kraus KBU11
Summary of Contents for Kraus KBU11
- Page 1 INSTALLATION MANUAL Kraus Stainless Steel Undermount Kitchen Sink KBU11 / KBU12 / KBU14 / KBU15 / KBU16 / KBU17 / KBU21 / KBU22 / KBU24 / KBU25 / KBU27 / KBU29 / KBU32 www.kraususa.com Toll Free: 1.800.775.0703 © 2024 Kraus USA Plumbing LLC...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 3 Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
-
Page 4: Tools You Will Need
Silicone Adhesive Tape Measure Putty Knife Pencil Scissors Screwdriver Closed Toe Shoes NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount sinks with countertop materials other than wood, marble or granite. Dimensions 21" 534mm 18 3/4" 23"... - Page 5 Dimensions 29 1/2" 13" 750mm 17 3/4" 330mm 450mm 31 1/2" 15" 19 3/4" 800mm 381mm 500mm KBU14 KBU15 KBU16 31 1/2” x 18 3/8” x 10” 19 3/4” x 20 1/2” x 9” 15” x 18 1/2” x 7” Min Cabinet Size: 36”...
- Page 6 Dimensions 11 3/8" 17 3/4" 17 3/4" 10 1/2" 290mm 450mm 450mm 266mm 31 1/2" 32 3/8" 800mm 822mm KBU24 KBU25 32” x 20 5/8” x 9” 32 3/8” x 20 1/2” x 9” Min Cabinet Size: 36” Min Cabinet Size: 36” Matching Grid: KBG-24-1 Matching Grid: KBG-25-1 and KBG-24-2...
- Page 7 1. Determine Reveal Type Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive or Flushed Reveal). KRAUS Recommended Installation Type 3/8“ Positive Reveal Flushed/Zero Reveal 1/8“ Negative Reveal 3/8”POSITIVE 1/8”NEGATIVE FLUSHED/ZERO...
- Page 8 2. Position Template Check the cut-out template against the actual sink to ensure a proper sized cut-out. Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.
- Page 9 4. Cut Countertop Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material. CAUTION - To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when cutting.
- Page 10 5. Set up Mounting Brackets Turn countertop over and align sink with countertop. Decide location for mounting brackets. Mounting holes should be 1/2" from edge of sink. 1/2" (13mm) 6. Drill Hole in Countertop Drill 3/8" diameter x 1/2" deep hole in countertop. ! CAUTION - To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when drilling.
- Page 11 7. Install Anchors Insert anchors into drilled holes and lightly tap with a hammer until flush. 8. Secure Sink to Countertop Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.
-
Page 12: Attach Mounting Hardware
9. Attach Mounting Hardware Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. Allow sealant to set for 30 - 60 minutes. NOTE: Use acetone or rubbing alcohol to remove any excess sealant. - Page 13 10. Install Plumbing Fixtures Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. Run water into sink and check for leaks.
- Page 14 Kitchen Sink was first installed. Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus.
- Page 15 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
