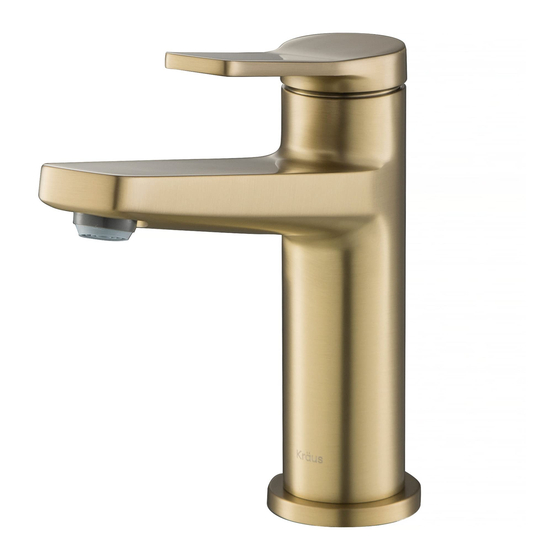

Kraus Indy KBF-1401 Installation Manual
Single lever basin faucet
Hide thumbs
Also See for Indy KBF-1401:
- Installation manual (13 pages) ,
- Quick start manual (11 pages)
Related Manuals for Kraus Indy KBF-1401
Summary of Contents for Kraus Indy KBF-1401
- Page 1 INSTALLATION MANUAL Indy Single Lever Basin Faucet KBF-1401 www.kraususa.com Toll Free: 1.800.775.0703 © 2021 Kraus USA Plumbing LLC REV. November 8, 2021...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
· Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all ·... -
Page 4: Tools Required
Tools Required Adjustable Wrench Phillips Screwdriver Silicone Sealant Safety Goggles Pipe Tape... - Page 5 Diagram and Parts List Faucet Body Wrench Metal Base Ring Hex Wrench Rubber Washer Metal Washer Lock Nut...
-
Page 6: Faucet Dimensions
Faucet Dimensions 3 3/8" (86mm) 5 1/8" (131mm) Ø 2" (50mm) 15° Ø 1 3/8" 5/16-18UNC (35mm) 9/16"-UNEF-24 Installer Tip: Shut off main water supply before installing new faucet. - Page 7 Step 1. Install faucet and mounting hardware Place the faucet (A) through the mounting holes in the sink until the faucet (A) sits on top of the sink. Secure the faucet (A) to the sink using the rubber (C) and metal washers (D) and lock nut (E) provided.
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Metal Handle SFS,MB,CH,BG* KP06177 2. Handle Button GR, BL, YL* KP06026 3. Set Screw M5x6RB KP06052 4. Cartridge Cover SFS,MB,CH,BG* KP06080 5. O-Ring KP06059 6. Locking Nut KP06176 KP06101 7. Cartridge KP06183 8. -
Page 9: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under the faucet Bonnet nut has come loose. Remove the index. Loosen set screw with hex wrench. - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
