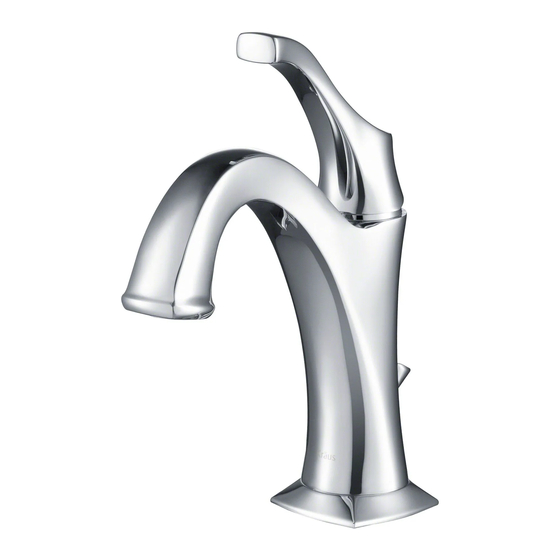

- Page 1 INSTALLATION GUIDE Arlo Single Lever Basin Faucet ™ KBF-1201 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. NOV 17, 2021...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Diagram and Parts List A. Faucet Body E. Aerator Key I. Deck plate & Base plate B. Waterlines F. Hex Wrench J. Drain C. Flange & Washer G. Metal Washer K. Spanner Key D. Aerator H. Nut...
- Page 5 Faucet Dimension 6 3/4" 6 5/8" [172mm] 6 1/4" [169mm] 5" 5" [159mm] [126mm] [126mm] 2 1/4" [56mm] 3/8" compression 3/8" compression Installer Tip:...
- Page 6 Step 1: Remove washer and lock nut old faucet. Clean the mounting surface. WITH FLANGE: Remove the metal washer (G) and lock nut (H) from the faucet (A) as WITH DECK PLATE: Remove the metal Step 2.1: Install faucet (with deck plate) Align the hole on the deck plate (I) with the mounting hole on the sink.
- Page 7 Step 2.2: I Before installation, ensure that the of the faucet (A). Place the faucet (A) through the mounting holes in the sink until the faucet (A) sets on top of the sink. Secure the faucet (A) to the sink using the washer (G) and lock nut (H) provided.
- Page 8 Step 4: Install drain Remove the waste stopper (1) and drain ange (2) from the drain body (5). Screw the nut (4) all the way down, and push the concave washer (3) down. Apply silicone sealant (not included) under the drain ange(1) and place the drain ange (1)into the drain hole of the sink.
- Page 9 Step 4: Install drain Insert the waste stopper (1) into the drain Insert 1 Insert 2 hole in the sink. Remove the strap (6) and clip (5) from the ball rod (3). Remove the ball nut (4). Insert the ball rod (3) into the drain body (2) and through the hole of the stopper (1).
- Page 10 Step 4: Install drain Attach the ball rod (1) to the strap (3) using the clip (2). Loosen the thumb screw (3) on the strap (2). Push down on the lift rod (1) until the stopper is in the open position.
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Cover Button GR, BL* KP27002 2. Set Screw KP27001 CH, SFS, ORB, MB, 3. Handle KP27046 BG, SFSB* CH, SFS, ORB, MB, 4. Cap KP27048 BG, SFSB* 5. Bonnet Nut KP27049 6. -
Page 12: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Remove the cover button (1). Leakage under the Bonnet nut (5) has Loosen set screw (2) with hex... - Page 13 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 14 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
