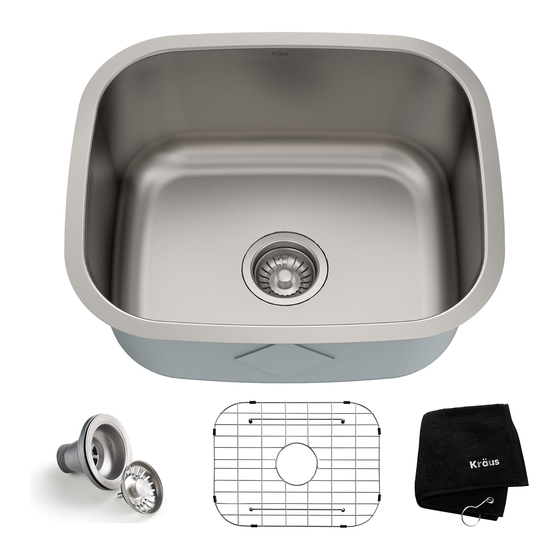

Kraus KBU11 Installation Manual
Undermount kitchen sink
Hide thumbs
Also See for KBU11:
- Installation manual (16 pages) ,
- Installation manual (16 pages) ,
- Installation manual (31 pages)
Advertisement
Quick Links
R
INSTALLATION MANUAL
Kraus Stainless Steel
Undermount Kitchen Sink
KBU10 / KBU11 / KBU12 / KBU14 / KBU15 / KBU16 /
KBU17 / KBU21 / KBU22 / KBU23 / KBU24 / KBU25 /
KBU26 / KBU27 / KBU28 / KBU29 / KBU32
www.kraususa.com
I
Toll Free: 1.800.775.0703
I
© 2018 Kraus USA Inc.
I
REV. October 26, 2020
Advertisement
Related Manuals for Kraus KBU11
Summary of Contents for Kraus KBU11
- Page 1 INSTALLATION MANUAL Kraus Stainless Steel Undermount Kitchen Sink KBU10 / KBU11 / KBU12 / KBU14 / KBU15 / KBU16 / KBU17 / KBU21 / KBU22 / KBU23 / KBU24 / KBU25 / KBU26 / KBU27 / KBU28 / KBU29 / KBU32 www.kraususa.com...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 3 Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
- Page 4 Jig Saw Scissors Tape Measure Phillips Screwdriver Pencil Screwdriver Putty Knife NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount sinks with countertop materials other than wood, marble or granite. Dimensions 21" 534mm 21 5/16" 18 3/4"...
- Page 5 Dimensions 29 1/2" 13" 750mm 17 3/4" 330mm 450mm 31 1/2" 15" 19 3/4" 800mm 381mm 500mm KBU14 KBU15 KBU16 31 1/2” x 18 3/8” x 10” 19 3/4” x 20 1/2” x 9” 15” x 18 1/2” x 7” Min Cabinet Size: 36”...
- Page 6 Dimensions 15 3/4" 13" 11 3/8" 17 3/4" 17 3/4" 10 1/2" 290mm 450mm 400mm 330mm 32" 450mm 266mm 31 1/2" 32 3/8" 813mm 800mm 822mm KBU23 KBU24 KBU25 31 1/2” x 20 1/2” x 9” 32” x 20 5/8” x 9” 32 3/8”...
- Page 7 1. Determine Reveal Type Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive or Flushed Reveal). KRAUS Recommended Installation Type 3/8“ Positive Reveal Flushed/Zero Reveal 1/8“ Negative Reveal 3/8”POSITIVE 1/8”NEGATIVE FLUSHED/ZERO...
- Page 8 2. Position Template Check the cut-out template against the actual sink to ensure a proper · sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. 3.
- Page 9 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 10 5. Set up Mounting Brackets · Turn countertop over and align sink with countertop. Decide location for mounting brackets. · Mounting holes should be 1/2" from edge of sink. 1/2" (13mm) 6. Drill Hole in Countertop · Drill 3/8" diameter x 1/2" deep hole in countertop.
- Page 11 7. Install Anchors · Insert anchors into drilled holes and lightly tap with a hammer until flush. 8. Secure Sink to Countertop Use a bead of silicone (or preferred adhesive) around the rim of the sink. · Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.
-
Page 12: Attach Mounting Hardware
9. Attach Mounting Hardware · Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. · Allow sealant to set for 30 - 60 minutes. NOTE: Use acetone or rubbing alcohol to remove any excess sealant. - Page 13 10. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. Run water into sink and check for leaks. · · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
- Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 15 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
- Page 17 INSTALLATION GUIDE Kitchen Strainer ST-1 / ST-2 / ST-3 / BST-1 / BST-2 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. November 5, 2020...
- Page 18 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 19 Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
- Page 20 Diagram and Parts List ST-1 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut ST-2 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E.
- Page 21 Diagram and Parts List BST-1 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E. Foam Gasket F. Rubber Gasket G. Main Body H. Drain Gasket I. Drain Nut BST-2 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E.
- Page 22 Diagram and Parts List ST-3 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut...
- Page 23 Dimensions Ø 4 1/2" Ø 4 1/2" Ø 4 1/2" (115mm) (115mm) (114mm) 3 3/4" 3 3/4" 4 1/2" (94mm) (94mm) (114mm) 1 1/2" - 1 1/2" - 1 1/2" - 11 1/2" Ø 4 3/4" 11 1/2" Ø 4 3/4" 4 5/8"...
- Page 24 Step 1. Disassemble strainer...
- Page 25 Step 2. Insert metal strainer into drain hole with foam gasket attached. Install rubber gasket and main body underneath the sink Strainer Cover Screw Metal Strainer Foam Gasket Rubber Gasket Main Body Drain Gasket Drain Nut...
- Page 26 Step 3. Using the screw, tighten the metal strainer and main body into place Screw Step 4. Insert strainer cover to seal water Strainer Cover...
-
Page 27: Replacement Parts
Replacement Parts ST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 A. Strainer Cover PGM* KPU00010-PGM B. Screw 1 1/4" KPU00003 B. Screw 1 1/4" PGM* KPU00003-PGM C. Metal Strainer KPU00011 C. Metal Strainer PGM* KPU00011-PGM D. Foam Gasket KPU00005 E. - Page 28 Replacement Parts ST-2 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 B. Screw 1 5/8" KPU00013 C. Metal Strainer KPU00011 KPU00005 D. Foam Gasket KPU00006 E. Rubber Gasket KPU00012 F. Main Body KPU00008 G. Drain Gasket KPU00009 H. Drain Nut...
- Page 29 Replacement Parts BST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00001 B. Basket KPU00002 C. Screw 1 1/4" KPU00003 KPU00004 D. Metal Strainer KPU00005 E. Foam Gasket KPU00006 F. Rubber Gasket KPU00007 G. Main Body KPU00008 H. Drain Gasket KPU00009 Drain Nut BST-2...
- Page 30 Replacement Parts ST-3 Replacement Parts List Finish Part # A. Strainer Cover KP22191 B. Screw KP22198 C. Metal Strainer KP22192 KP22193 D. Foam Gasket KP22194 E. Rubber Gasket KP22195 F. Main Body KP22196 G. Drain Gasket KP22197 H. Drain Nut...
- Page 31 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 32 12 Harbor Park Drive Port Washington, NY 11050 Toll-Free : 800-775-0703 Customerservice@kraususa.com If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL , please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 33 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
