T A P W A R E M A D E F O R N E W Z E A L A N D s i n c e 1 9 6 9
BLACK EDITION

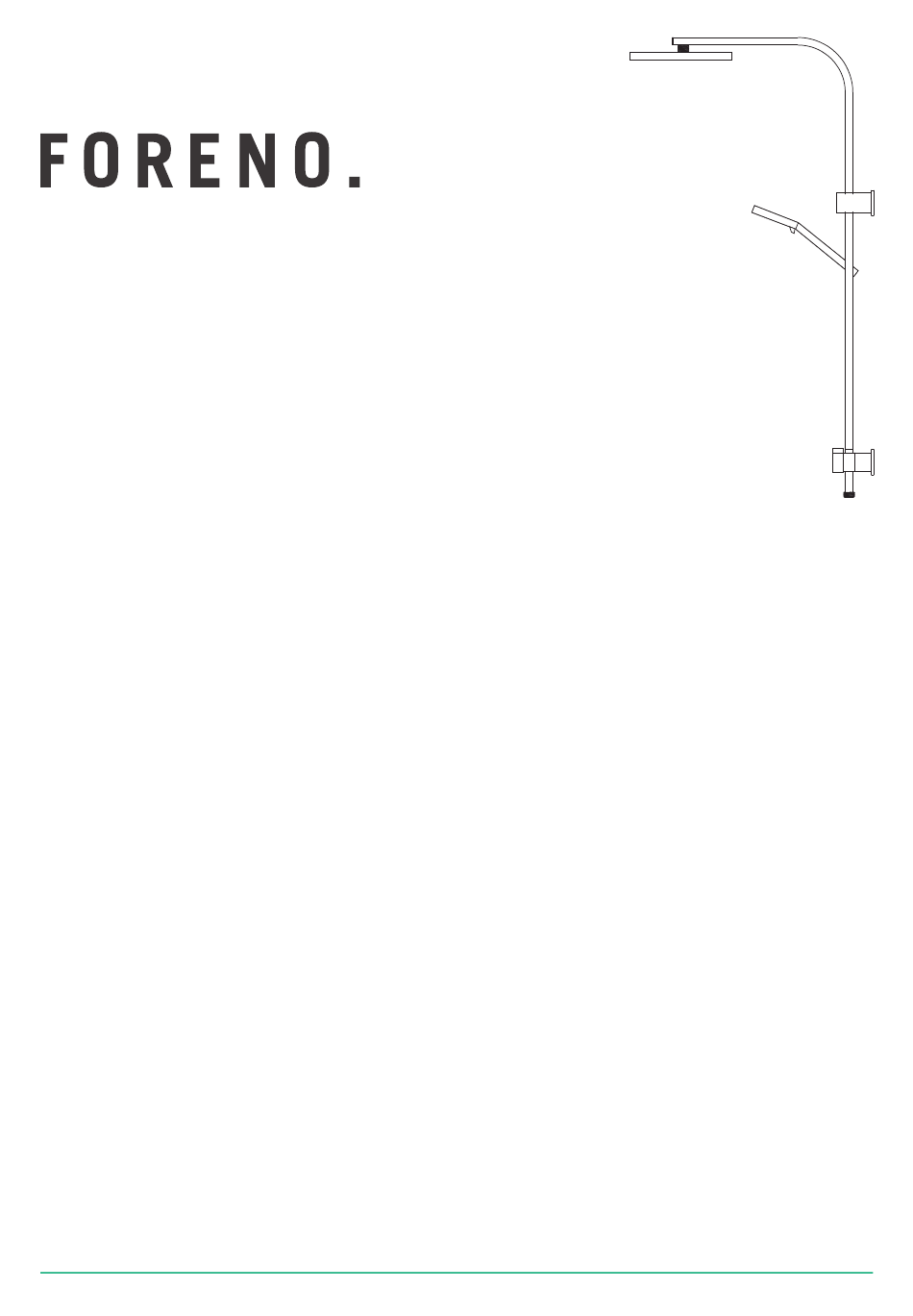

Double Head Slide Shower (Square)
Matte Black SBK041
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for Mains Pressure only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa* (As per NZ Building Code AS/NZ 3500.1)
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Install as supplied.
Unequal Low Systems Not suitable.
Equal Low systems

INSTALLATION

*FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
CAUTION: IF USING YOUR OWN SCREWS TO INSTALL THE WALL BRACKETS, DO NOT USE COUNTER SUNK TYPE
SCREWS, AS THIS WILL VOID THE WARRANTY.
Refer installation diagram, overleaf. This shower has a WELs certified flow regulator fitted between the shower
hose and the rail connection (see diagram 5). If you want a greater flow, remove this disc but note that this will
not give a WELS 3-star water rating.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Not suitable.
