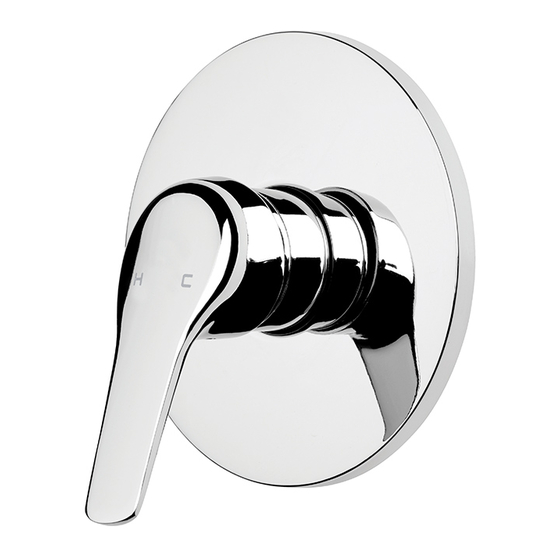

Shower Mixer
FSM4
9
421009
511310
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only. Only slide showers that are equipped with a large internal bore hose and open flow one
function handset will work effectively with this shower mixer. We recommend the FSL8 MonoJet slide shower for
optimum performance.
CONFIGURATION
Mains Pressure systems Remove the insert from the cold side marked with a 'C' .
Unequal Low Systems Install as supplied.
Equal Low systems
INSTALLATION
For pressures exceeding 500kPa install a pressure reducing valve. Failure to do so may void the warranty.
•
See diagram, overleaf.
•
Where back flow prevention is required, install our Back Flow Prevention Valve (part FORPT79) at the supply
elbow hose connection of the handpiece.
•
Screw the shower arm to the wall connection and tighten.
•
Shower mixers must be water tested with the outlet open, to prevent damage to cartridge seals due to back
pressure.
•
Turn on water supply. Check for leaks.
•
Any water seepage ex- the cartridge cavity opening can be stopped by retightening the large brass retaining nut.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Remove the valve inserts from both inlets, prior to installation.
