FORENO LE TAP LT300 Installation

T A P W A R E M A D E F O R N E W Z E A L A N D s i n c e 1 9 6 9

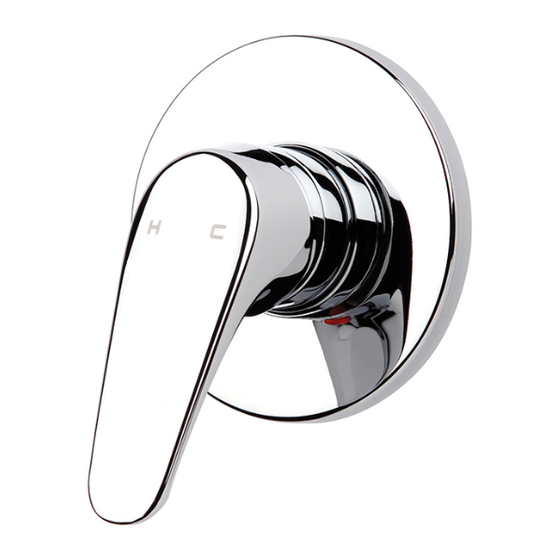

LE TAP Shower Mixer
LT300
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa*
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Prior to installation, remove the valve inserts from both inlets.
Unequal Low systems
Equal Low systems

INSTALLATION

*FOR PRESSURES EXCEEDING 500KPA INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
Installation must comply with Section 5.4 of AS/NZS 3500 Standard with regard to Isolating stop-cock use. Shower
mixers must be water tested with the outlet open, to prevent damage to cartridge seals; due to back pressure.
All pipe work must be flushed prior to the installation of this mixer, accessible inline filters must be installed in the
pipework for both the hot and cold inlet supply to prevent particles from damaging the ceramic cartridge.
Back Flow Prevention: Where back flow prevention is required, install our Back Flow Prevention Valve at the supply
elbow hose connection of the handpiece.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Install as supplied.
Important note: Only slide showers that are equipped with a large internal bore hose and open flow single
function handset will work effectively with this shower mixer. We recommend this mixer be used with a
Le Tap Slide Shower (LTSV) for optimum performance. If the cold pressure difference is greater than 10/1 ratio
(i.e. 400kPa cold and 35kPa hot), we recommend installing a needle valve (not supplied) preferably directly to
the cold water feed port on the shower mixer or alternatively anywhere on the cold feedline pipe.
Prior to installation, remove the valve inserts from both inlets.
