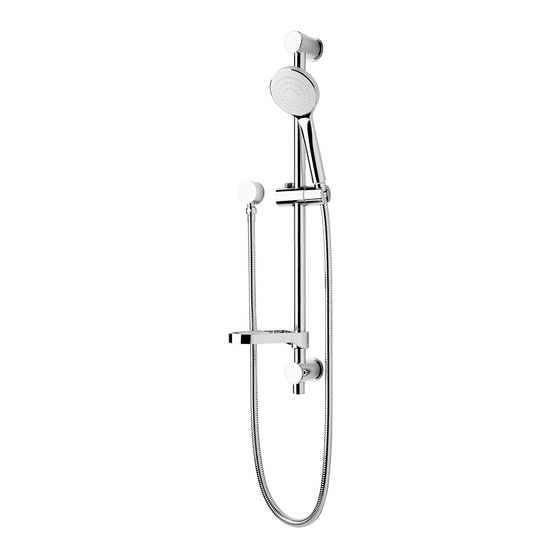

ESPREE Tigerjet Slide Shower
Chrome FSL5
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa*
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.
CONFIGURATION
Mains Pressure systems Install the flow regulator as shown in the diagram below.
Unequal Low Systems Install as supplied.
Equal Low systems
Install as supplied.
CONTENTS
Wall brackets and covers
Fixing kit (wall anchors & screws)
Glide bar with adjuster/holder
1.5m supply hose
Supply elbow
Shower handpiece
Soap dish
Flow regulator for Mains Pressure installation
INSTALLATION
*FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
CAUTION: If using your own screws to install the wall brackets, DO NOT use counter sunk type screws as
this will void the warranty.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Mains Pressure installation:
Insert the flow regulator with the O ring
facing away from the hose (as shown).
This will comply with the WELS rating.
Water Flow
Black O-ring
7.5L/min Flow Regulator
Shower Elbow
(O-ring side)
Flow Regulator
Washer
Flexi Hose
