FORENO TRIJET FSL3 Quick Start Manual

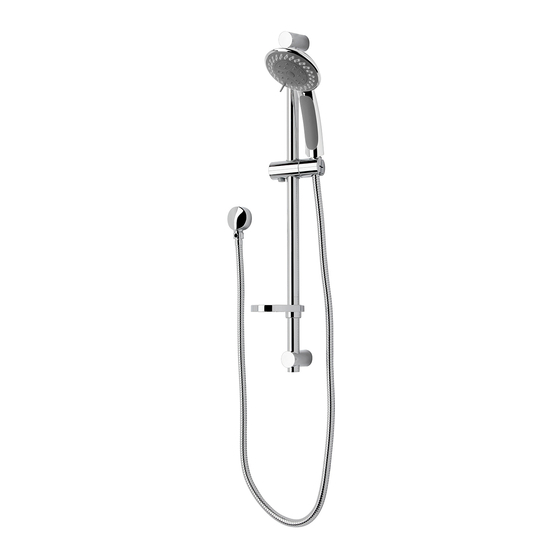

TRIJET 3 Function Slide Shower
Chrome FSL3
9 421027 590960
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for Mains Pressure Only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa*
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure Systems Install as supplied.
Unequal Low Systems Not Suitable.
Equal Low systems

CONTENTS

• Wall brackets and covers
• Fixing kit (wall anchors & screws)
• Glide bar with adjuster/holder
• 1.5m supply hose
• Supply elbow
• Shower handpiece
• Soap dish
• Flow regulator

INSTALLATION

*FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
CAUTION: If using your own screws to install the wall brackets, DO NOT use counter sunk type screws as
this will void the warranty.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Not Suitable.
Black O-ring
7.5L/min Flow Regulator
Mains Pressure installation:
Insert the flow regulator with the O ring
facing away from the hose (as shown).
This will comply with the WELS rating.
Water Flow
Shower Elbow
(O-ring side)
Flow Regulator
Washer
Flexi Hose
