FORENO Espree ET220 Installation

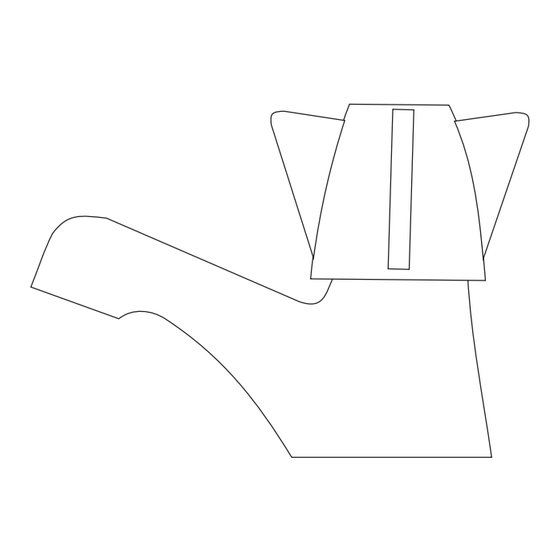

Espree Basin Tap Set
ET220
9 421009 511099
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for All Pressures
Minimum Pressure = 17kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.
CONFIGURATION
Mains Pressure systems Insert the valve from the mains pressure pack.
Unequal Low Systems Install as supplied.
Equal Low systems
INSTALLATION
For pressures exceeding 500kPa install a pressure reducing valve.
Failure to do so may void the warranty.
• Drill a minimum 25mm hole within the vanity top.
• Remove back-nut and basin spacer.
• Mount tap with O-ring in base groove.
• Fit basin spacer underneath and tighten on back-nut.
• Connect to plumbing.
• Turn on water supply. Check for leaks
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Install as supplied.
Handle
(different for
each range)
O Ring
Bench/Vanity Top
(not supplied)
Basin Spacer
Back-nut
Tail-Pipe
*Mains Pressure
Valve (1 per tap)
Supply Hose
(not supplied)
Lip
