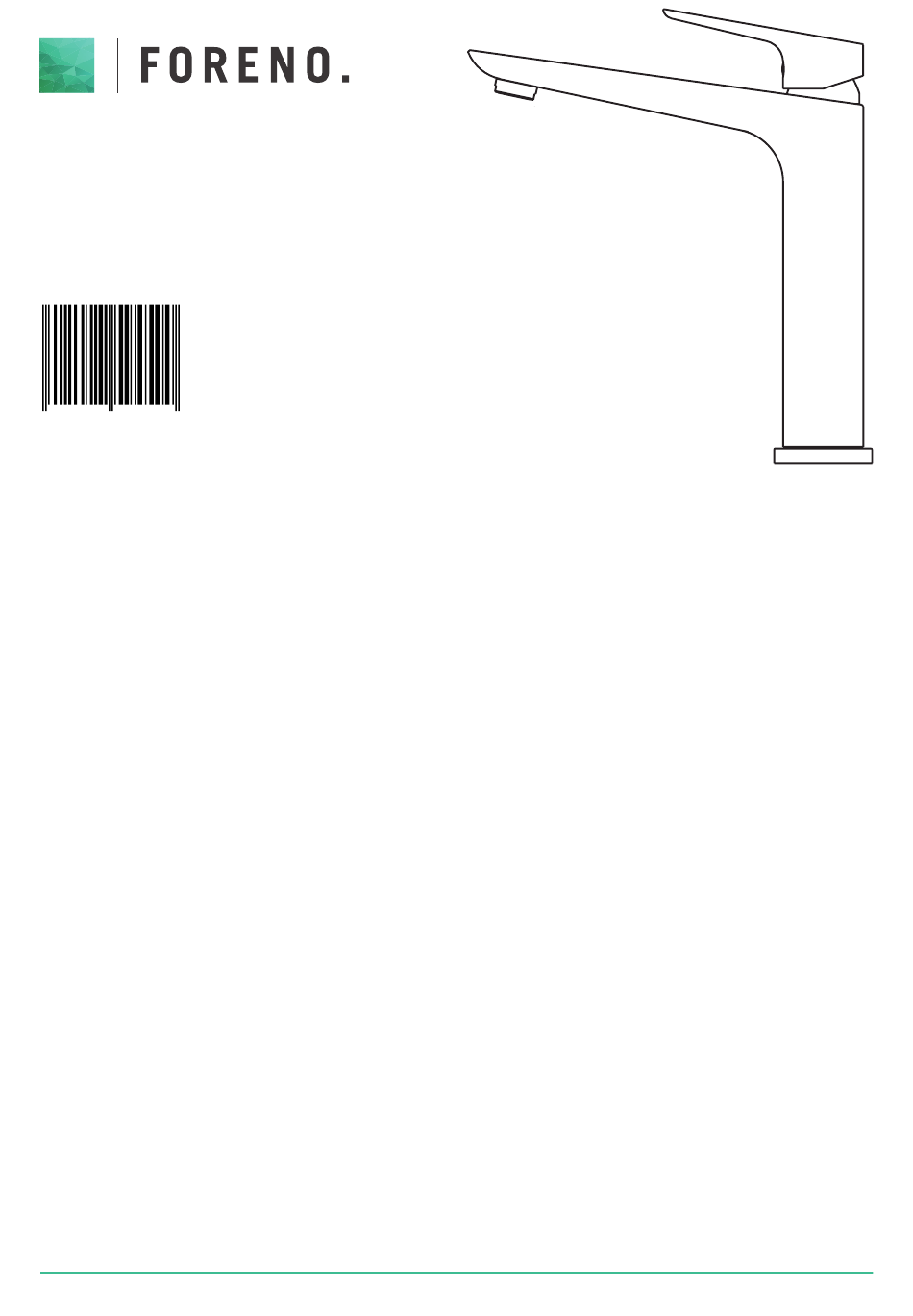

FORENO Solitaire SLT012 Quick Installation Manual

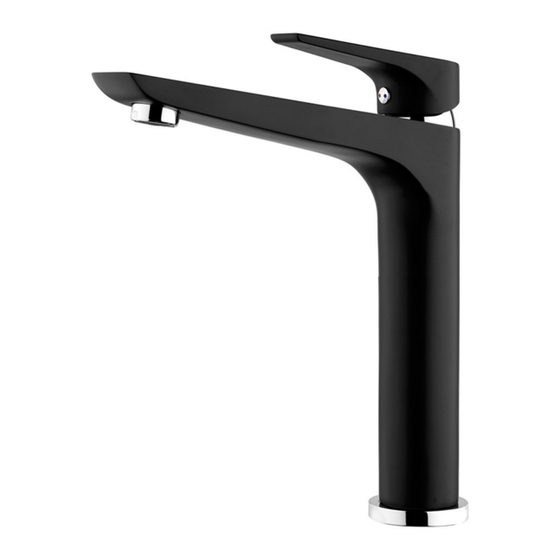

Solitaire Sink Mixer
Black/Chrome
SLT012
9 421027 594500
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Remove the flow restrictor from the nut of the cold hose and change aerator to the Mains
Unequal Low systems
Equal Low systems

INSTALLATION

For pressures exceeding 500kPa, install a pressure limiting valve. Failure to do so may void the warranty.
• Position tap in 35mm hole, making sure the seal between tap and supporting surface is in place.
• Anchor to bench with fittings pack.
• Thoroughly flush all pipes to eliminate any remaining dirt and residue and install inline filters.
• Connect supply hoses to plumbing connections.
Maximum bend for flexible hose is 35mm radius.
Do not stretch, crush or twist hoses. Do not swage hose ends.
• Turn on mains supply.
• Check for leaks.
Plumbers Note: Do not pressure test this mixer under static pressure.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Pressure one (supplied).
Install as supplied.
Prior to installation, remove the flow restrictor from the nut of the cold hose.
