FORENO C2-2 Quick Start Manual

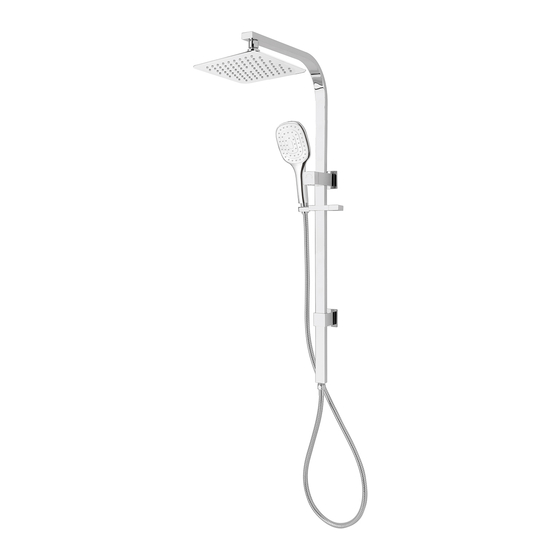

FORENO Double Head Shower (Square)
Chrome C2-2
9 421027 592964
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for Mains Pressure only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.
CONFIGURATION
Mains Pressure systems Install as supplied.
Unequal Low Systems Not suitable.
Equal Low systems Not suitable.
INSTALLATION
For pressures exceeding 500kPa install a pressure reducing valve. Failure to do so may void the warranty.
CAUTION: IF USING YOUR OWN SCREWS TO INSTALL THE WALL BRACKETS, DO NOT USE COUNTER SUNK TYPE
SCREWS, AS THIS WILL VOID THE WARRANTY.
• WELS 3 Star Restrictor - Note that the FORENO C2-2 has a WELS certified disc fitted (see diagram 5 & 6 below).
If you want greater water flow remove these discs, but note that this will not give a WELS 3 Star water rating
anymore.
• Refer diagram, overleaf.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
