FORENO Primus PSM5 Installation

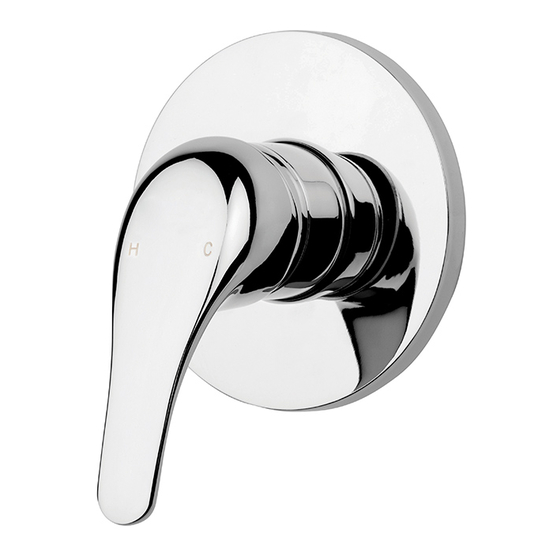

Primus Shower Mixer
PSM5
9 421009 514106
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Remove the insert from the
Unequal Low Systems Install as supplied.
Equal Low systems
NB: Only slide showers that are equipped with a large internal bore hose and open flow one function handset will
work effectively with this shower mixer at low water pressures. We recommend the FSL8 MonoJet slide shower for
optimum performance.

INSTALLATION

For pressures exceeding 500kPa install a pressure reducing valve. Failure to do so may void the warranty.
• Where back flow prevention is required, install our back flow prevention valve (part FORPT79) at the supply
elbow hose connection of the handpiece.
• Shower mixers must be water tested with the outlet open to prevent damage to cartridge seals, due to back
pressure.
• Any water seepage from the cartridge cavity opening can be stopped by retightening the large brass retaining
nut.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
cold side marked with a 'C' .
Remove the valve inserts from
both inlets, prior to installation.
450mm minimum
straight distance
115mm Faceplate
150mm Faceplate
**Min = Ø80mm
**Max = Ø100mm
Seal with silicon
if necessary
