Thank you for purchasing this Bellingdon Extending DIning Table. Please ensure instructions are read in full
before attempting to assemble this product.

PREPARATION

This is a two person operation
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use.
TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.

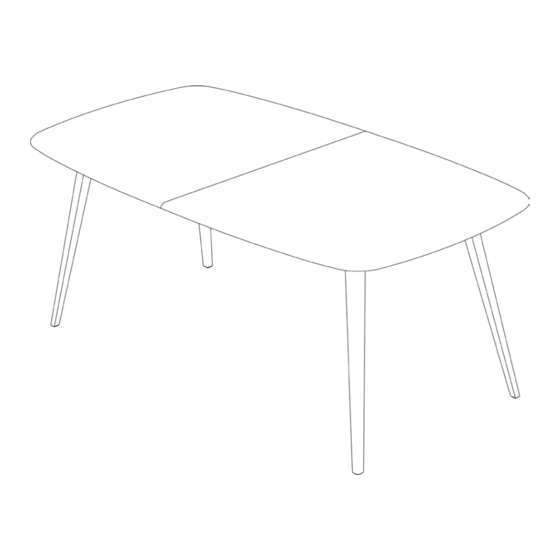

3062 Bellingdon Extending Dining Table
3062 BELLINGDON
EXTENDING DINING TABLE
Tools you will need
1
May 2023
