ercol

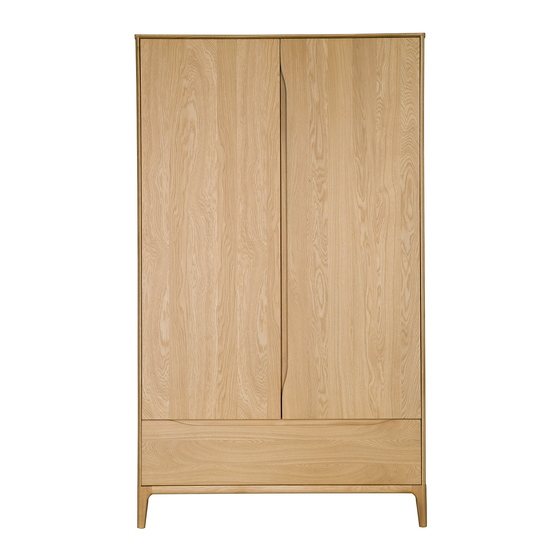

Rimini 3286 2 door wardrobe
Thank you for purchasing this Rimini wardrobe. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Installation shall be carried out exactly according to the manufacturers
instructions, otherwise a safety risk can occur if incorrectly installed.
WARNING: In order to prevent overturning this product must be used with the wall attachment device provided.
This item is HEAVY

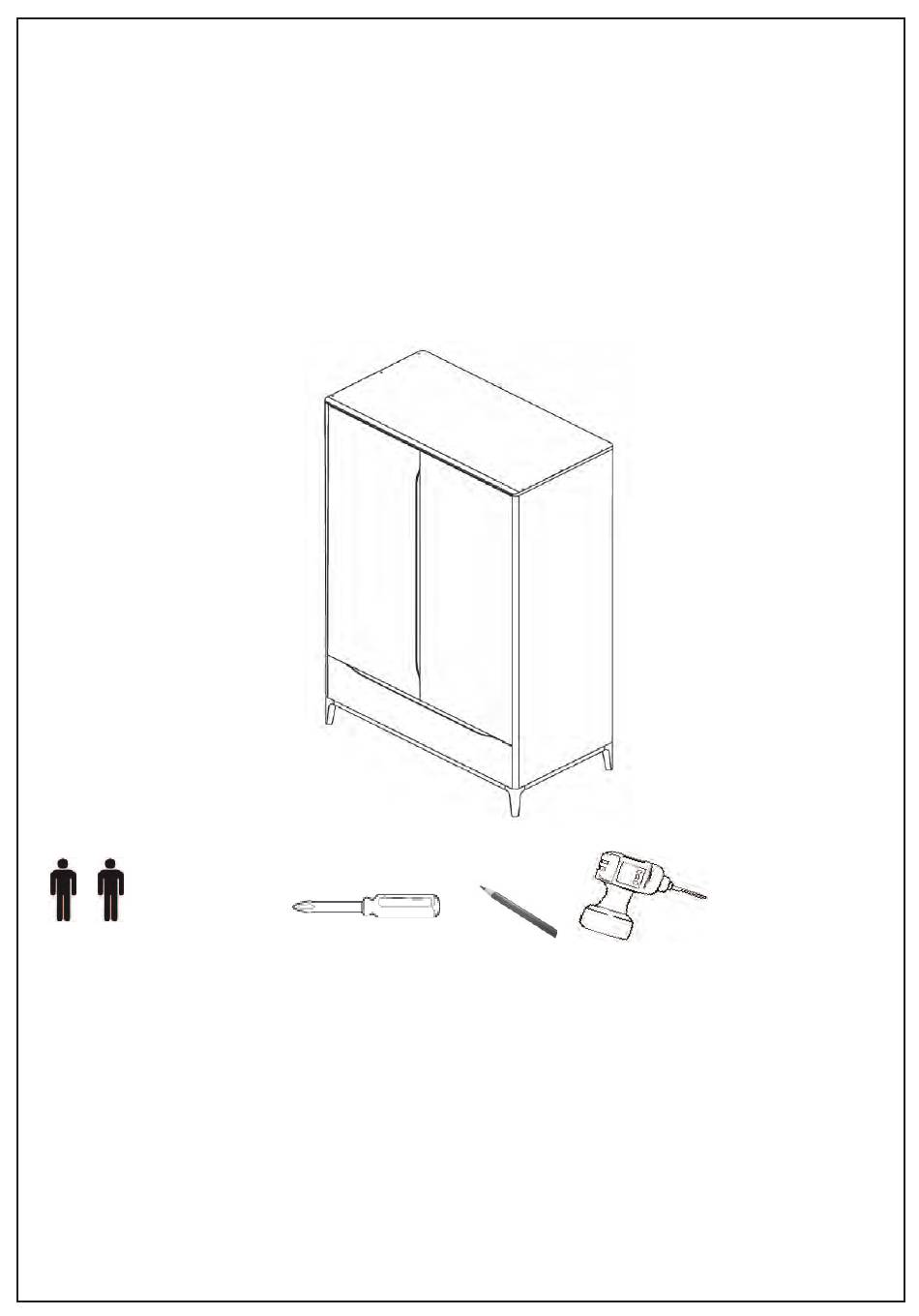

Necessary Tools
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought
this product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 30 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Advertisement
Table of Contents
Related Manuals for Ercol Rimini 3286
Summary of Contents for Ercol Rimini 3286
- Page 1 Rimini 3286 2 door wardrobe Thank you for purchasing this Rimini wardrobe. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Installation shall be carried out exactly according to the manufacturers instructions, otherwise a safety risk can occur if incorrectly installed.
- Page 2 Fittings and parts checklist Top panel x 1 Hanging rail LH side panel x 1 16mm Screws x 18 RH side panel x 1 Brackets x 2 Left door x 1 Strap x 1 Screws x 1 Right door x 1 Wedge x 2 Back panels x 2 Jointer back panel...
- Page 3 Step by step assembly instructions 1. Take the drawer out of the drawer box unit as shown below. 2. Attach the side panels B & C to the drawer box unit H, making sure the 4 dowels locate squarely into the side panels.
- Page 4 3. Locate the top panel A into the dowels on the tops of the side panels B & C and secure using the 6pcs M6*30 bolt. 4. Using 16mm screws J (18), fix the back panels and jointer back panel to the rear of the wardrobe as shown.
- Page 5 5. Attach the door panels(D&E) onto the side panels(B&C). Insert the door hinges into the hinge base on the side panels then tigthen the screws on the base with screwdriver. See as below. 6. Put the hanging rail (I) into the hanging rail supports inside the wardrobe, and put the drawer into the drawer box.
- Page 6 Wall fixing - if in doubt seek professional advice Wood Cavity wall Brick or Masonry If fixing to wood Special toggle Use an appropriate make sure that it wall plugs are wall plug provided you isn’t chipboard as needed. Seek are sure your wall is screws can easily pull expert advice...
- Page 7 You can also snap them lengthways. 11. Check that the doors are aligned correctly. If necessary adjust the door hinges as shown below. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...
