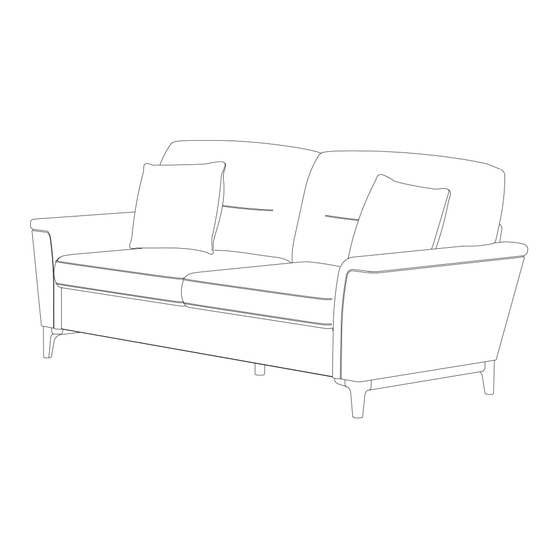

Thank you for purchasing this Sandford Upholstery. Please ensure instructions are read in full before
attempting to assemble this product.
PREPARATION
This is a two person operation
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use.
TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
3444 Sandford Upholstery
Tools you will need
3444 SANDFORD
UPHOLSTERY
Included
July 2024
1
Advertisement
Related Manuals for Ercol SANDFORD UPHOLSTERY 3444
Summary of Contents for Ercol SANDFORD UPHOLSTERY 3444
- Page 1 3444 SANDFORD UPHOLSTERY Thank you for purchasing this Sandford Upholstery. Please ensure instructions are read in full before attempting to assemble this product. PREPARATION This is a two person operation Tools you will need Included Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet.
- Page 2 Fittings and parts checklist Leg Assembly x 2 Centre Leg x 1 - Medium and Large Motion Loungers and Large Sofas only Allen Key x 1 Power Cable - Motion Loungers Only Power Adaptor - Motion Loungers Only Splitter Cable - Motion Loungers Only 3444 Sandford Upholstery...
- Page 3 Sandford assembly instructions 1. Remove all cushions and carefully turn over the upholstery. Unpack the leg assemblies (A) and place on a blanket or carpeted floor to prevent scratching. If assembling a medium or large motion lounger or large sofa unpack the centre leg (B) as well.
- Page 4 3. Using the allen key (C) undo and keep the 10 bolts (a) on the underside of the upholstery. 4. Take one leg assembly (A) and line up the bolts holes on the upholstery. Take 5 of the bolts (a) previously removed and and insert into each hole.
- Page 5 6. Repeat steps 4 and 5 for the remaining leg assembly (A). 7. Medium and Large Motion Lounger and Large Sofas only: Take the centre leg (B) and line up with the bolt hole in the centre of the sofa. Hand tighten the centre leg by turning in a clockwise direction. 8.
- Page 6 Connecting the power - Motion Loungers Only 1. All Sofa Sizes: It is best to position the sofa near the power source. Facing the back of the sofa find the 2 two pin connectors towards the outer edges, 1 on each side. Push the 2 pin connectors into each side of the splitter cable (G).
-
Page 7: How To Operate
Positions your Sandford Motion Lounger can be used in Position A - Closed Position B - Partially Extended Position C - Fully Extended How to operate 1. Starting in a closed position, sit comfortably in 2. Press the front button to lift the footrest. the recliner, ensuring you are sitting as far back as possible. -
Page 8: Customer Care
Read carefully and retain for future reference: a) Test to BS 8474 2013; b) Ercol Furniture Ltd, Summerleys Rd, | Princes Risborough, Buckinghamshire, | HP27 9PX | UK c) Warnings: 1) WARNING. This is an electrical item and should be treated with caution.
