ercol

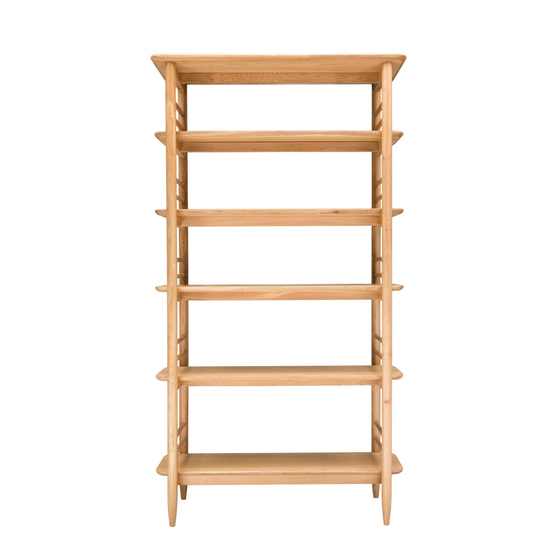

Teramo 3671 Shelving Unit
Thank you for buying this teramo shelving unit
and satisfactory operation of this product.
We strongly recommend that you fix your teramo shelving unit to the
wall for your own safety.
This item is HEAVY
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE WHEN
LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 30-45 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
.
. Please read the instructions carefully before use to ensure safe

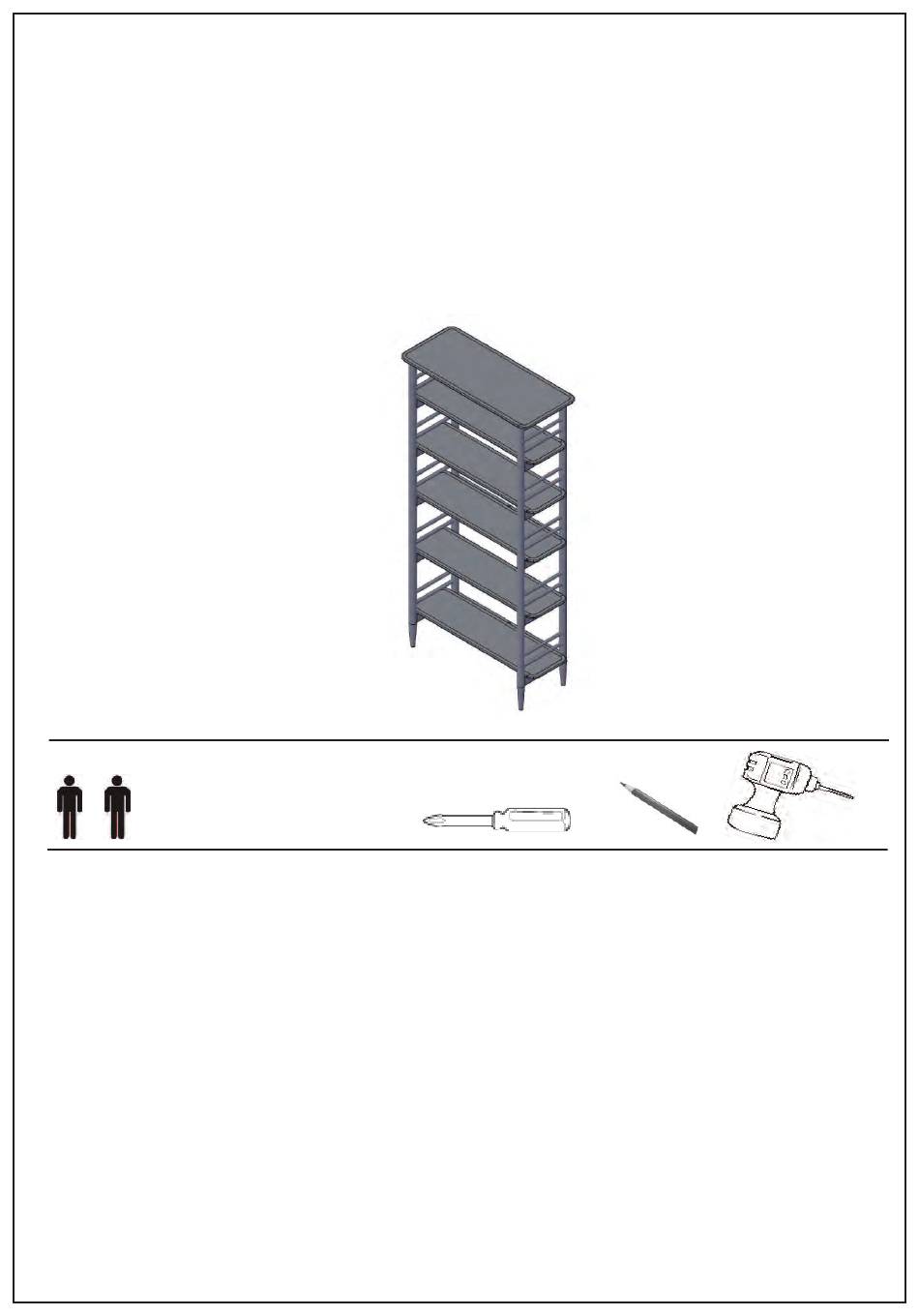

Necessary Tools
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ercol Teramo 3671
Summary of Contents for Ercol Teramo 3671
- Page 1 Teramo 3671 Shelving Unit Thank you for buying this teramo shelving unit . Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. We strongly recommend that you fix your teramo shelving unit to the wall for your own safety.
- Page 2 Fittings and parts checklist Top panel x 1 Left side frame x 1 Allen Key x 1 Right side frame x 1 20mm Screws x 2 Top back cross rail x 1(Width 40mm) Wedges x 2 Middle&Bottom back cross rail Bracket (Width 50mm) Shelf support rails x 6...
- Page 3 Step by step assembly instructions Using 18pcs bolt and half moon washer to fix the top, middle and bottom cross rails and the shelf support rails onto the side frames. Tighten with allen key as shown below. I x 18 H x 18 J x 1 Using 21pcs bolt to fix the 5pcs shelf panles onto the shelf support rails and top panel onto the side...
- Page 4 3. Assembly complete. Wall fixing - if in doubt seek professional advice Wood Cavity wall Brick or Masonry If fixing to wood Special toggle Use an appropriate make sure that it wall plugs are wall plug provided you isn’t chipboard as needed.
- Page 5 4. If the unit is not level on your floor use the wedges provided, and snap them off so that they do no protrude out from the cabinet’s legs , you can also snap them lengthways if desired.
-
Page 6: Safety Instructions
Never drag furniture when moving it, always lift it. Please take care when handling or moving the furniture as careless handling may cause damage or injury. No liability will be accepted for damage or injury caused by incorrectly installed furniture. Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE...
