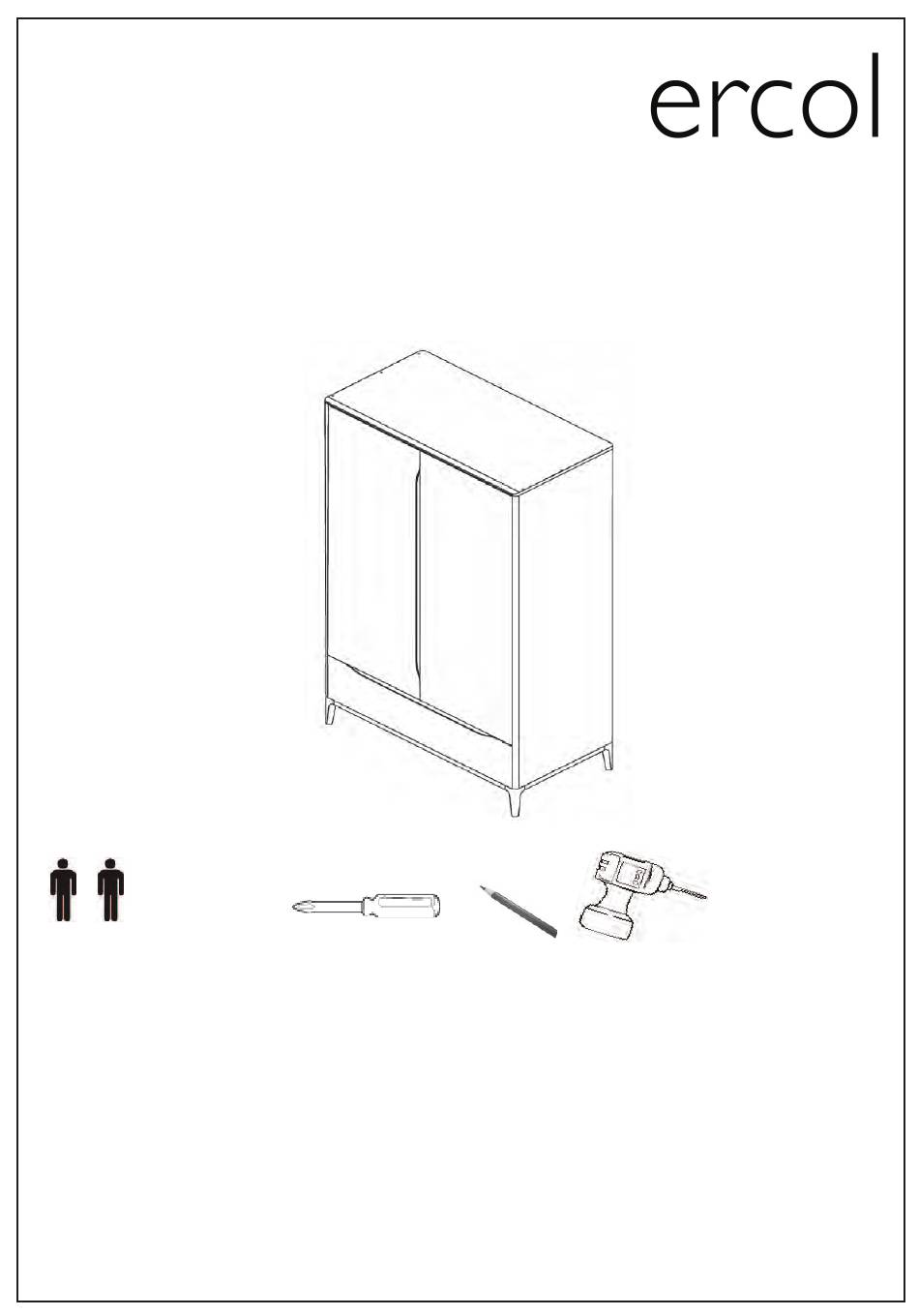

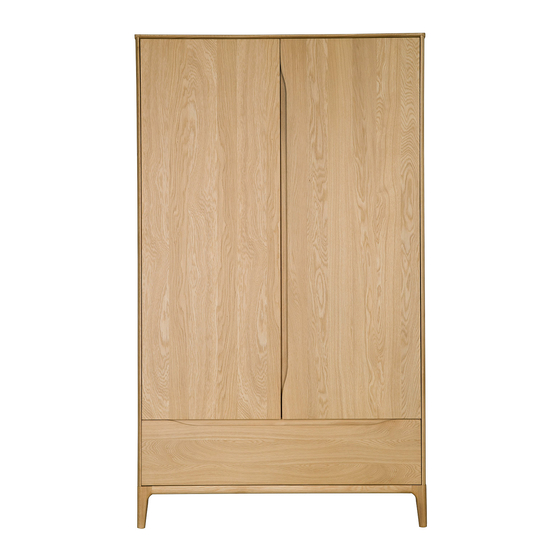

Rimini 3286 2 door wardrobe
Thank you for purchasing this Rimini wardrobe. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Installation shall be carried out exactly according to the manufacturers
instructions, otherwise a safety risk can occur if incorrectly installed.
This item is HEAVY
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought
this product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 45 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Necessary Tools
Ref: 00329/3286
Advertisement
Related Manuals for Ercol Rimini 3286
Summary of Contents for Ercol Rimini 3286
- Page 1 Rimini 3286 2 door wardrobe Thank you for purchasing this Rimini wardrobe. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Installation shall be carried out exactly according to the manufacturers instructions, otherwise a safety risk can occur if incorrectly installed.
- Page 2 Fittings and parts checklist Top panel x 1 Jointer back panel LH side panel x 1 Drawer box unit x 1 Hanging rail RH side panel x 1 Left door x 1 16mm Screws x 18 Wedge x 2 Back panels x 2 M6*30 Bolt x 14 16mm Screws x 2 Allen key x 1...
- Page 3 Step by step assembly instructions 1. Take the drawer out of the drawer box unit as shown below. & the side panels. Using M6*30 bolt 8pc s , attach the side panels B & C through the inside holes of the drawer box unit, as shown below.
- Page 4 3. Locate the top panel A into the dowels on the tops of the side panels B & C and secure using the 6pcs M6*30 bolt. , ) 8 x i f i o j...
- Page 5 5. Attach the door panels(D&E) onto the side panels(B&C). Insert the door hinges into the hinge base on the side panels then tigthen the screws on the base with screwdriver. See as below. 6. Put the hanging rail (I) into the hanging rail supports inside the wardrobe, and put the drawer into the drawer box.
- Page 6 Wall fixing instructions Thank you for purchasing this ercol product. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Installation shall be carried out exactly according to the manufacturer’s instructions, otherwise a safety risk can occur if incorrectly installed.
- Page 7 7. Check that the doors are aligned correctly. If necessary adjust the door hinges as shown below . PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...
