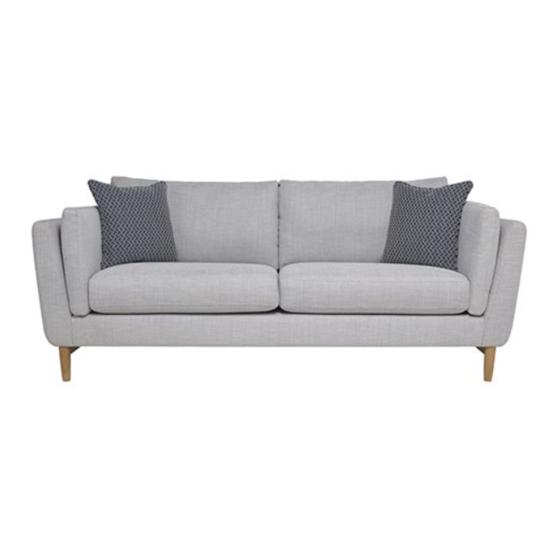

Ercol 3118 FAVARA Instruction Manual

Thank you for purchasing this Favara sofa. Please read these instructions carefully before fitting the wooden

legs to your new furniture. It is essential that the legs are correctly fitted otherwise damage could occur.

PREPARATION

This is a two person operation

This item is heavy, take care to avoid personal injury and (or) damage to the product.

Assembly should be carried out exactly according to the instructions, otherwise a safety risk can occur if

incorrectly assembled.

The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN. A full

checklist of components is given in this leaflet. If any components are missing, please contact the retailer from

whom you bought this product.

Read this leaflet in full before use.

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX ercol.com

0123 / 3118 Favara

Tools you will need

3118 FAVARA

Table of Contents

Do you have a question about the 3118 FAVARA and is the answer not in the manual?

Page 1 If any components are missing, please contact the retailer from whom you bought this product. Read this leaflet in full before use. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX ercol.com 0123 / 3118 Favara...
Page 2 1 x Centre foot (for large & grand sofas only) 4 x Footstool legs Step by step assembly instructions 1. Carefully place the sofa or chair on its back onto a clean soft surface. 2. Unscrew the transport legs (by hand) and discard. 0123 / 3118 Favara...
Page 3 (C). Repeat on both sides. We recommend that all four connector bolts are located and partially tightened together to ensure their alignment is accurate, then fully tighten. 0123 / 3118 Favara...
Page 4 For large and grand sofas only: Hand screw the centre foot (F) into position. Footstool Assembly 1. Carefully place the footstool on its back onto a clean soft surface. 2. Hand screw the footstool legs in by hand (G) 0123 / 3118 Favara August 2018...
