StarTech.com 8STST7300USBME Instruction Manual

Instruction Manual

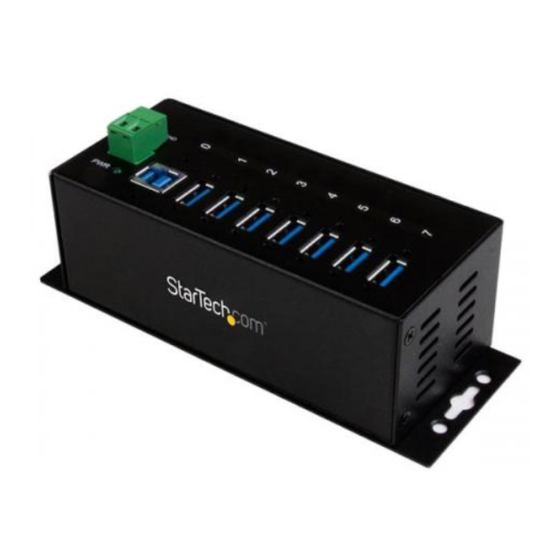

7-Port Industrial USB 3.0 Hub with ESD Protection
ST7300USBME
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x 7-Port Industrial USB 3.0 Hub
• 1x USB 3.0 A - B Cable
• 1x DIN Rail Mounting Kit
• 1x Terminal Block (2 Wire)
• 1x Instruction Manual
System Requirements
• USB-enabled computer system with an available USB port
• 2-wire 7~48V DC power source
• OS Independent

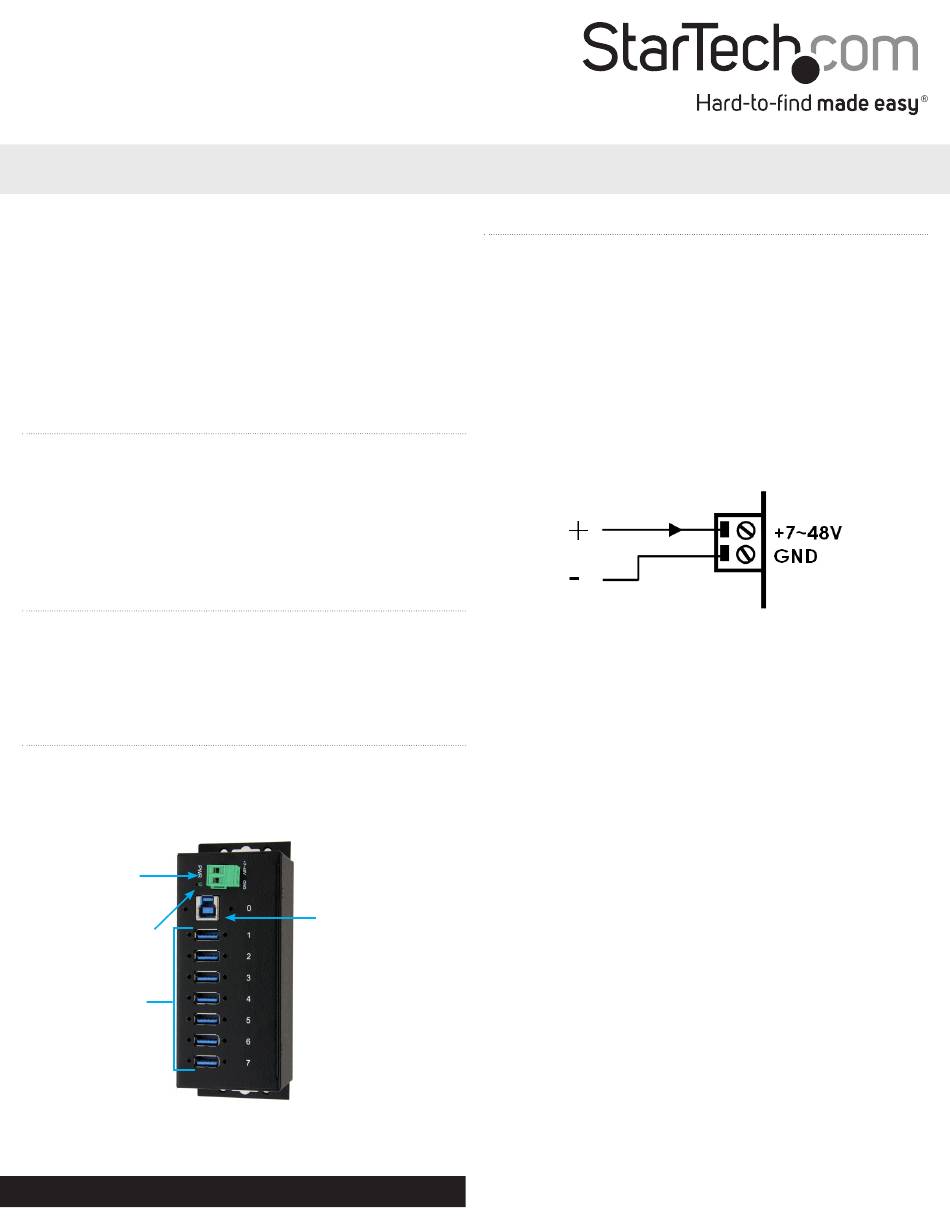

Product Overview
Front View
2-Wire Terminal
Block-included
(7~48V DC Input)
Power LED
USB 3.0 Hub Ports
For the most up-to-date information, please visit: www.startech.com
Installation and Operation
Supplying external power is highly recommended to ensure
sufficient power/current is delivered to each USB 3.0 port; however,
the hub can be powered by the connected host computer for low
power consuming USB devices.
1. If already inserted into the hub, gently yet firmly pull the terminal
block connector housing from the hubs casing.
2. Using a small screwdriver (Phillips or Flat Head), loosen the screws
for the terminal block connectors.
3. Connect the power and ground wires from your DC power source
to the proper terminal block connectors and fasten the screws.
The terminals are marked on the hubs casing.
Note: Ensure the polarity of the input power is correctly matched
with the terminal block pins to ensure proper function.
4. Reinsert the terminal block housing into the hubs casing. The
"Power" LED on the hub should then light up green.
5. Using the provided USB 3.0 A - B cable, connect the hubs USB 3.0
host port to an available USB port on your host computer system.
Note: If connected to a USB 2.0 host port, the hub will only operate
at USB 2.0 speeds.
6. Your computers operating system should detect the USB hub and
automatically install it.
7. Connect your USB peripherals to the USB 3.0 hub ports.
8. If desired, mount the hub on your DIN rail, or your wall.
USB 3.0 Host Port
Manual Revision: 05/18/2016
