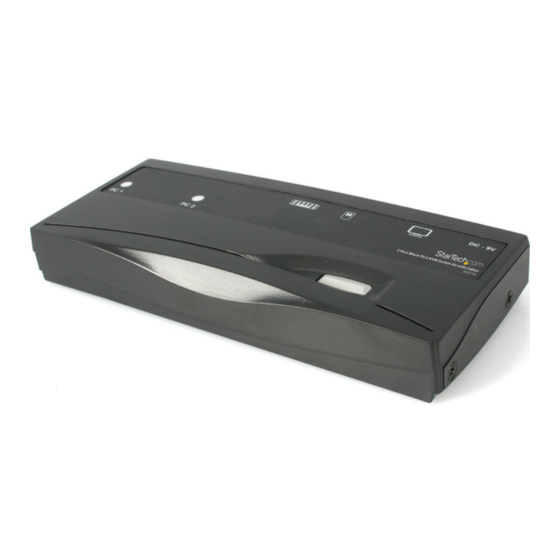

2 or 4 Port Black PS/2 KVM Switch Kit with Cables
SV211
SV211K
SV411
SV411K
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/06/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV211
Summary of Contents for StarTech.com SV211
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/06/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Features ................................ 1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Connecting Your Computers......................... 2 Using Your KVM Switch ........................... 3 Troubleshooting ............................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
KVM switch is backed by StarTech.com’s 2-year warranty and free lifetime technical support. Features • Allows you to control two (SV211, SV211K) or four (SV411, SV411K) PCs from one PS/2 mouse, PS/2 keyboard, and VGA monitor • Provides keyboard and mouse emulation to prevent boot-up errors • Supports hot-plugging... -
Page 5: Installation
2. Plug your PS/2 keyboard into the purple mini-DIN-6 port on the switch. On the SV211 and SV211K, the keyboard port is located on the back of the switch. On the SV411 and SV411K, the keyboard port is located on the right side of the switch. -
Page 6: Using Your Kvm Switch
Using Your KVM Switch The LEDs on the switch indicate which PC is active. You can scroll between PCs by either pressing the push-button on the top of the switch or by using a hotkey command. A hotkey command is a short sequence of keystrokes beginning with two left Ctrl keystrokes followed by another keystroke. -
Page 7: Troubleshooting
Keyboard Typematic Rate: Command Hotkey Sequence Adjust Typematic Rate Left Ctrl + Left Ctrl + F4 The keyboard typematic rate set on the KVM will over-ride any typematic rate set by the PC’s BIOS or operating system. The typematic rate can be set to 10 characters/ second (represented by one beep), 15 characters/second (two beeps), 20 characters/ second (three beeps), or 30 characters/second (four beeps). -
Page 8: Specifications
PS/2 female connector Console mouse connector PS/2 female Console monitor connector HD-DB-15 female SV211, SV211K: 2.76 x 6.30 x 0.83in. (70x160x21mm) Dimensions (L x W x H) SV411, SV411K: 3.39 x 7.28 x 0.87in. (86x185x22mm) Certifications FCC, CE, VCCI Instruction Manual... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
