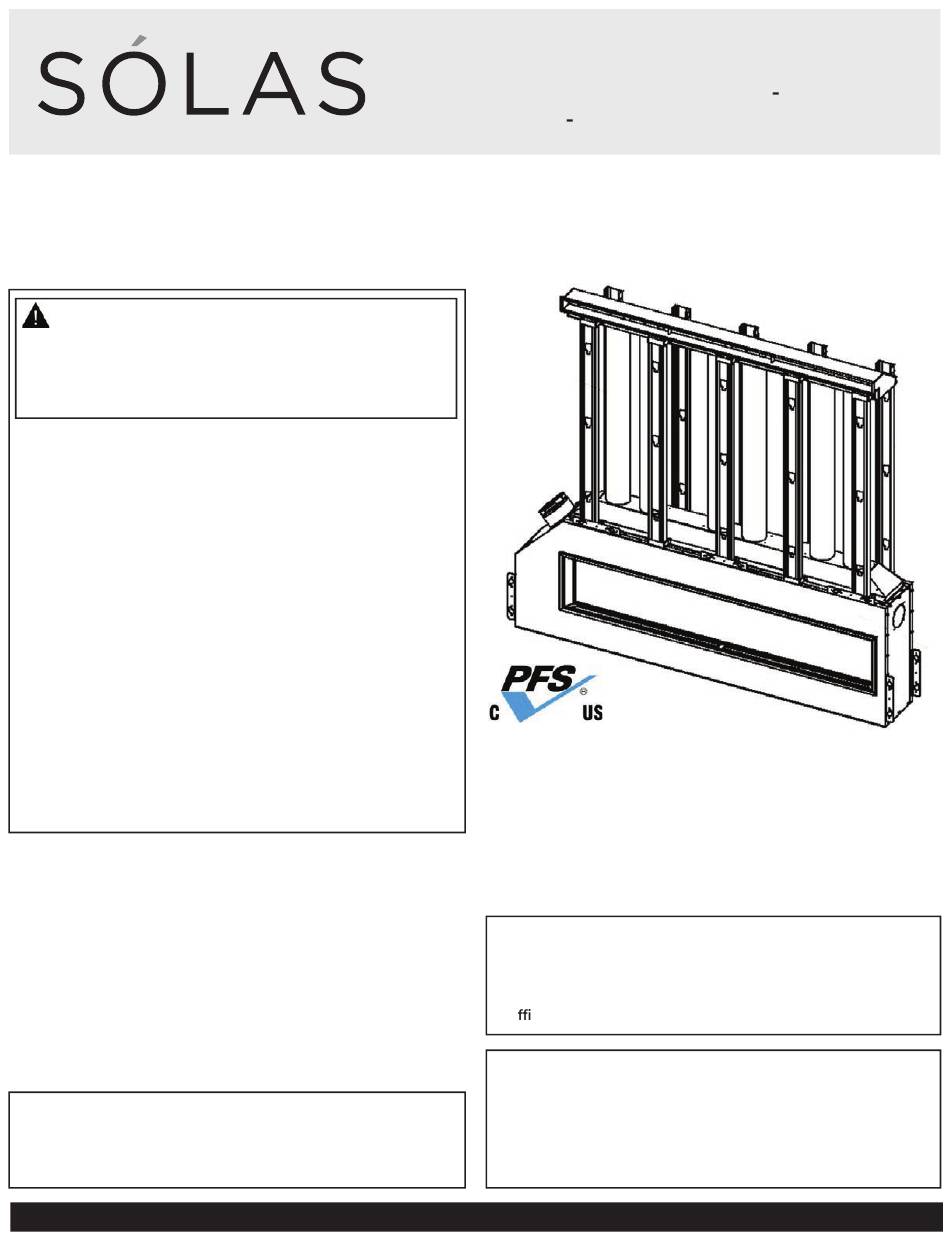

Solas BI-48-ST Supplemental Installation Manual

Cool zone for use with built-in direct-vent gas fireplaces
Hide thumbs Also See for BI-48-ST:

Advertisement

Quick Links

SINGLE SIDE MODELS*: BI-48-SSL, BI-48-SSR, BI-60-SSL, BI-60-SSR, BI-72-SSL, BI-72-SSR
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
— Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fi re
department.
— Installation and service must be performed by
a qualifi ed installer, service agency or the gas
supplier.
DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE
AND DRAPERIES.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARD OF HIGH SURFACE TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM WITH THE APPLIANCE.
DO NOT PLACE CLOTHING OR OTHER FLAMMABLE
MATERIAL ON OR NEAR THE APPLIANCE.
WARNING Improper installation, adjustment, services or
maintenance can cause injury, or property damage. Refer to
this manual. For assistance or additional information, consult
a qualifi ed installer, service agency, or gas supplier.
INSTALLER: Leave this manual with appliance | CONSUMER: Retain this manual for future reference
SUPPLEMENTAL INSTALLATION MANUAL
SEE-THRU MODELS*: BI-48-ST, BI-60-ST, BI-72-ST
*Units Manufactured with Serial Number 8467 and higher.
COOL ZONE
FOR USE WITH BUILT IN
DIRECT VENT GAS FIREPLACES
Report #F19-219
Ce manual est disponsible en Francais sur demande.
This appliance may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home, where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases, unless a certifi ed kit is used.
WARNING
DO NOT cover or place objects in front of the cool wall
plenum outlet. DISCHARGE TEMPERATURES ARE HOT!
Locate outlet plenum out of reach and away from high
tra c areas.
WARNING
Dust or particles caught in the cool zone airfl ow may
cause staining or streaking on light colored ceilings or
walls when exiting the plenum outlet. Keeping as large a
distance as possible between the outlet and the ceiling
will mitigate this issue.
solasfi res.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI-48-ST and is the answer not in the manual?

Questions and answers

Summary of Contents for Solas BI-48-ST

  • Page 1 COOL ZONE FOR USE WITH BUILT IN DIRECT VENT GAS FIREPLACES SUPPLEMENTAL INSTALLATION MANUAL SEE-THRU MODELS*: BI-48-ST, BI-60-ST, BI-72-ST SINGLE SIDE MODELS*: BI-48-SSL, BI-48-SSR, BI-60-SSL, BI-60-SSR, BI-72-SSL, BI-72-SSR *Units Manufactured with Serial Number 8467 and higher. WARNING FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
  • Page 2: Installation Record

    INSTALLATION RECORD The installer should complete the form below that describes the details of the installation. Having this written record of installation information available will greatly expedite troubleshooting should any problem arise with your stove. The installer should keep a duplicate of this form for their records.
  • Page 3: Table Of Contents

    SÓLAS LLC grants no warranty, implied or stated, for the installation or maintenance of your appliance, and assumes no responsibility for any consequential damage(s). © 2023 Copyright SÓLAS LLC. solasfires.com...
  • Page 4 Félicitations pour votre achat d’un SÓLAS ! Nous vous souhaitons la bienvenue dans la famille des foyers au gaz SÓLAS. Chacun de nos produits est habilement conçu et fabriqué de manière experte aux États-Unis. Nous sommes très fiers de chaque foyer que nous fabriquons. Chaque produit est entièrement testé...
  • Page 5: Important Safety Information

    The appliance area must be kept clear and free from combustible materials, gasoline and other flammable vapors and liquids. The flow of combustion and ventilation air must not be obstructed. Adequate accessibility clearances must be maintained for servicing and proper operation of this appliance. solasfires.com...
  • Page 6 IMPORTANT SAFETY INFORMATION Fireplace Keep Furniture and Other Objects 36" from Fireplace 36" (91.44cm) Installation and repair should be done by a WARNING: Do not operate the appliance with licensed service technician. The appliance should the glass door assembly removed, or if the glass be inspected before use and at least annually by is cracked or broken.
  • Page 7: Model Descriptions

    FORTY8 Models FORTY8 SEE-THRU FORTY8 SINGLE SIDE FORTY8 SINGLE SIDE (Left side vent exit) (Right side vent exit) MODEL NO. BI-48-ST MODEL NO. BI-48-SSL MODEL NO. BI-48-SSR (See-Thru Model can be installed with Left or Right Vent) SIXTY0 Models SIXTY0 SEE-THRU...
  • Page 8 ** Plenum Outlet Trim is required and is available in Satin Black or White, must choose one. ***The 5” Flex pipe required for this installation can be purchased from SOLAS or from a third-party supplier. Should you choose to purchase from a third-party supplier, the 5” flex used must be 2-ply thick 3003 Aluminum liner.
  • Page 9 ** Plenum Outlet Trim is required and is available in Satin Black or White, must choose one. ***The 5” Flex pipe required for this installation can be purchased from SOLAS or from a third-party supplier. Should you choose to purchase from a third-party supplier, the 5” flex used must be 2-ply thick 3003 Aluminum liner.
  • Page 10 MODEL DESCRIPTIONS Plenum Plenum Outlet Trim 5” Flex Pipe 2x4 Steel Studs (not included with Cool Zone Kit) Collector Viewing Area Trim Cool Zone Heatshield is located behind the front face of the fireplace • CZK-72-SSL shown on a BI-72-SSL, all models utilize the same basic cool zone design.
  • Page 11: Certification

    CERTIFICATION This appliance has been certifi ed by PFS TECO to ANSI Z21.88- elevation greater than those noted, consult with the local 2014/CSA 2.33-2014 Vented Gas Fireplace Heaters and CAN/ authority having jurisdiction for gas product installations CGA-2.17-M91 (2014), Gas-Fired Appliances for Use At High to determine their specifi...
  • Page 12: Specifications

    SPECIFICATIONS NOTE: Clearances below are only applicable when unit is installed with a SÓLAS Cool Zone Kit. For clearances without Cool Zone, refer to the standard product manual. COOL ZONE KIT DIMENSIONS DIMENSION DESCRIPTION FORTY8 SIXTY0 SEVENTY2 DIMENSION A (MIN Minimum Fireplace Cavity Height 61.50"...
  • Page 13: Clearances To Combustibles

    • The sheet metal face of this fireplace must be covered by a finishing material, it may not be left exposed. Combustible finishing materials are permitted. • All wiring or conduit must be a minimum of 12" (308mm) from top of fireplace and 1.5" (38mm) from Cool Zone Flex Pipe. solasfires.com...
  • Page 14 CENTERING DIMENSIONS FOR COOL ZONE Clearances to Combustibles: Top and Sides: 4”, Bottom: ⁄ ” Please note: Single sided models can be ordered with left or right side venting READ INSTALLATION MANUAL BEFORE INSTALLATION Dimension Dimension Description FORTY8 SIXTY0 SEVENTY2 “AA”...
  • Page 15 • The combustible area above the viewing area must not protrude more than ¾ (19mm) from the facing; if it does, it is considered a mantel and must meet the mantel requirements above. solasfires.com...
  • Page 16: Installation Information

    INSTALLATION INFORMATION WARNING Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage, or loss of life. Operation of improperly installed or maintained venting system could result in serious injury, property damage, or loss of life.
  • Page 17: Installation

    2. Install the “Collector” in place of the “Can Top Blanking Plate”, secure using the #10 screws saved from step #1. Collector 3. Remove the back of the double-sided tape and a x viewing area trim around the fi replace viewing area. solasfi res.com...
  • Page 18 INSTALLATION 4. The 2x4 steel studs (not included) will be installed next. The stud length, dimensions “H” on page #10 can be calculated using either of the following equations: English (inches): H = A – 31.375 Metric (millimeters): H = A - 797 * Refer to page 11 for dimensions “A”...
  • Page 19 * Refer to step 3 for dimension “H” referenced in the above equations. 7. Once the duct length has been calculated, stretch the ducts to the length calculated in step #5 and secure to the collector using the 5” hose clamps provided. solasfi res.com...
  • Page 20 INSTALLATION INFORMATION 8. Install the plenum as shown below, the front studs NOTE: DO NOT SCREW INTO THE FACE OF THE FIREPLACE. will be inserted into the plenum stud brackets until they make contact with the plenum (as shown in “Detail B”).
  • Page 21: Warranty Information

    90 days of the date of failure. Notices should be or application of the Product. directed to the SÓLAS Warranty Department. Visit our website at www.solasfires.com/ warranty. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise is normal and not a defect, and, therefore, not covered under warranty.
  • Page 24 We recommend that our gas hearth products be installed and serviced by professionals who are certifi ed in the U.S. by the National Fireplace Institute® (NFI) as NFI Gas Specialists. www.NFIcertifi ed.org RECORD YOUR PRODUCT INFORMATION Model #: ________________________ Serial Number: ______________________________ D te Purch sed: __________________ Date Installed: _______________________________ THANK YOU FOR CHOOSING solasfires.com...
