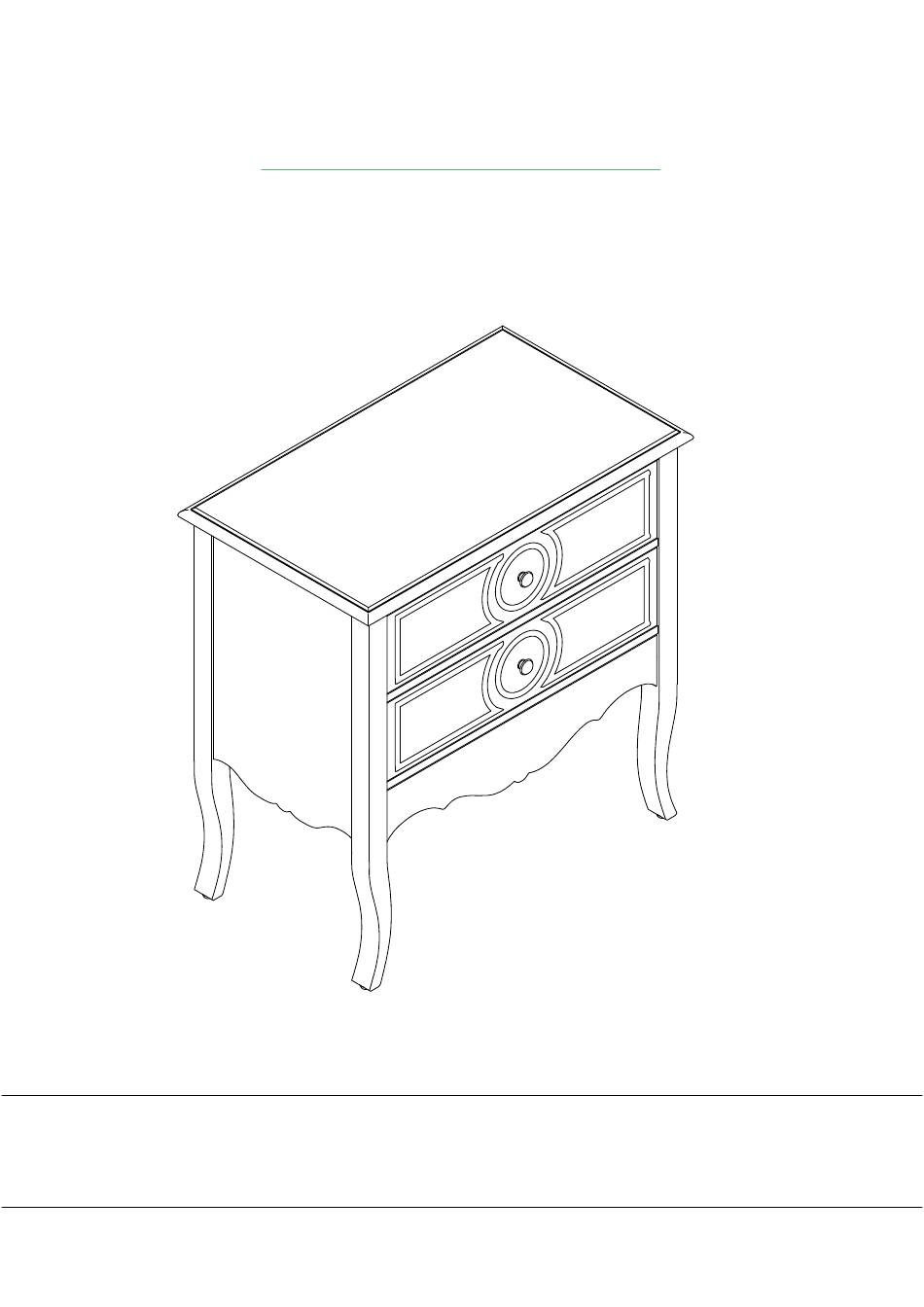

- Page 1 HULALA ITEM NO.NSPZ0916 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/26...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/26... -
Page 4: Parts List
PARTS LIST 04/26... - Page 5 PARTS LIST 05/26...
-
Page 6: Hardware List
HARDWARE LIST Ø 5/32''*1-1/4” Ø 8*1-1/4” Ø3.5*15mm Ø8*1” Ø3.5*15mm Ø3.5*35mm Ø3.5*16mm TOOL LIST HARDWARE SPARE LIST 06/26... - Page 7 ASSEMBLY INSTRUCTIONS STEP-1 1.Insert part (D) into part (E),make sure all holes align Insert panel (F ＆ D&E) into panel (C),make sure all holes aligned and then tighten it with allen key #13 as picture show. D&F 07/26...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 Insert panel (H ＆ G) into panel (C),make sure all holes aligned and then tighten it with allen key #13 as picture show. 08/26...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 1.Insert side panel ( B ) into the corresponding hole of preassembled step 2 ， make sure all holes aligned and use allen key #13 to tighten it as picture show. 09/26...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4 insert back panel (I) into the groove of preassembled step 3,make sure all holes aligned and use screw#1 to attach them ，tighten screw #1 with screwdriver #1 #1 10/26...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-5 insert part (J) into the preassembled step 4,make sure all holes aligned and use screw#2 to attach them ，tighten screw #2 with screwdriver 11/26...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6 insert part #7 into the preassembled step 2,make sure all holes aligned and use screw #3 to attach them ，tighten screw #3 with screwdriver 12/26...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 1.Insert top panel (A ) into the corresponding hole of preassembled step 6 ， make sure all holes aligned and use allen key #13 to tighten it as picture show. 13/26...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8 Attention: Before the next step, adjust the feet of the locker to keep it level. 14/26...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9 1.Connect part (L&M) to part N using screw #4 and tighten it with screwdriver #14. Slide in the part (O) into the groove in part (L&M). make sure they are also in groove in part (N). 15/26...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10 and tighten it with Connect the (K) connection (L&M) using screw #4 , screwdriver #14. Use screw #6 to attach the handle #5 to panel K, tighten screws with screwdriver #14. 16/26...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11 17/26...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12 1.Connect part (P&Q) to part N using screw #4 and tighten it with screwdriver #14. Slide in the part (R) into the groove in part (P&Q). make sure they are also in groove in part (N). 18/26...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13 and tighten it with Connect the (K) to part (P&Q) using screw #4 , screwdriver #14. Use screw #6 to attach the handle #5 to panel K, tighten screws with screwdriver #14. 19/26...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 1.Connect part (T&U) to part V using screw #4 and tighten it with screwdriver #14. Slide in the part (R) into the groove in part (T&U). make sure they are also in groove in part (V). 20/26...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-15 and tighten it 1.Connect the (S) connection (T&U) using screw #4 , with screwdriver #14. 21/26...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-16 22/26...
- Page 23 ASSEMBLY INSTRUCTIONS #10 x2 STEP-17 Use screw #10 to attach part #12 to pre-assemble unit at step 16 , tighten screws with screwdriver #14 23/26...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-18 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part#12 on the of side panel (B&C); Drill and insert the expandable screw by hammer. Assemble the part #12 to the wall. Align the hole in the part #12 with the expandable screw #8 , use screw #9 to attach it and tighten by screwdriver#14.
- Page 25 ASSEMBLY INSTRUCTIONS #11 x2 STEP-19 1.Let the plastic belt #11 pass through the both part #12 and pull tightly. #11x2 #11x2 25/26...
-
Page 26: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
