HULALA
H
O
M
E
ITEM NO.NSYL0821
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the NSYL0821 and is the answer not in the manual?

Questions and answers

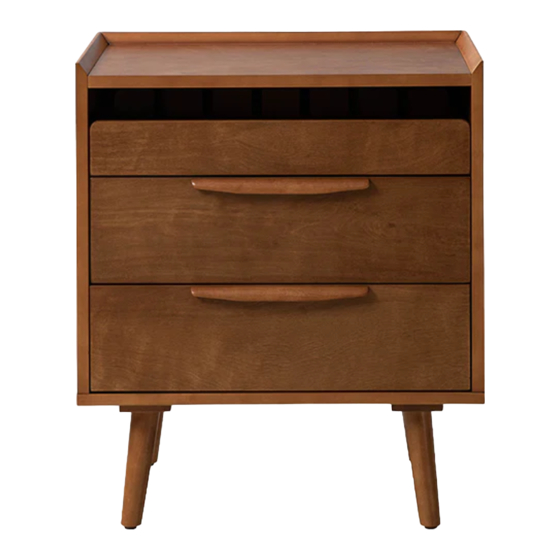

Summary of Contents for HULALA HOME NSYL0821

  • Page 1 HULALA ITEM NO.NSYL0821 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/22...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PERSONENS 03/22...
  • Page 4: Parts List

    PARTS LIST 1 04/22...
  • Page 5 PARTS LIST 2 05/22...
  • Page 6: Hardware List

    HARDWARE LIST 3*16mm 6*25mm 3*25mm ∅ 3*12mm ∅ ∅ ∅ 8*4*1-1/2 ∅ 3*16mm #13 x2 #14 x4 3*12mm 4*22mm ∅ ∅ TOOL LIST HARDWARE SPARE LIST ∅ 3*16mm ∅ 6*25mm ∅ 3*25mm 06/22...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP-1 and lock 1. connect (C&D) to (A&E) to ensure the holes are aligned, the hardware.as the picture shows. A&E Unlocked Locked A&E 07/22...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-2 and lock the 1.connect (B) to (C&D) to ensure the holes are aligned, hardware.as the picture shows. Unlocked Locked 08/22...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-3 part #3 1.Insert the into the corresponding hole (F) by hand. Attach back panel (F) to pre assembled unit at step 2 with screw #1,and tighten it with screwdriver #17. ∅ 3*16mm 09/22...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-4 Attach the leg (G) to the pre-assembled unit in step 3 with #2 bolt and tighten with a #16 allen key. ∅ 6*25mm 10/22...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-5 Attention: Before the next step, adjust the feet of the locker to keep it level. 11/22...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-6 Connect socket #11 to part J using screw #13. and tighten it with screwdriver #15.Connect part (H&I) to part J using screw #4 and tighten it with screwdriver #17. #13 x2 ∅ 3*25mm ∅ 3*12mm 12/22...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-7 1.Slide in the part (L) into the groove in part (H&I). make sure they are also in groove in part (J).Connect the (M) connection (H&I) and tighten it with screwdriver #17. using screw #4 , ∅ 3*25mm 13/22...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-8 Attach the part (K) to the pre-assembled unit in step 7 with #10 screw , and tighten it with screwdriver #17. ∅ 3*16mm 14/22...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-9 As shown in the picture, first insert the plug into the hole on the back panel and then install the drawer!!!! Attention : When installing the drawer , slide the steel ball slide rail of side panel to the most front as picture show .
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-10 Attention : Fasten the part to the red mark on the wire with screws ∅ 3*16mm ∅ 3*12mm 16/22...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-11 1.Connect part (N&O) to part (P) using screw #4 and tighten it with screwdriver #17.Slide in the part (Q) into the groove in part (N&O) . make sure they are also in groove in part (P). 3*25mm ∅...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-12 1.Connect the (R) connection (N&O) using screw #4 , and tighten it with screwdriver #17. 2.1.Use screw #14 to attach the part S to panel R, tighten screws with screwdriver #17. & #14 x4 ∅ 4*22mm ∅ 3*25mm 18/22...
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-13 Attention : When installing the drawer , slide the steel ball slide rail of side panel to the most front as picture show . 19/22...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-14 back panel (F) 1.Attach plastic strap #6 to using screw #1 and flat washer #7 , tighten screw with screwdriver #17. #1 #7 ∅ 3*16mm 20/22...
  • Page 21 ASSEMBLY INSTRUCTIONS 8*4*1-1/2 NOT PROVIDED STEP-15 1.Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of plastic belt #6 on the back of panel (F); Drill and insert the expandable screw #9 by hammer. 3.Assemble the plastic belt #6 to the wall.
  • Page 22: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
