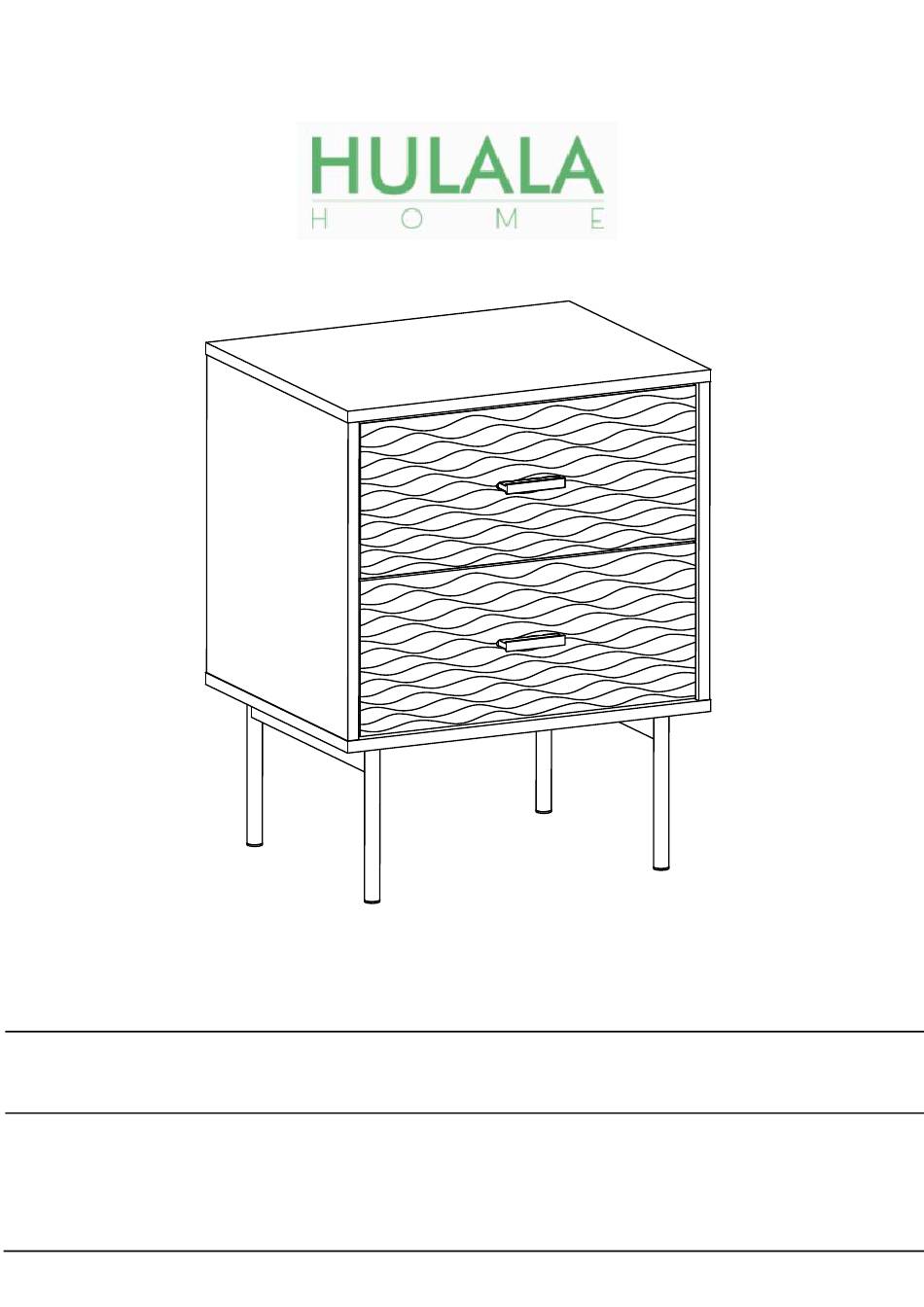

- Page 1 ITEM NO. NSSD0729 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 1/16...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat. Do not clean furniture with harsh cleansers or polish. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 PARTS LIST 2 x1 1 x1 3 x1 5 x1 4 x1 6 x2 7 x2 8 x2 9 x2 10 x2 12 x2 13 x1 11 x1 3/16...
- Page 4 OVERVIEW...
- Page 5 HARDWARE LIST M6*35mm 15mm M7*50mm 8*30mm 3.5*14mm 4*35mm M6*40mm M6*50mm M4*18mm SPARE Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment.
- Page 6 ASSEMBLY INSTRUCTIONS Preparing the part 6. 1) Aligh the hole in part 6; 2) Screw in the cam bolt A and tighten by screwdriver. 3) Align the hole in part J to the hole in part 6 as the picture show, then screw in the screw O from the part 6 towards part J, tighten by screwdriver.
- Page 7 Installing the part 10 1) Align the grooves in part 7,8 and 9; then 2) Insert and slide the part 10 into the grooves completely. Connect the part 6 to the finished part in step 3, and preparing the part 1 after . 1) Align the hole in part 7, 8;...
- Page 8 Preparing the part 1. 1) Aligh the hole in part 1. 2) Insert the wooden towel D into the pre-drilled hole by hand; 3) Screw in the cam bolt A and tighten by screwdriver. Preparing the part 3 and 4. Align the hole in part 3 and 4, screw in the cam bolt A and tighten by screwdriver M6*35mm...
- Page 9 Install part 5 1) Align the groove in part 1, 3,4. 2) Insert and slide the part 5 into the above groove completely M7*50mm Install the part 2 1) Align the hole in part 3, 4,insert the wooden dowel D into 8*30mm the predrilled hole by hand aspicture show.
- Page 10 Preparing the legs. 1) Align the hole between part 12 and part 13 as the picture show. 2) Screw in the screw K and fully tighten by Allenkey P. M6*40mm Install the leg to the finished part in step 8 1) Align the hole in part 12 to the hole in part 2, 2) Screw in the screw L with washer M and fully 100%...
- Page 11 Install the drawer into the cabinet. 1)Move the slider-part in female metal slider to the open-end of cabinet as above middle picture show; then 2) Align the male metal slider in part 7, 8 to the female metal slider in part 3,4, insert the male metal slider into the slider-part of female metal slider slowly for both at the same time, then push forward when be sure they are all in position.
- Page 12 Installing part F and Q 1) Insert the part F into the position between 1,2,3,4 and part 5 as the picture show, then screw in the screw E and tighten by screwdriver. 2)Align the hole in part Q to the part 1 as the picture show, then screw in the screw E and fully tighten byscrewdriver.
- Page 13 Installing the ANTI-COLLAPSE DEVICE 1) Mark the position on the wall( the height must be same to the height of part Q on the back of cabinet, part Q finished in step 12); 2) Use driller dig a hole(driller must be 0.315in), then push the part I into the wall by hammer(not provided) till it even with wall;...
- Page 14 STEP 14 your cabinet is ready to use. Assembly completed 14 6...
-
Page 15: Warranty
WARRANTY We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement... - Page 16 Are you having difficulty with assembly? Missing parts? Please send email with your order No customerservice@hulalahome.com For return, Please check the return policy with the retailer or MarketPlace you bought from. Appreciated your purchasing from us. Pop up your life by our furniture piece! 16/16...
