Vulcan-Hart VELT20 Specifications

SPECIFICATIONS:

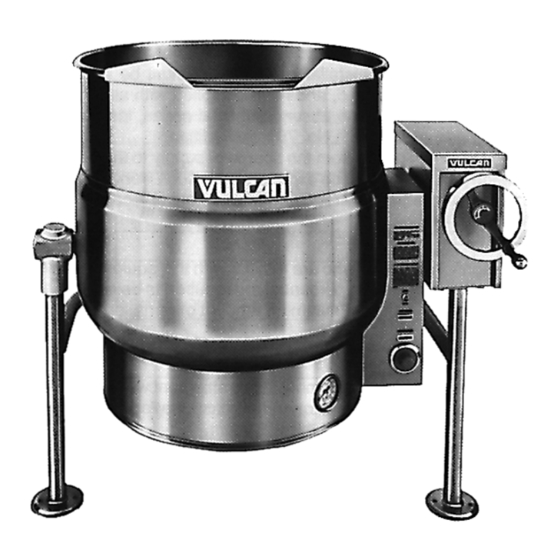

Electric, self-contained, stainless steel,
tilting steam kettle, Vulcan-Hart Model No. ___________. Fully
welded hemispheric bottom kettle with type 304 stainless steel
jacket and lining (316 stainless steel liner, 20, 30 & 40 gallon).
Jacket tested to 50 psi (3.4 kg/cm
self locking tilt mechanism. Kettle tilts forward 90° to completely
empty. Tubular stainless steel legs with flanged feet. Controls
enclosed in stainless steel housing include a power switch,
thermostat, power "on" light, vacuum/pressure gauge, pressure
relief valve and low water signal light. Elements are field replace-
able. Requires 208 or 240 volts, 60 Hz, 3 phase.
NSF listed. U L listed. Meets ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31644 (10-03)
2 / jacketed floor mounted
3
2 ). Stainless steel enclosure for
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
VELT SERIES
ELECTRIC FLOOR MOUNTED
2
TILTING / JACKETED KETTLE
3
VELT20 12 KW, 20 gallon capacity
VELT30 15 KW, 30 gallon capacity
VELT40 18 KW, 40 gallon capacity
VELT60 18 KW, 60 gallon capacity
VELT80 18 KW, 80 gallon capacity
VELT100 24 KW, 100 gallon capacity
STANDARD FEATURES
Electric, self-contained stainless steel,
mounted tilting steam kettle.
Fully welded hemispheric bottom kettle with type
304 stainless steel jacket and lining. (316 stainless steel liner
for 20, 30 & 40 gallon models.)
Stainless steel enclosure for self locking tilt mechanism.
Kettle tilts forward 90° to completely empty.
Tubular stainless steel legs with flanged feet.
Faucet bracket.
Controls enclosed in stainless steel housing include a power
switch, thermostat, power "on" light, vacuum/pressure gauge,
pressure relief valve and low water signal light.
Elements are field replaceable.
Requires 208 or 240 volts, 60 Hz, 3 phase.
One year limited parts and labor warranty.
OPTIONS
Spring assist cover (20 - 40 gallon).
2" compression draw-off valve with perforated strainer.
3" compression draw-off valve with perforated strainer.
Correction facility package:
a. Security type tamper resistant fasteners with tack welds.
b. Controls protected by lockable cover.
c. Stainless steel step cover over draw-off valve with chain.
d. Type 316 liner (60 - 100 gallon).
Stainless steel receiving pan support.
Single phase, 12 or 15 KW.
24 KW elements (40, 60 & 80 gallon models only).
33 KW (60, 80 & 100 gallon models only).
480 volts, 60 Hz, 3 phase.
Second year extended limited parts and labor warranty.
ACCESSORIES
Lift-off cover.
Contour measuring strip.
Perforated stainless steel basket assembly (single - 20 gal.)
(triple - 20 through 100 gallon).
Clean-up kit, includes draw-off brush with 36" handle and
paddle scraper with 40" handle.
Stainless steel 48" whip.
Solid disk.
18" double jointed single pantry faucet.
18" double jointed double pantry faucet.
Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
Double pantry washdown hose with backflow preventer.
Double pantry pot filler with backflow preventer.
C.S.I. Section 11420
